Transformer Tester
>

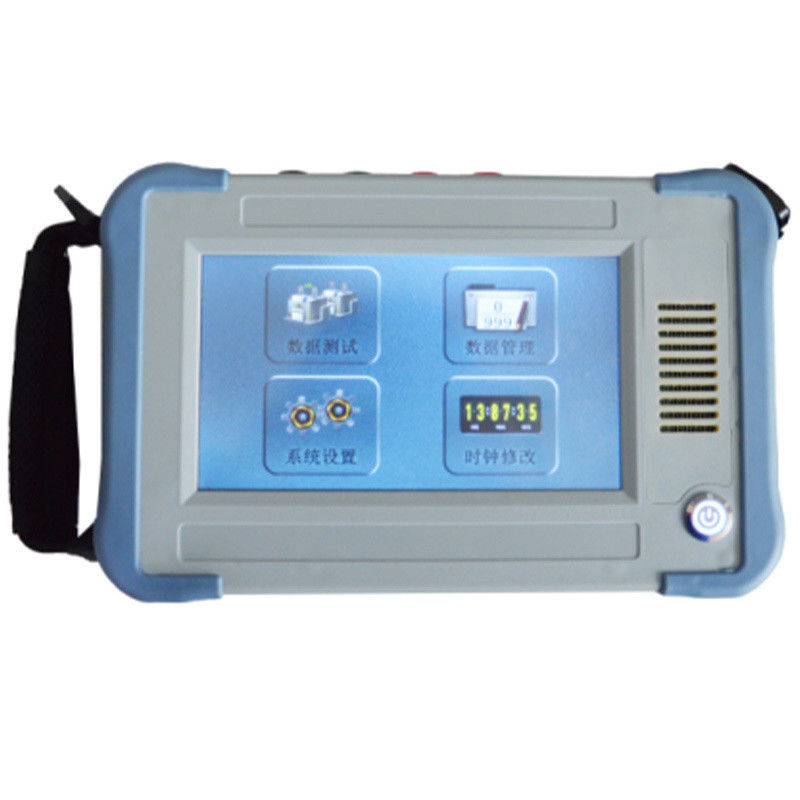

Large Screen Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation

Large Screen Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: CE, ISO
Model Number: XHZ1010
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
CE, ISO
Model Number:
XHZ1010
Model NO.:
XHZ1010
Power:
Electricity
Customized:
Customized
Color:
Black
Degaussing Current:
Auto<20mA 40mA 200m A1a 5A 10A
Display:
Seven-Inch Touch Color LCD
Data Storage:
1000 Groups
Relative Humidity:
<90%Rh, No Condensation
Power Supply:
AC 220V±10V, 50Hz±1 Hz Fuse 2A
Maximum Power Consumption:
200W
Customization:
Available
Weight:
Main Unit: 2 Kg Line Box:8kg
Warranty:
1 Year
Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Supply Ability:
1000 PCS/Year
Product Description



Large Screen Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation



Product Description


Transformer DC resistance is a must-test item for semi-finished products and finished products in transformer manufacturing, factory testing, installation, overhaul, after changing the tap changer, handover test and preventive test of the power department. In order to meet the need for rapid measurement of transformer DC resistance, our company has developed the XZH1010SC handheld DC resistance tester. This instrument adopts new power supply technology and has the characteristics of small size, light weight, large output current, good repeatability, strong anti-interference ability, and complete protection functions. The whole machine is controlled by a high-speed microcontroller, has a high degree of automation, and has automatic discharge and discharge alarm functions. The instrument has high testing accuracy and is easy to operate, and can quickly measure the direct resistance of the transformer.





Detailed Photos
Large Screen Display Handheld DC Resistance Tester 10A Factory Customizable
Product Parameters





Test current <20mA 40mA 200mA 1A 3A 10A
Measuring range 100Ω-50KΩ 1Ω-200Ω 100mΩ-50Ω 10mΩ-10Ω 5mΩ-3Ω 0.5mΩ~0.2Ω
Accuracy ±(0.5%+2words) ±(0.2%+2 words)
Min resolution 0.1μΩ
Operation method Touch screen operation
Dimensions Host: 252*160*65(mm)        Outer box: 425*335*210(mm)
Weight Host: 2KG                                                     Outer box: 8KG
Battery specifications 14.8V   5200mAh
Test lead length Standard 5 meters length can be customized



Packaging & Shipping



Large Screen Display Handheld DC Resistance Tester 10A Factory Customizable






Company profile





XZH TEST is a professional cable fault detection equipment manufacturer. We are a young team. Our development philosophy is humanized management, intelligent cloud-based products, and internationalized operations. Our development mission is to make electrical equipment free from undetectable failures.



Since its inception in 2013, our company has grown to become one of the largest manufacturer of underground cable fault detection equipment in China. An ISO 9001 and CE certified company, we produces a broad range of testing equipment.



What we can do



We have the ability to innovate new products and technologies.



We can provide complete system solutions for your project.



We provide online and offline practical and theoretical training.



We provide instrument repair and calibration.

Large Screen Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation 2Large Screen Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation 3Large Screen Display Handheld DC Resistance Tester 10A Relative Humidity No Condensation 4


Large Screen Display Handheld DC Resistance Tester 10A Factory CustomizableLarge Screen Display Handheld DC Resistance Tester 10A Factory Customizable






FAQ



1. Are you a trading company or a manufacturer?

We are a professional manufacturer with more than 10 years of experience. We can strictly control the quality of parts and finished products.



2. What is the delivery time and inventory?

If our best-selling products are in stock, it will be 5-8 working days for shipment. But for mass production and customized production, the time will take 2-4 weeks.



3. What are your payment terms?

Payment ≤ USD 2000, 100% T/T prepayment. Orders over USD 2000 can be negotiated.



4. How long is your product warranty?

We provide 1 year warranty for the equipment.



5. How do you ensure quality?

The product links include R&D, manufacturing, commissioning and technical support, following strict and scientific management principles. Therefore, we can support strong production and R&D capabilities, and can produce high-quality products at competitive prices to meet customers' high requirements.



6. What support can I get?

We will provide training support, marketing support, technical support and supply chain support. You can contact us for more information.



7. Where is your factory? Can I visit your factory?

We are located in Xi'an, Shaanxi, China. We are close to Xi'an Xianyang International Airport, which is about 2 and half hours by plane from Shanghai and Guangzhou. All customers from all over the world are welcome to visit us.



8. How to become your dealer?

Every company interested in power system instruments can contact us without hesitation, including website letters, emails, telephones, etc. We will contact you quickly according to your company information and cooperation intentions.
