Transformer Tester
>
Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester for Customization

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester for Customization

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO
Model Number: XHYY100
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO
Model Number:
XHYY100
Model NO.:
XHYY100
Appliance:
Transformer Insulation Oil Tester
Voltage Accuracy:
(2% Reading + 2 Digits)
Output Voltage:
0-100kv
Supply Ability:
1000pieces/Year
Customization:
Available
Warranty:
12 Months
Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Supply Ability:
1000 PCS/Year
Product Description


Product Description



This 100kV insulation oil dielectric strength tester is a high-accuracy instrument carefully developed by all scientific research and technical personnel of our company in accordance with the relevant provisions of the national standard GB507-1986 and the industry standard DL/T846.7-2004, giving full play to their own advantages, through many field tests and long-term unremitting efforts. degree, fully digital industrial instruments. In order to meet the needs of different users, this series of instruments can be divided into single-cup, three-cup and multi-cup models. The instrument is easy to operate and beautiful in appearance. Due to the use of fully automatic digital microcomputer control, the measurement accuracy is high, the anti-interference ability is strong, and it is safe and reliable.

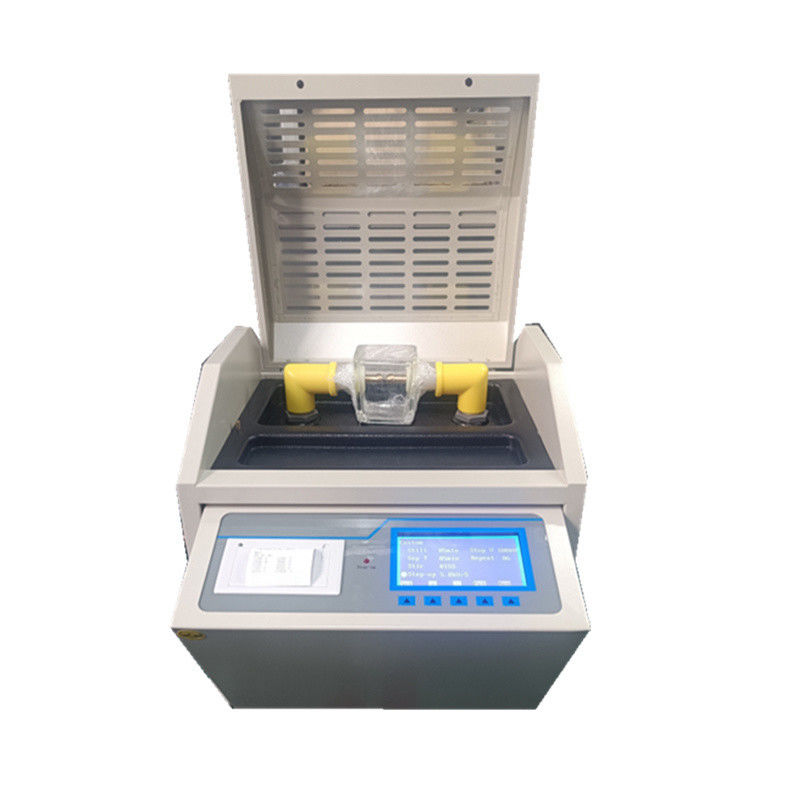

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester



Product Features

1. The instrument is controlled by a large-capacity microcontroller and works stably and reliably;

2. The instrument is equipped with a wide range watchdog circuit to prevent crashes;

3. Multiple operation options. The instrument program is equipped with two national standard methods GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156 and customized operations, which can adapt to the various choices of different users;

4. The instrument oil cup is cast in one step using special glass, which eliminates interference phenomena such as oil leakage;

5. The unique high-voltage side sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding errors caused in the analog circuit and making the measurement results more accurate;

6. The instrument has over-current, over-voltage, short-circuit and other protection functions inside, and has strong anti-interference ability and good electromagnetic compatibility;

7. Portable structure, easy to move, easy to use indoors and outdoors.

Product Parameters



Booster capacity  1.5 kVA

Boost speed:

0.5kV/s-5.0kV/s (increase every 0.5) ten levels optional Error 0.2kV/s

Output voltage 0~100 kV (adjustable)
Voltage accuracy (2% reading + 2 digits)
Power distortion rate   <1%
Electrode gap Standard 2.5 mm
Test times 6 times (1-10 times optional)
Rest time

900S (0-5900S optional)

Interval stationary time

300S (0-5900S optional)

 Stirring time

15S (0-250S optional)
Display mode:

Large screen LCD English character display
Dimensions

 length 430 mm; width 350 mm; height 370 mm


Conditions of use
1. Ambient temperature 0~40ºC
2. Relative humidity ≤ 85%
3. Working power AC 220V ± 20%
4. Power frequency 50 Hz ± 5 Hz
5. Power consumption <200 W



Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester

Illustration of operating steps

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester
Plug in the power cord, turn on the power switch, and the LCD screen will display the startup page (Figure 1)


Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester
Under the page in Figure 1, press the Settings key to enter the next level page (Figure 2);

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester
On the page in Figure 2, press the Select key to move the cursor to GB1986, and press the Confirm key to enter the GB 1986 setting subpage (Figure 3).

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester
On the page in Figure 2, press the Select key to move the cursor to GB2002, and press the Confirm key to enter the GB 2002 setting subpage (Figure 4).

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester
In the page of Figure 2, press the Select key to move the cursor to the time setting, and press the Confirm key to enter the time setting sub-page (Figure 5).

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester
On the page shown in Figure 2, press the Select key to move the cursor to Custom Settings, and press the Confirm key to enter the Custom Settings subpage (Figure 6);

Transformer Tester 100kv Insulation Oil Bdv Breakdown Voltage Tester
Each breakdown voltage value and number of cycles are automatically stored. When the test interface reaches 100KV, the LCD displays: 0. After the measurement is completed, it will display that the test is completed. Then press the Confirm key to return to the startup page (Figure 1). Press the Print or Display key to enter the storage record of each breakdown voltage value and average value of the oil cup (Figure 7).
