XHHV535-2L 35kv DC Impulse 1000j Surge Generator for Underground Cable Fault Location



Product Description

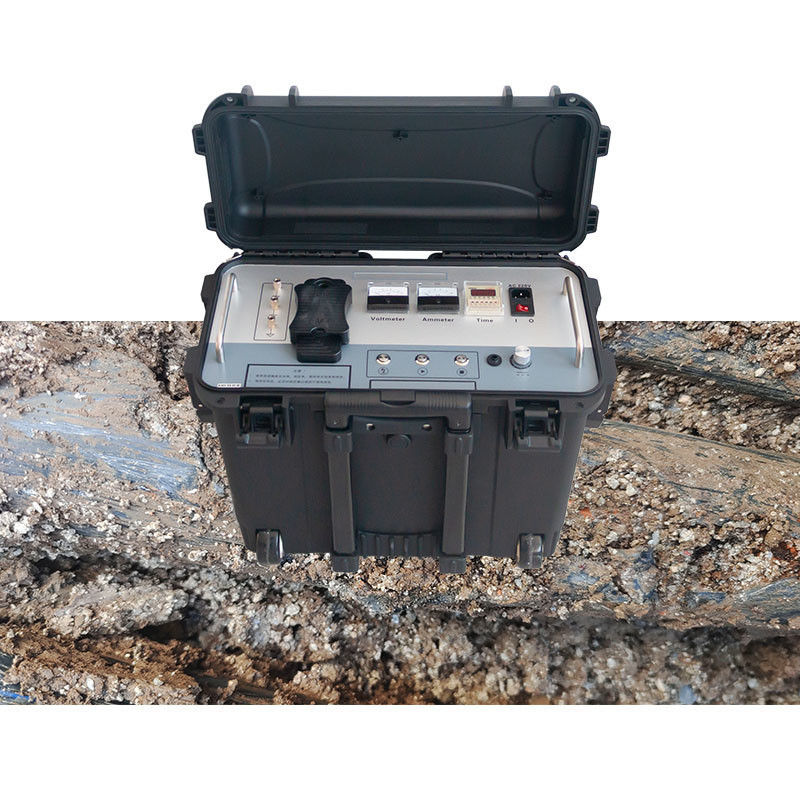

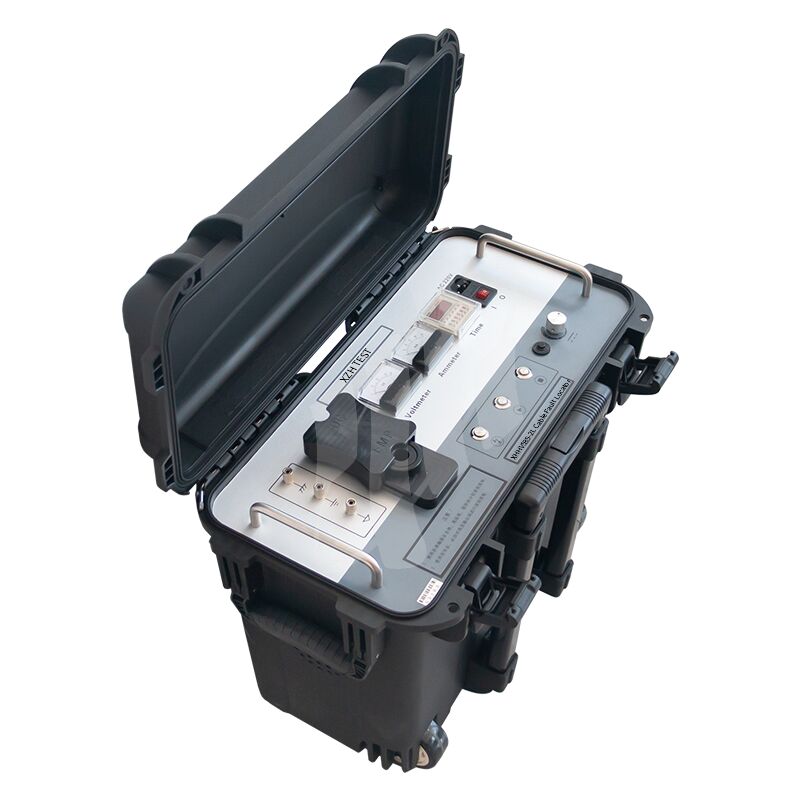

This XHHV535-2L High voltage surge generator integrates DC high voltage source, energy storage capacitor, discharge ball device, automatic discharge device, and a cart-type high-end experimental instrument.

The equipment completely solves the problems of convenience, portability, safety and reliability of traditional experimental devices. The high voltage pulse generator uses high-precision, high-stability special high-voltage electronic components and high-frequency high-voltage technology, making the whole machine simple in structure.

In order to retain people's original habit of using transformers and operating boxes to generate DC high voltage, this pulse generator adopts a humanized design operation mode and integrates a micro-reliable circuit design. It is safe, reliable and intuitive. Really achieve the effect of not being damaged by impact, and it also has the functions of automatic timing impact, manual impact and pressure resistance. It is currently the most user-friendly cart-type DC impact high-voltage equipment in China.

35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location



Product Features

★ With over-current, over-voltage, over-heat automatic protection function;
★ With DC withstand voltage, impact discharge function;
★ Uniform and controllable high-voltage pulse output;
★ Super short-circuit protection function, which can make the high-voltage output directly short-circuit to the ground;
★ It has dual 1.5-level pointer meter display for current and voltage, which is intuitive and clear, and the impact discharge process is clear at a glance;
★ High-voltage side voltage measurement, real-time and accurate;
★ With zero start protection, and potentiometer zero output function, safe and reliable;
★ Unique high-voltage measurement design, in the stopped state, the voltmeter can indicate the capacitor voltage in real time;
★ The discharge time can be arbitrarily set within an appropriate interval;
★ With emergency stop function, in case of emergency, cut off the high voltage output urgently.



Product Parameters

XHHV535-2L Portable 35kV high voltage surge generator with DC withstand voltage test funcation
Impact high voltage: 0~32kV adjustable
High voltage partial pressure voltage accuracy 2.5
 Built-in capacitor 2μF
Discharge power 0-1024J
Output voltage polarity negative polarity
Impact power 250W@peak
Overcurrent protection 8mA (more than 3 seconds)
Working power AC 220V ± 10%, 50Hz ± 2Hz(60Hz)
Output voltage polarity negative polarity
Over temperature protection 65ºC
Weight <30kg
Ambient temperature -20~+50ºC
Volumn 540L×300W×450H  mm

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location

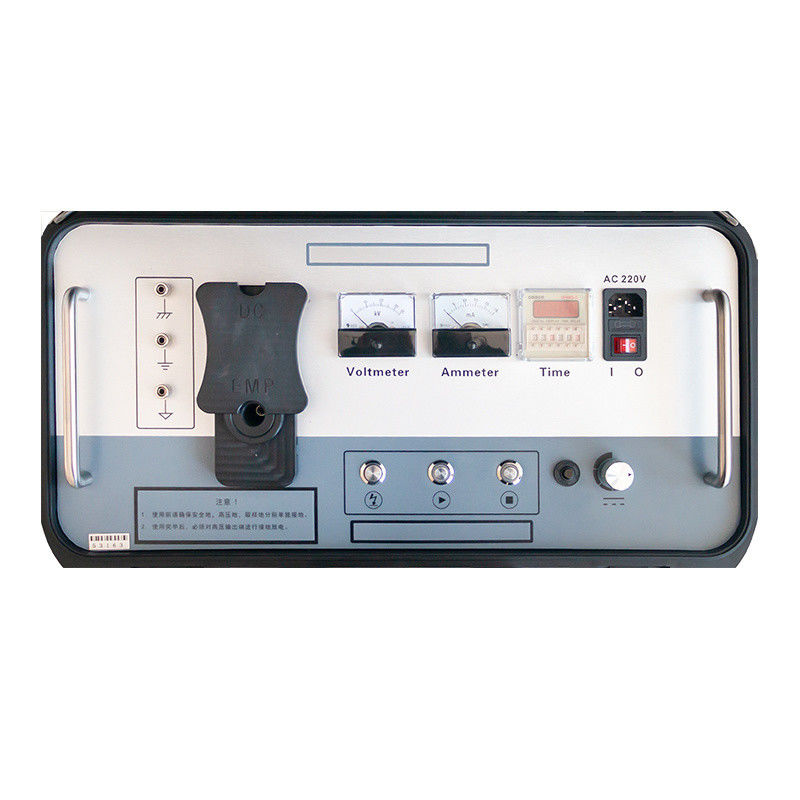

Panel function description
1. Safety ground: The ground of the instrument shell must be reliably connected to the ground in order to prevent the instrument shell from being electrified or people getting an electric shock.



2. High-voltage ground: also known as high-voltage tail, it must be reliably grounded to prevent high-voltage leakage and discharge. Poor contact may result in failure to increase the voltage, high-voltage breakdown damage to internal components of the instrument, and safety accidents caused by internal leakage or discharge of the instrument.

3. Sampling place: The negative terminal of the pulse energy storage capacitor has a high voltage and must be reliably grounded. It is used for sampling when the waveform is sampled in the high-voltage flashover state of the cable fault tester. (Sampling without high-voltage flashover still requires reliable grounding).

4. Discharge button: press this button to make contact with the ball gap, and discharge manually. (The duration of each key press cannot exceed 1s).

5.High-voltage start button: When the light of the start button is on, it means that the voltage output is in the zero state. When the light is on, the start button is valid. If the light of the start button is not on after turning on the power switch, turn the voltage adjustment knob counterclockwise until the light is on. When the start button light is on, press this button to start the device and generate high voltage output.

6. High-voltage stop button: When the test is completed or abnormality occurs, press this button to cut off the high-voltage output, the high-voltage light goes out, and the internal discharge ball stops working. When the stop button is on, it means that there is high voltage output, and when it is off, it means that there is no high voltage output.

7. Over-current protection switch: press this button, the over-current protection is turned on, and this button pops up, and the over-current protection operates. Only when this button is pressed down, there is high voltage output. After the overcurrent protection is activated, it must be turned off to discharge.

8. Voltage adjustment: After turning on the device, you must first turn the knob counterclockwise to the bottom, press the start button and then adjust clockwise to increase the output high voltage from small to large, and adjust counterclockwise to decrease the output high voltage from large to small.

9. Power switch: "Gear 1" turns on the AC 220V power supply switch, and "Gear 0" turns off the system power.

10. Fuse socket: where the fuse of the AC 220V power supply system is installed.

11. Power socket: instrument working power supply, AC 220V connection port.

12. Time setting: set the discharge time interval.

13. Ammeter: indication of the current on the low voltage side.

14. Voltmeter: High voltage output voltage indicating kV meter.

15. High-voltage output (EMP): When impacting discharge, connect the high-voltage output line.

16. High voltage output (DC): When DC withstand voltage, connect the high voltage output line.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Packing list
35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location

Application-Underground cable fault location, cable withstand voltage test
35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location


35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location
35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location



35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location

35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location



35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location

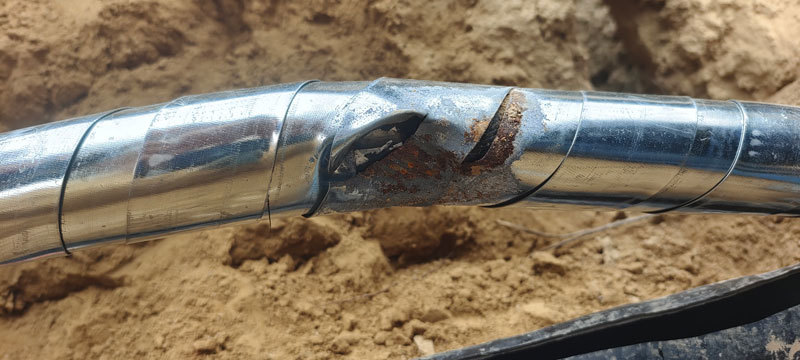

On-site Test

35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location



35kv DC Impulse 1000j High Voltage Surge Generator for Underground Cable Fault Location
