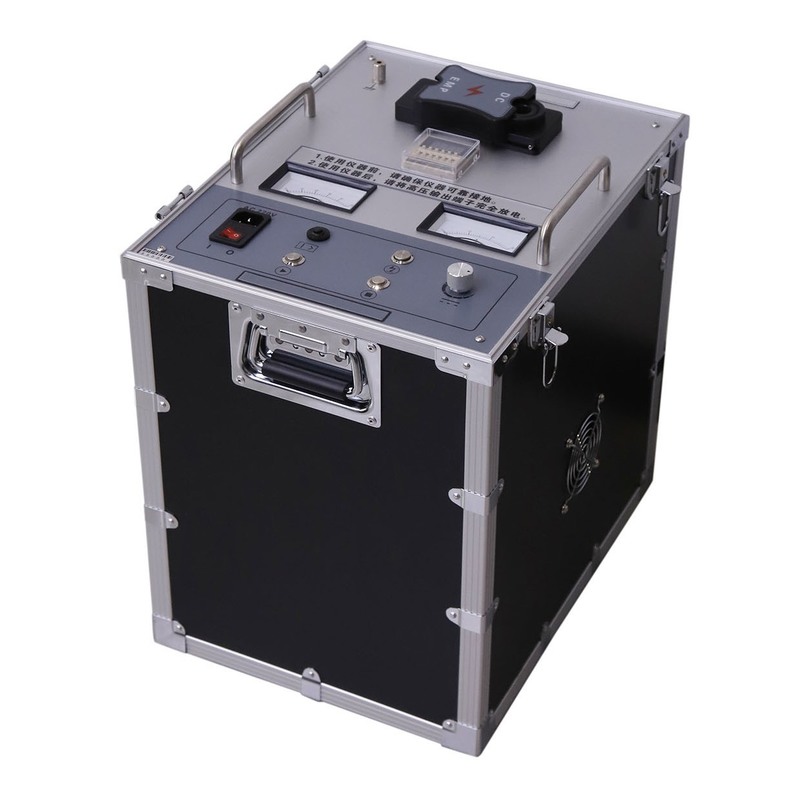

2450J High Voltage Surge Generator

Name: 2450J High Voltage Surge Generator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-4Z
Price: 15000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shaanxi
Brand Name:	XZH TEST
Certification:	CE
Model Number:	XHHV535-4Z

Detail Information

Place of Origin:

Shaanxi

Brand Name:

XZH TEST

Certification:

Model Number:

XHHV535-4Z

Highlight:

High Light

Highlight:

2450J High Voltage Surge Generator

High Voltage Surge Generator

35kV High Voltage Surge Generator

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden packaging

Payment Terms:

T/T

Supply Ability:

500 units per month

Product Description

Products Descriptio

The XHHV535-4Z high voltage pulse generator is a system used to generate DC high-voltage pulse signals and generate electrical test signals with required parameters. It is often used as an impulse high-voltage power supply for fault detection of power cables with voltage levels of 35kV and below. Its impact high voltage is 0-35KV, built-in 4μF capacitor, and the discharge energy is up to 2450J.

The XHHV535-4Z HV surge generator consists of a charging circuit and a discharging circuit. It samples the voltage of the high-voltage cable and sends it to the voltage regulator control circuit. It is usually used in high-voltage flashover fault testing and acoustic-magnetic synchronization fault point determination.

Impact high voltage	0～35Kv
High voltage partial pressure	1.5 level
Built-in capacitor	4μF
Discharge power	2450J
Impact power	400W
Over temperature protection	85℃
Volume(mm)	420L×325W×480H
Weight	not more than 40kg
Power supply	AC220V±15%, 50Hz±2Hz(60Hz can be customized)
Ambient temperature	-20～+50℃

Features

★With automatic protection functions for overcurrent, overvoltage and overheating;

★High-voltage pulse output is uniform and controllable;

★The super short-circuit protection function can make the high-voltage output directly short-circuit to the ground;

★With double 1.5-level pointer meter display of current and voltage, it is intuitive and clear, and the process of impulse discharge can be seen at a glance clear

★With zero start protection, and potentiometer return to zero output function, safe and reliable;

★Unique high-voltage measurement design, in the stop state, the voltmeter can indicate the capacitor voltage in real time; ★The discharge time can be arbitrarily set within an appropriate interval.
