Cable Fault Locator
>

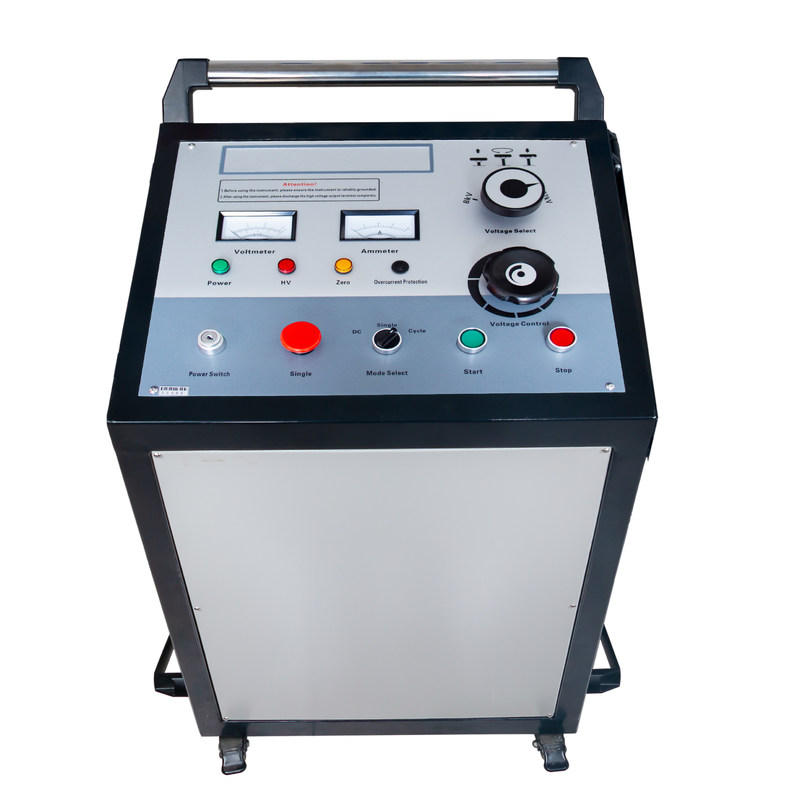

8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode
  • 8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode
  • 8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode
  • 8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode
  • 8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode
  • 8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode
  • 8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode

8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode

Product Details:
Place of Origin: Shaanxi
Brand Name: XZH TEST
Certification: CE
Model Number: XHHV535-4TS
Detail Information
Place of Origin:
Shaanxi
Brand Name:
XZH TEST
Certification:
CE
Model Number:
XHHV535-4TS
Trading Information
Minimum Order Quantity:
1unit
Price:
EXW 8200
Packaging Details:
wooden packaging
Payment Terms:
T/T
Supply Ability:
100 unit per month
Product Description
Product Description



8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode 0

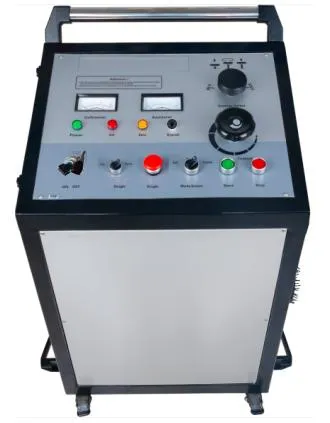

The XHHV535-4TS high voltage pulse generator can be used impulse discharge and withstand voltage test in low and high voltage cable fault test. High-precision test cable fault sampling waveform module and small transformer are installed inside, which can truly achieve the effect of not being damaged by impact, and it also has the functions of automatic timing impact, manual impact and withstand voltage test.

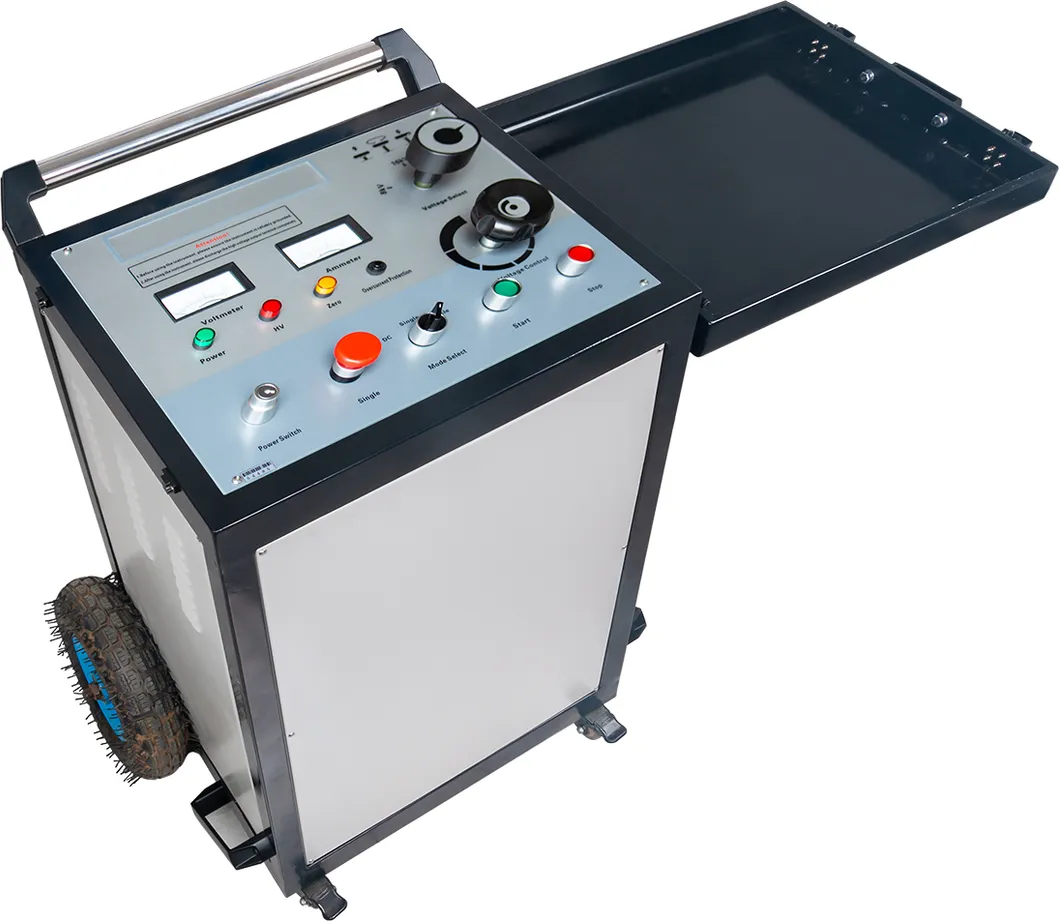

This device integrates a high-voltage DC source, an energy storage capacitor, a discharge ball device, an automatic discharge device, and a voltage level switching device into a cart-type high-end experimental instrument. It is a trolley-type high-end experimental instrument. The equipment completely solves the problems of ease of use, portability, safety and reliability of traditional experimental devices.

When the XHHV535-4TS trolley-type high-voltage pulse generator is in use, after selecting the function switch, press the start button to perform high-voltage boosting work. After use, press the stop button, and the internal system will automatically release the remaining high voltage on the accumulator.

The high voltage surge generator also has the function of zero-start protection, which can make the operation of the device more safe and reliable. It has super short-circuit protection function, which can make the high-voltage output work directly to the ground. With three-gear voltage range and capacitance capacity switching function, users can choose different equipment voltage adaption gears according to different cable voltage needs, making the test process easier.
8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode 1
Product Parameters
Impulse high voltage 0~32kV, 0~16kV, 0~8kV three gear adjustment
High voltage partial pressure 1.5 level
Built-in capacitor 4μF/32kV,16μF/16kV,64μF/8kV Adjustable three-speed adjustment
Discharge power both are 2048J
Impact power 2KVA
Output voltage polarity negative polarity
Impact time about 5 seconds for automatic impact, arbitrary control time for manual impact
Over temperature protection 85ºC
Volume(mm) 534L×444W×805H
Weight not more than 130kg
Power supply AC220V±10%, 50Hz±2Hz(60Hz can be customized)
Ambient temperature -20~+50ºC





8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode 2

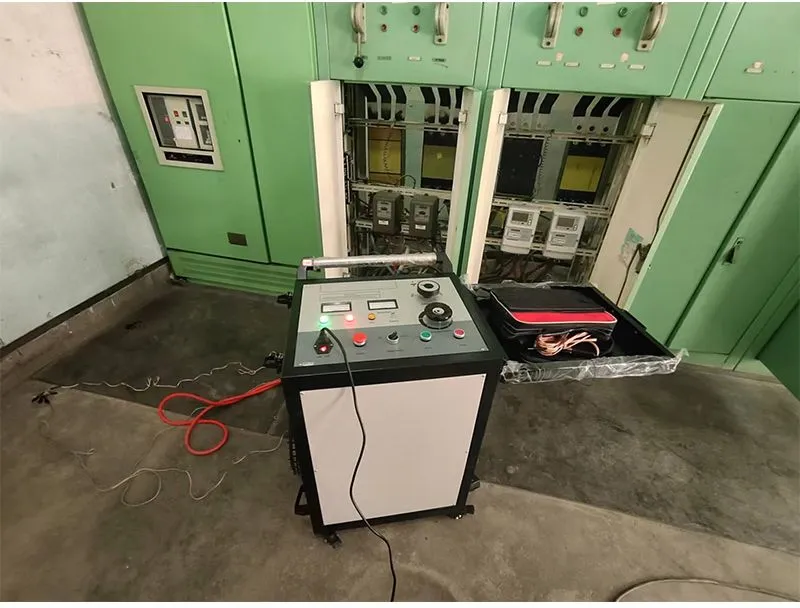

On-site test
8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode 3
8/16/32kV selectable high voltage pulse generator with DC/Single/Cycle discharge mode 4
