Cable Fault Pinpointer Electronic Flashover Detection and Accurate Location

Name: Cable Fault Pinpointer Electronic Flashover Detection and Accurate Location
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503C
Price: 4,175.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHDD503C

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHDD503C

Product Name:

Cable Fault Locator

Application:

Widely

Channel Gain:

8 Adjustable

Magnetic Channel Gain:

8 Adjustable

Output Gain:

Output Gain

Output Impedance:

350Ω

Highlight:

High Light

Highlight:

Cable Fault Pinpointer with shock discharge

Electronic flashover detection pinpointer

Accurate cable fault location tool

Trading Information

Minimum Order Quantity:

1 set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

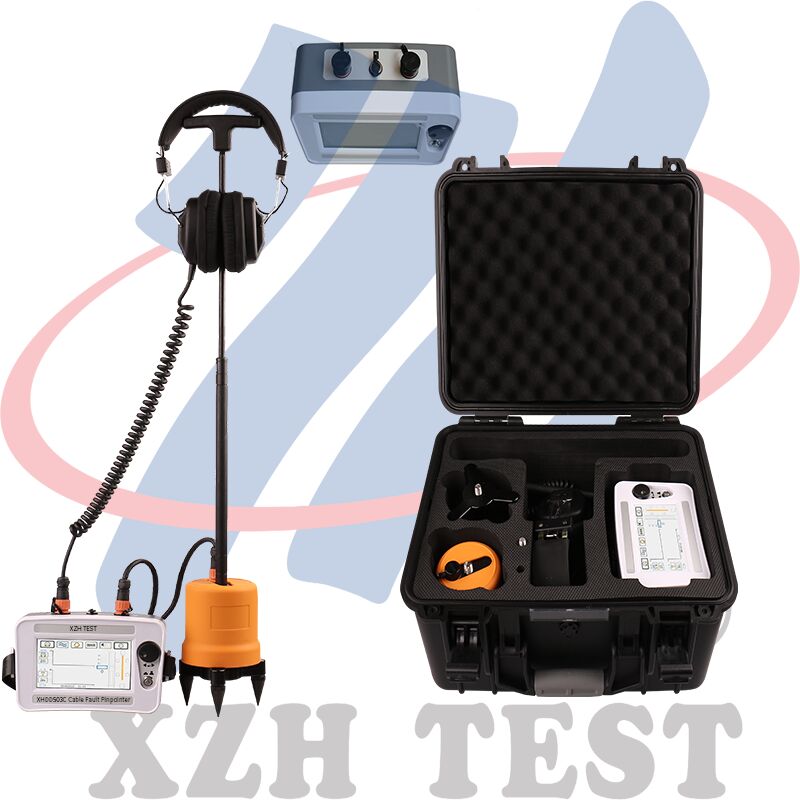

XHDD503C underground cable fault pinpoint locator

Introduction

To accurately identify power cable fault points, the cable fault location instrument employs the acoustic and magnetic synchronization method. The electronic flashover, generated by the impact discharge generator, is detected and amplified by a specialized probe. The precise location of the fault is determined through auditory and visual judgment. This device completes the precise positioning of cable faults within a rough measurement range and collects the time difference between acoustic and magnetic signals.

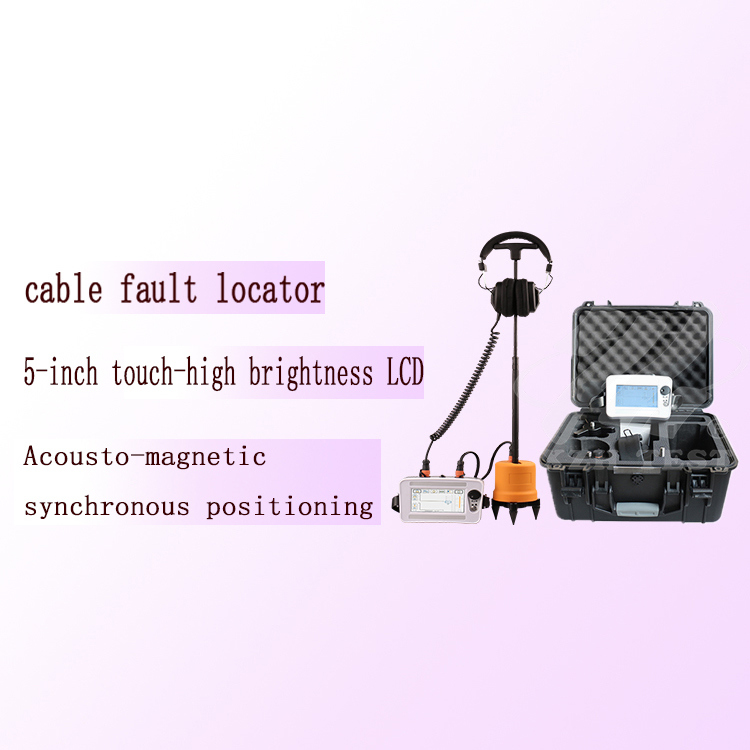

Features

1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. Adopt acoustic and magnetic synchronous positioning technology to automatically calculate the acoustic and magnetic time difference.
3. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
4. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
5. Small and lightweight, easy to operate, and simple human-machine interface.

Technical indicators

1	Filter parameters	All-pass: 100Hz~1600Hz. Low pass: 100Hz~300Hz. Qualcomm: 160Hz~1600Hz. Bandpass: 200Hz~600Hz.
2	Channel gain	8 levels adjustable.
3	Magnetic channel gain	8 levels adjustable.
4	Output gain	16 levels (0~112db)
5	Output impedance	350Ω
6	Acoustomagnetic positioning accuracy	less than 0.2m.
7	Path identification accuracy	less than 0.5m.
8	Power supply	4*18650 standard lithium batteries.

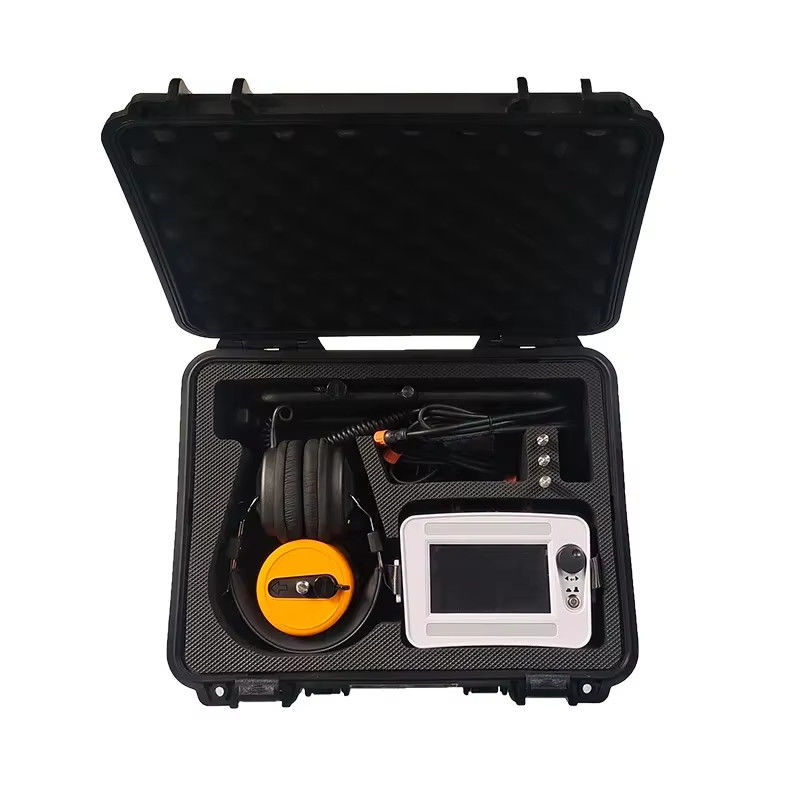

Packing list

Product Details

Cable Fault Pinpointer Electronic Flashover Detection and Accurate Location 2
