🎯 Designed for Professional Cable Safety Teams Requiring Intelligent Process Control
📋 Safety Compliance ManagersLCD display provides operation content visibility and process traceability for safety audits
⚡ High-Voltage Cable SpecialistsPush-button intelligent mode selection for precise control across varied cable types
🏗️ Professional Construction SupervisorsEnhanced interface with Confirm/Select keys reduces operator error in safety-critical workflows
Product Overview

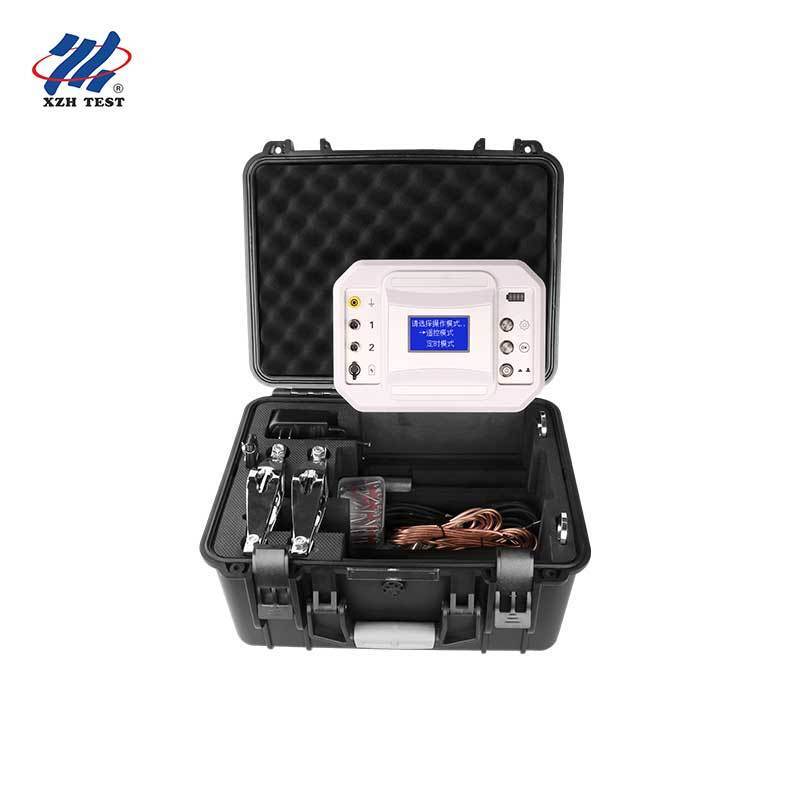

The XHZS506YS Intelligent Cable Spiker is the advanced version of XZH TEST's cable spiker lineup, featuring an integrated LCD display with push-button intelligent mode selection. Unlike the basic XHZS506S model which uses simple indicator lights, the XHZS506YS provides real-time operation content display, process visibility, and confirmation-based control — making it the preferred choice for professional teams that require enhanced safety traceability and precision.
As the final safety checkpoint before cable cutting, the XHZS506YS performs destructive verification through mechanical puncture: if the cable is electrified, the puncture creates an explosive short circuit; if dead, no reaction occurs. This absolute physical confirmation is the mandatory last step in any cable construction, maintenance, or migration project.
🔍 XHZS506YS vs XHZS506S — Understanding the Upgrade: The XHZS506YS adds an LCD display screen that shows operation content and control process in real time, plus Confirm (OK) and Select buttons for intelligent mode management. These additions provide operation traceability for safety audits and reduce the risk of operator error through visual confirmation. The XHZS506S offers the same core spiking capability with simpler indicator-light interface — ideal for teams that need basic functionality. The XHZS506YS is the choice for safety compliance teams who require documented, verifiable operation processes.
Key Specifications
Gun Configuration
Dual Gun Bodies (2 Shooters)
Control Interface
LCD Display + Push-Button (OK/Select)
Remote Control
>10m, Wall Penetration Capable
Power Supply
AC 220V/50Hz Charging; 10+ Hours Battery
Operation Interface
| # |
Component |
Function |
| 1 |
Grounding |
Instrument grounding point for safety protection |
| 2 |
Output 1 |
Connection to shooter body 1 |
| 3 |
Output 2 |
Connection to shooter body 2 |
| 4 |
Charging |
DC12V charging port |
| 5 |
Switch |
Power on/off control |
| 6 |
Confirm (OK) |
Operation function confirmation key |
| 7 |
Select |
Working mode selection for the controller |
| 8 |
Power Indicator |
Real-time battery level indication |
| 9 |
LCD Screen |
Displays operation content and control process |
Packing List & Components
Controller: Manages cable puncture action process with LCD display and push-button interface
Remote Control: Dual-button wireless remote (A/B) corresponding to Output 1/2, >10m range with wall penetration
Bullets & Nails: Loaded into chamber and nail tube for precision cable puncture
Dual Shooters: Two gun bodies ensure effective puncture even at non-ideal mounting angles
Output Lines: Controller-to-shooter connection cables
Ground Wire & Drill: Safety grounding connection with field-deployable ground drill
Maintenance Accessories: Screwdriver, socket, test tube brush for shooter cleaning and upkeep
Power Cord (Charger): Control box charging cable with AC 220V/50Hz input
Key Features
LCD display with push-button (OK/Select) intelligent mode selection — provides operation traceability and visual confirmation
Dual-gun design ensures effective puncture — at least one gun creates a short circuit even at constrained angles
Dual control system: wired (5m) + wireless remote (>10m, wall penetration) for maximum operator safety distance
AC 220V charging with built-in battery providing 10+ hours of continuous field operation
Wide 30-150mm clamp accommodates the vast majority of power cable diameters
Confirmation-based operation reduces accidental triggering — LCD displays process steps before execution
Compact dual-gun complete set at 15.5kg with integrated carrying case for field mobility
Frequently Asked Questions
Q1: Who is the XHZS506YS designed for, and how is it different from the XHZS506S?
The XHZS506YS is designed for professional cable safety teams that require intelligent process control and operation traceability. Compared to the XHZS506S (which uses simple indicator lights), the XHZS506YS adds an LCD display showing operation content and process status, plus Confirm (OK) and Select push-buttons for intelligent mode management. This makes it ideal for safety compliance managers who need documented verification processes, high-voltage specialists working with varied cable types, and construction supervisors accountable for operator safety. Teams needing basic spiking functionality should consider the XHZS506S; those requiring process visibility and reduced operator error should choose the XHZS506YS.
Q2: What role does the LCD display play in improving safety?
The LCD display provides real-time visibility of the operation content and control process — operators can see which mode is selected, the current status of each output channel, and confirmation prompts before execution. This eliminates the ambiguity of interpreting indicator lights alone, reduces the risk of operating the wrong output channel, and provides a clear visual trail for safety documentation. The Confirm (OK) button adds a deliberate action step before any puncture occurs, preventing accidental triggering.
Q3: Why does the XHZS506YS use dual gun bodies?
The dual-gun design provides redundancy for safety-critical operations. Even when mounting angles are constrained in crowded cable trenches and cannot achieve the ideal 60° spacing, at least one gun body will successfully create a short circuit point. Both guns operate independently via Output 1 and Output 2, each controlled through dedicated remote control buttons (A/B) and monitored on the LCD display. This dual-gun redundancy ensures the cable spiker remains effective regardless of field positioning limitations.
Q4: How does the wireless remote enhance operator safety?
The wireless remote (>10m range, wall penetration capable) allows the operator to trigger the puncture from a safe distance — even from behind walls or protective barriers. This is critical because if the cable is unexpectedly live, the puncture creates a violent short circuit that could cause serious injury to anyone nearby. The dual-mode control (wireless remote + 5m wired backup) provides multiple layers of safety distance, ensuring operators can always maintain adequate protection regardless of field conditions.
Q5: Where does the cable spiker fit in the cable maintenance workflow?
The cable spiker is the FINAL step in the cable safety protocol: Step 1 — Use a cable identifier (XHSB505B/DS) to determine which cable is the target among many. Step 2 — Use a cable route tracer (XHLJ504L) to confirm the cable's underground path. Step 3 — Use the cable spiker (XHZS506S or XHZS506YS) for destructive physical verification that the cable is truly dead. Only after this three-step protocol can the cable be safely cut. The XHZS506YS adds LCD-based process visibility to this critical final step.
