XHBX1501 Transformer Winding Deformation Tester FRA Analyzer
XHBX1501 Transformer Winding Deformation Tester FRA Analyzer
  • XHBX1501 Transformer Winding Deformation Tester FRA Analyzer
  • XHBX1501 Transformer Winding Deformation Tester FRA Analyzer
  • XHBX1501 Transformer Winding Deformation Tester FRA Analyzer
  • XHBX1501 Transformer Winding Deformation Tester FRA Analyzer

XHBX1501 Transformer Winding Deformation Tester FRA Analyzer

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHBX1501
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHBX1501
Highlight:

High Light

Highlight:

Transformer winding deformation tester

,

FRA analyzer for transformers

,

Transformer tester with warranty

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
Transformer Winding Deformation Tester Frequency Response Analyzer
Product Overview
The XHBX1501 Transformer Winding Deformation Tester utilizes Frequency Response Analysis (FRA) methodology to accurately assess internal transformer winding faults. This advanced diagnostic instrument quantifies winding parameter response changes across different frequency domains, enabling precise evaluation of winding deformation severity and determining whether transformer overhaul is required.

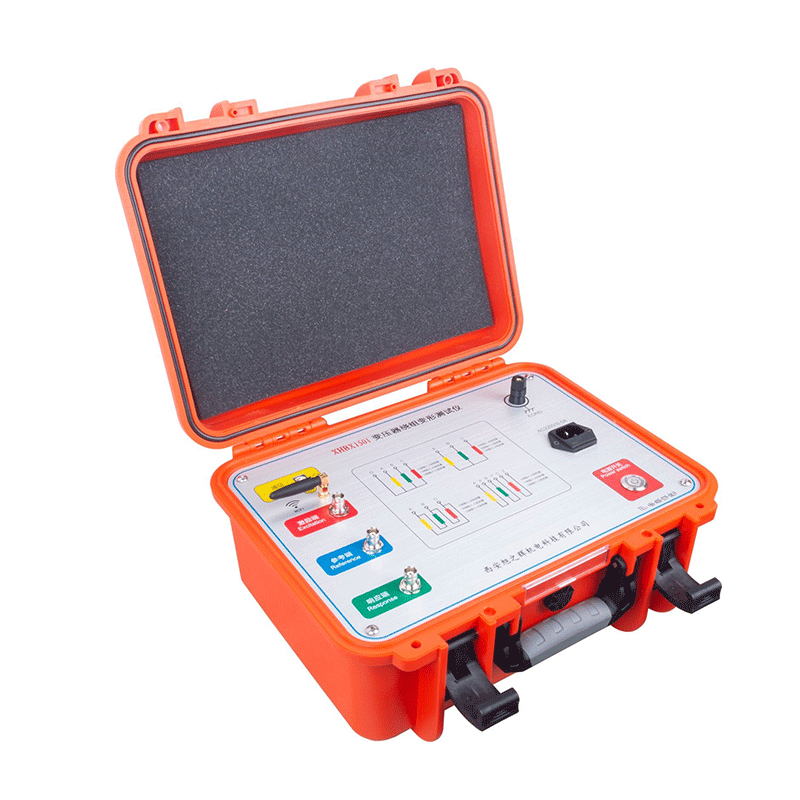

XHBX1501 Transformer Winding Deformation Tester FRA Analyzer 0 XHBX1501 Transformer Winding Deformation Tester FRA Analyzer 1
Technical Specifications
Parameter Value
Test Speed 1-2 minutes per phase winding
Sweep Test Range 100Hz-2MHz
Amplitude Test Range -100dB to 20dB
Signal Output Impedance 1MΩ
Signal Output Voltage 50Ω
Overall Weight 10KG
Instrument Case Dimensions 310×400×330(mm)
Scanning Frequency Accuracy 0.005%
Key Features
  • High-speed microprocessor control system with advanced integration
  • Dual communication options: USB port and optional wireless Bluetooth
  • DDS digital high-speed frequency sweeping technology (USA) for precise fault diagnosis including twisting, bulging, displacement, and short-circuit detection
  • High-speed dual-channel 16-bit A/D sampling with clear waveform changes during tap-changer operation
  • Software-adjustable signal output amplitude (±10V peak)
  • Automatic test result analysis with Word document generation
  • Dual measurement systems: linear sweep frequency and segmented sweep frequency
  • Compliance with DL/T911-2004 power standard for winding deformation analysis
  • Advanced data analysis with horizontal (A-B-C phase) and longitudinal (historical vs current) comparison capabilities
  • Flexible frequency indexing options (linear or logarithmic) for customized curve printing
