Transformer Tester
>
XHBX1501 Transformer Winding Deformation Tester with FRA Method
XHBX1501 Transformer Winding Deformation Tester with FRA Method
  • XHBX1501 Transformer Winding Deformation Tester with FRA Method
  • XHBX1501 Transformer Winding Deformation Tester with FRA Method
  • XHBX1501 Transformer Winding Deformation Tester with FRA Method
  • XHBX1501 Transformer Winding Deformation Tester with FRA Method

XHBX1501 Transformer Winding Deformation Tester with FRA Method

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ISO
Model Number: XHBX1501
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ISO
Model Number:
XHBX1501
Highlight:

High Light

Highlight:

Transformer winding deformation tester

,

FRA method transformer tester

,

Transformer tester with warranty

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
1000 units per year
Product Description
Transformer Winding Deformation Tester for Accurate Determination of Internal Transformer Faults
The XHBX1501 Transformer Winding Deformation Tester utilizes frequency response analysis (FRA) methodology to accurately assess internal transformer faults by measuring characteristic winding parameters. This advanced diagnostic tool quantifies response changes across different frequency domains to determine winding deformation severity, enabling informed decisions about transformer maintenance requirements.

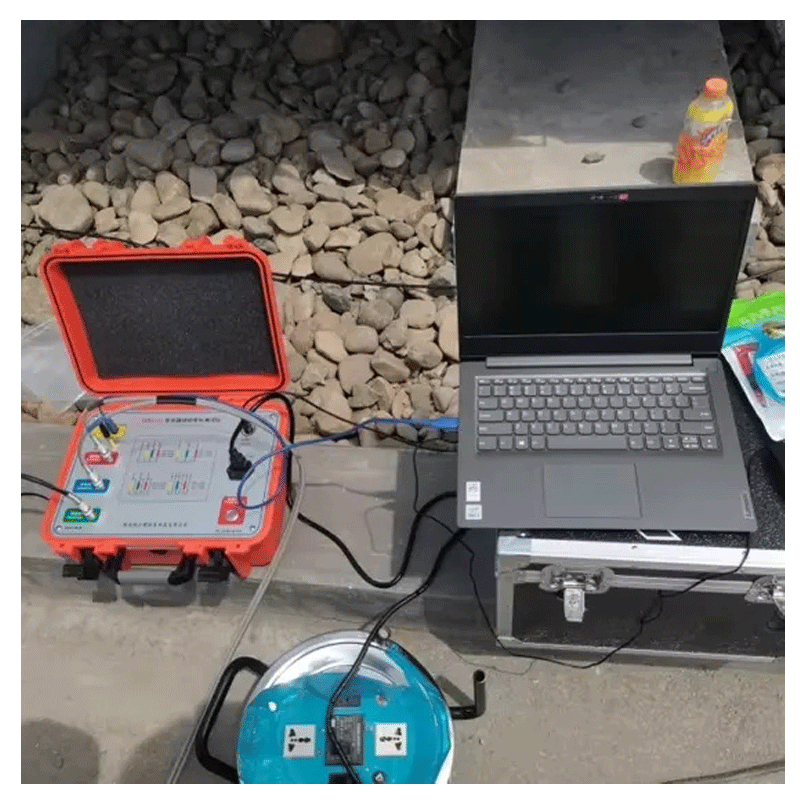

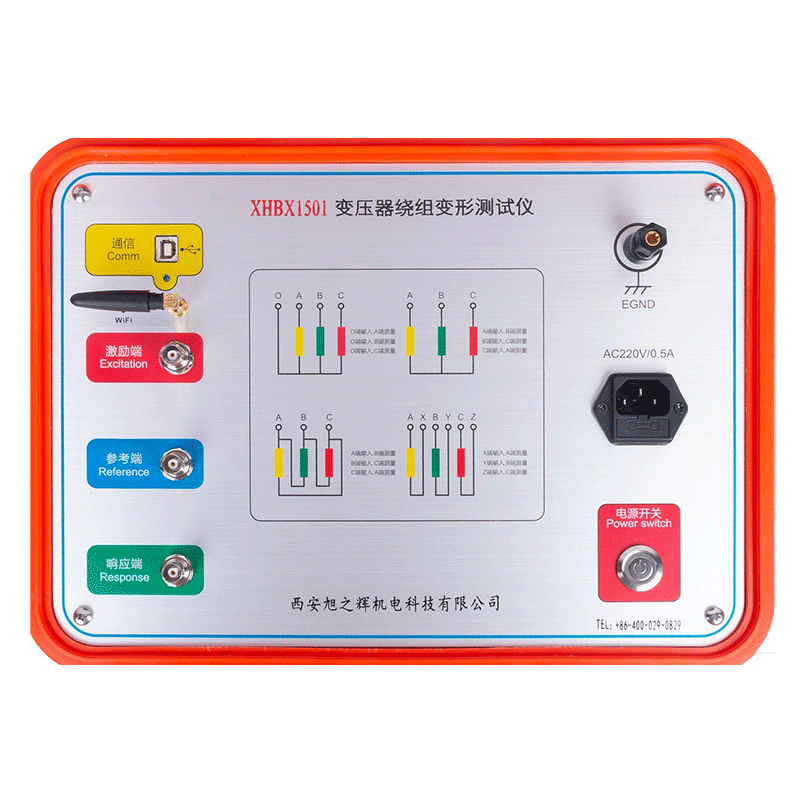

XHBX1501 Transformer Winding Deformation Tester with FRA Method 0 XHBX1501 Transformer Winding Deformation Tester with FRA Method 1
Technical Specifications
Parameter Value
Test Speed 1-2 minutes per phase winding
Sweep Test Range 100Hz-2MHz
Amplitude Test Range -100dB to 20dB
Signal Output Impedance 1MΩ
Signal Output Voltage 50Ω
Overall Weight 10KG
Instrument Dimensions 310×400×330mm (aluminum case)
Scanning Frequency Accuracy 0.005%
Key Features
  • High-speed microprocessor with advanced integration
  • Dual communication options: USB port and optional Bluetooth
  • DDS digital frequency sweeping technology (USA) for precise fault diagnosis including twisting, bulging, displacement, and short-circuit detection
  • High-speed dual-channel 16-bit A/D sampling with visible waveform changes during tap-changer operation
  • Software-adjustable signal output amplitude (±10V peak)
  • Automatic test result analysis with Word document generation
  • Dual measurement systems: linear and segmented sweep frequency modes
  • Compliant with DL/T911-2004 power standard for winding deformation analysis
  • Advanced data analysis with horizontal (A-B-C phase) and longitudinal (historical vs current) comparison capabilities
  • Flexible frequency indexing options (linear or logarithmic) for customized curve generation

Tags:

20A winding resistance tester,

DC winding resistance tester,

DC winding resistance meter

similar products
Three Single Phase 20A Digital Portable DC Winding Resistance Tester

Three Single Phase 20A Digital Portable DC Winding Resistance Tester

Get Best Price
Demagnetization Effect Verification Fast Three-Phase Test Transformer Demagnetization Tester

Demagnetization Effect Verification Fast Three-Phase Test Transformer Demagnetization Tester

Get Best Price
Automatic Open/Close Cup Flash Point Tester for Transformer Oil Blue and Customizable

Automatic Open/Close Cup Flash Point Tester for Transformer Oil Blue and Customizable

Get Best Price
Transformer Insulating Oil Dielectric Loss Tester

Transformer Insulating Oil Dielectric Loss Tester

Get Best Price
100kv Insulating Oil Withstand Voltage Tester for After Sale Serive

100kv Insulating Oil Withstand Voltage Tester for After Sale Serive

Get Best Price
Automatic Acid Value Tester for Insulation Oil Acidity Test

Automatic Acid Value Tester for Insulation Oil Acidity Test

Get Best Price
Customizable Automatic Insulating Oil Acid Value Tester for Acidity Analysis

Customizable Automatic Insulating Oil Acid Value Tester for Acidity Analysis

Get Best Price
Automatic Acid Value Tester for Insulation Oil Acidity Measurement Instrument

Automatic Acid Value Tester for Insulation Oil Acidity Measurement Instrument

Get Best Price
Transformer Insulation Oil Tester Automatic Dielectric Strength Breakdown Bdv

Transformer Insulation Oil Tester Automatic Dielectric Strength Breakdown Bdv

Get Best Price
Sensitive Valve 0.1 micro Color Touch Screen Trace Moisture Meter with Printer

Sensitive Valve 0.1 micro Color Touch Screen Trace Moisture Meter with Printer

Get Best Price
Sensitive Valve Precision LCD Touch Screen Moisture Meter for Industrial

Sensitive Valve Precision LCD Touch Screen Moisture Meter for Industrial

Get Best Price
