Cable Fault Locator
>
Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator
  • Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator
  • Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator
  • Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator
  • Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator
  • Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator
  • Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator
  • Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator

Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator

Product Details:
Brand Name: XZH Test
Detail Information
Brand Name:
XZH Test
Highlight:

High Light

Highlight:

underground cable fault locator

,

anti-noise cable fault pinpointer

,

cable fault locator with warranty

Trading Information
Minimum Order Quantity:
1unit
Price:
1750USD
Packaging Details:
wooden box
Delivery Time:
5-8work days
Payment Terms:
T/T
Supply Ability:
2000unit/year
Product Description

Basic Info.

Model NO.
XHDD503D
Transport Package
Wooden Case
Specification
479X387X210mm
Trademark
XZH TEST
Origin
China Xi′an
HS Code
9031809090
Production Capacity
2000pieces /Year

Product Description

Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator 0



Product Introduction

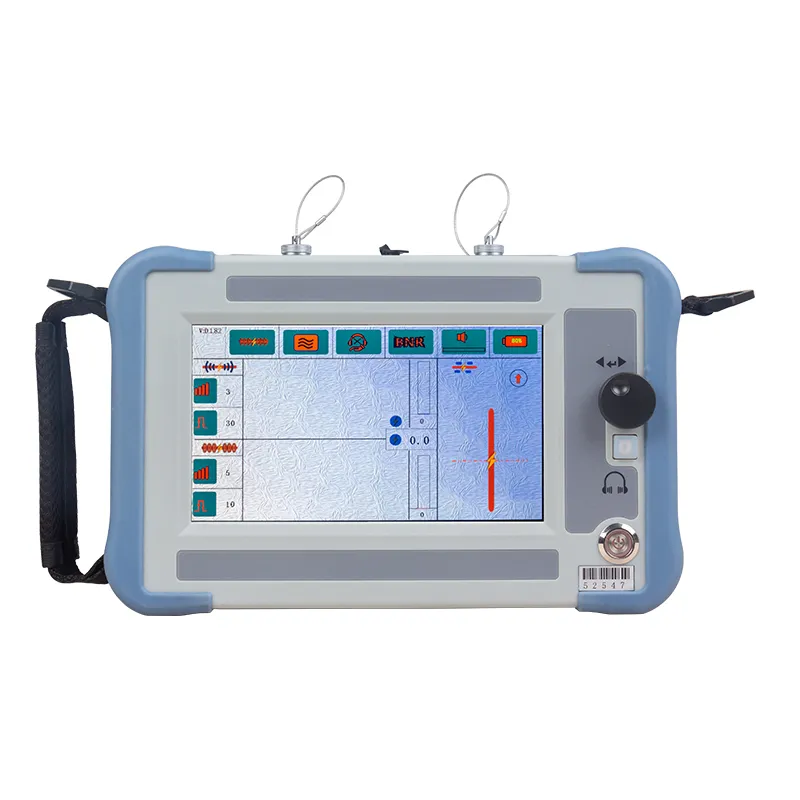

The XHDD503D underground cable fault pinpointer uses the acousto-magnetic synchronization method to determine the location of the cable fault point. The electronic flashover is generated by the impulse discharge generator, picked up and amplified by the corresponding probe, and judged by auditory and visual sense to determine the precise location of the fault point, complete the precise positioning of the cable fault point within the range of the cable fault point, it integrates acousto-magnetic time difference positioning technology, noise reduction technology, path-assisted testing and other technologies, and provides multiple test modes and rich and diverse prompt information to efficiently and accurately complete cable fault location.


This pointing instrument is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of various materials of different cross-sections and different media, such as power cables, high-frequency coaxial cables, street lamp cables, and buried wires, as well as high-resistance leakage and high-resistance flashover fault.

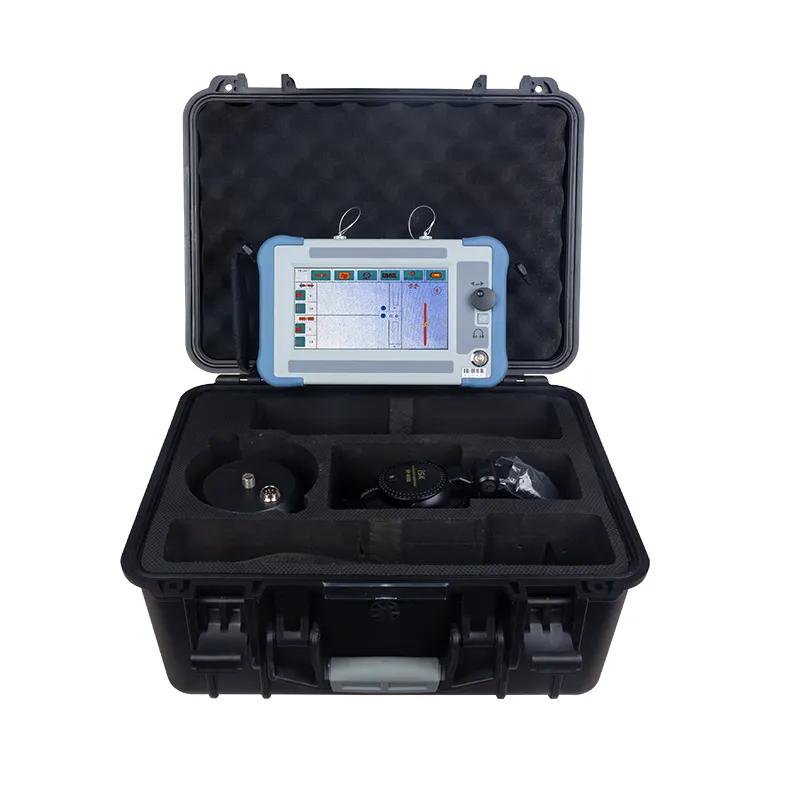

Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator 1


Main Function & Features

(1)Acousto-magnetic synchronous positioning technology is used to automatically calculate the acoustic-magnetic time difference, reducing the dependence on sound monitoring.
(2)The background noise reduction technology effectively filters out environmental interference noise and highlights the discharge sound at the fault location.
(3)Combining the traditional acoustic measurement method and the advanced acoustic magnetic method, the operator freely chooses according to the usage habits.
(4)The gain value and trigger value of the acoustic signal and magnetic signal can be adjusted manually, which is more convenient to fix the point.
(5)It has the function of path auxiliary indication to avoid offsetting the path when the point is fixed.
(6)Adjustable parameters, select appropriate filter parameters, and suppress environmental noise.
(7)7-inch touch highlight LCD to ensure visibility in the sun.
(8)Built-in  high-capacity lithium-ion battery power supply, with fast charger.
(9)Small and portable, light weight.

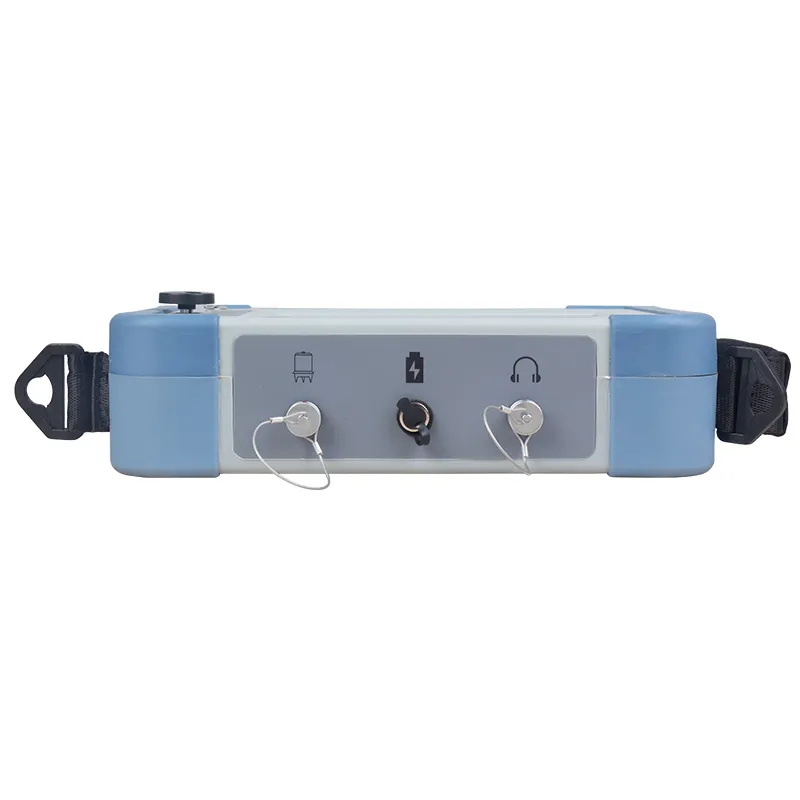

Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator 2

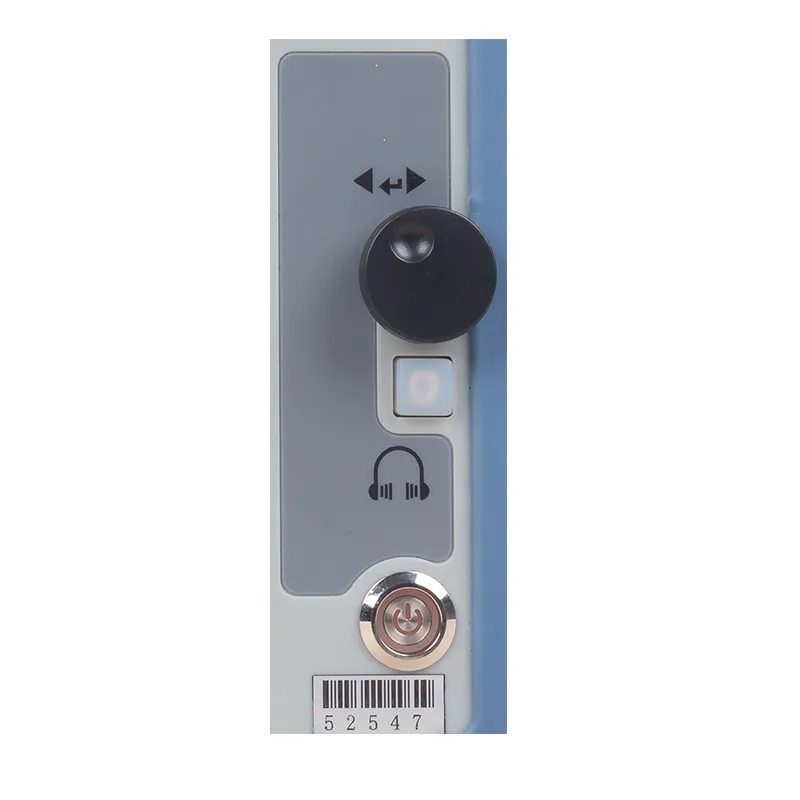

Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator 3



Xzh Test Strong Anti-Noise Cable Fault Pin-Pointing Locator Underground Cable Fault Pinpointer Locator 4



Technical data



Acousto-magnetic synchronization (1)Sound channel
  1. Bandwidth
  2. All pass:100Hz-1500Hz
  3. Low pass:100Hz-400Hz
  4. Highpass:150Hz-1500Hz
  5. Bandpass:200Hz-600Hz
  6. Signal gain:Adjustable from 1 to 7 gears
  7. Fixed-point accuracy:0.1m
(2)Magnetic field channel
  1. Signal gain:Adjustable from 1 to 7 gears
BNR Acousto-magnetic synchronization background noise reduction mode

The sound signal strength bar graph indicates, and the sound trigger threshold is adjustable.
Acousto-magnetic time difference positioning mode waveform display, acousto-magnetic time difference display.
Path auxiliary test: The direction of the path can be indicated by the icon     on the left and right of the cable.
Power supply:
  1. Battery: Built-in lithium-ion battery pack, voltage 8.4V, capacity 4.4Ah
  2. Use time: continuous use time> 8 hours;
  3. Charger: input AC220V±10%, 50Hz; nominal output 8.4V, 1A
  4. Charging time: <6 hours.
Display mode: 7-inch color LCD, 1024*600 resolution, with touch function.
Operating environment temperature -25ºC-40ºC, humidity 5-90%RH, altitude <4500m.
