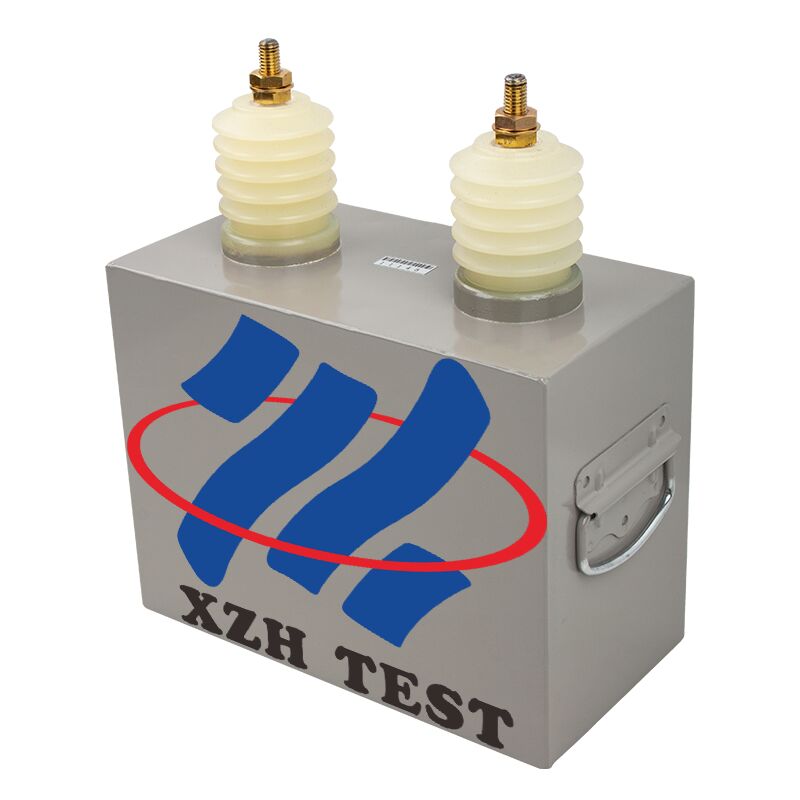

XHCC-15/4*2
Overview
The pulse energy storage capacitor adopts imported film and features a non-inductive winding structure, with excellent self-healing performance and explosion-proof performance. It boasts reliable structure, no leakage, no pollution, moisture resistance, fire resistance, long service life, small size and light weight.
Applications
The pulse energy storage capacitor stores the charging energy of a low-power power supply into the capacitor within a certain time interval. At a required moment, it rapidly releases the stored energy within an extremely short time interval, generating a strong impact current and high impact power. It is mainly used in fields such as high-voltage impulse discharge testing, high-energy physics, oscillation circuits, and geological prospecting.
Technical Parameters
Ambient Temperature: -20～+50℃;
Altitude: ≤2000 meters, altitudes above 2000 meters will be specified separately;
Capacitor Tolerance: ±5%;
Rated Capacitance: 4uF
Rated Voltage Rating: 15kV
Precautions and Common Faults
1. Do not impact or knock the pulse energy storage capacitor, as this may damage the internal film.
2. When using the pulse energy storage capacitor, please read the instruction manual and capacitor label to prevent overvoltage use.
3. During use, pay attention to the voltage withstand capability and safe distance of the connecting wires.
4. After the test, the high-voltage end must be fully discharged first.
5. If abnormal noise occurs inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If bulges or protrusions appear on the capacitor casing, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.
After-sales Service
The instrument is covered by a one-year free warranty for product quality issues from the date of purchase, and lifetime repair and technical services are provided. If you find that the instrument is malfunctioning or has any faults, please contact us promptly so that we can arrange the most convenient and effective solution for you.
If you are interested in this type of equipment, please feel free to contact us. We also accept customized services.
