XHCC-2/35
Overview

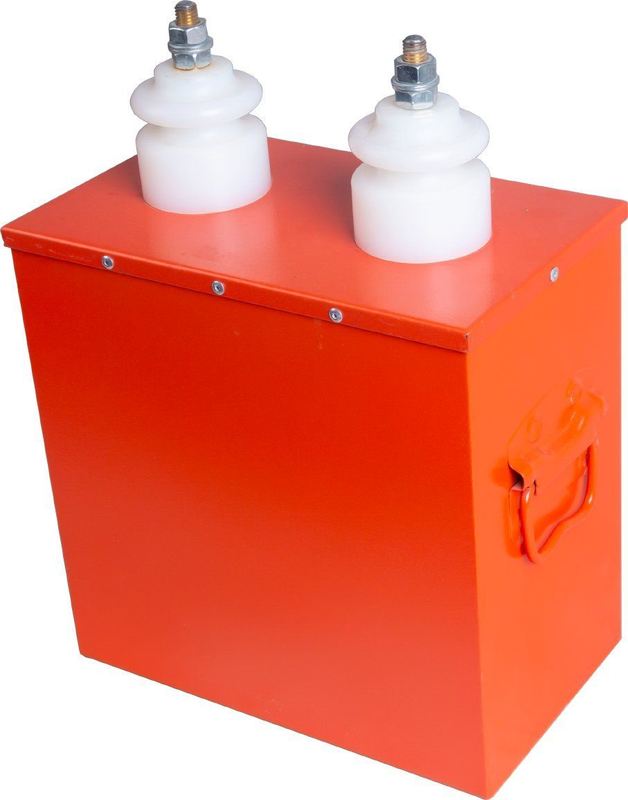

Pulse energy storage capacitors use imported films and adopt a non-inductive winding design, offering superior self-healing and explosion-proof capabilities. They are characterized by robust construction, zero leakage, pollution-free operation, moisture and fire resistance, extended lifespan, compact size and lightweight design.
Applications
Pulse energy storage capacitors accumulate energy from low-power sources in the capacitor over a set time period, then release the stored energy instantaneously in a fraction of a second to produce intense impulse current and high impulse power. Key applications include high-voltage impulse discharge tests, high-energy physics research, oscillation loop systems, and geological exploration.
Precautions and Common Faults
1. Do not impact or knock the pulse energy storage capacitor, as this may damage the internal film.
2. When using the pulse energy storage capacitor, please read the instruction manual and capacitor label to prevent overvoltage use.
3. During use, pay attention to the voltage withstand capability and safe distance of the connecting wires.
4. After the test, the high-voltage end must be fully discharged first.
5. If abnormal noise occurs inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If bulges or protrusions appear on the capacitor casing, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.
After-sales Service
The instrument is covered by a one-year free warranty for product quality issues from the date of purchase, and lifetime repair and technical services are provided. If you find that the instrument is malfunctioning or has any faults, please contact us promptly so that we can arrange the most convenient and effective solution for you.
If you are interested in this type of equipment, please feel free to contact us. We also accept customized services.
