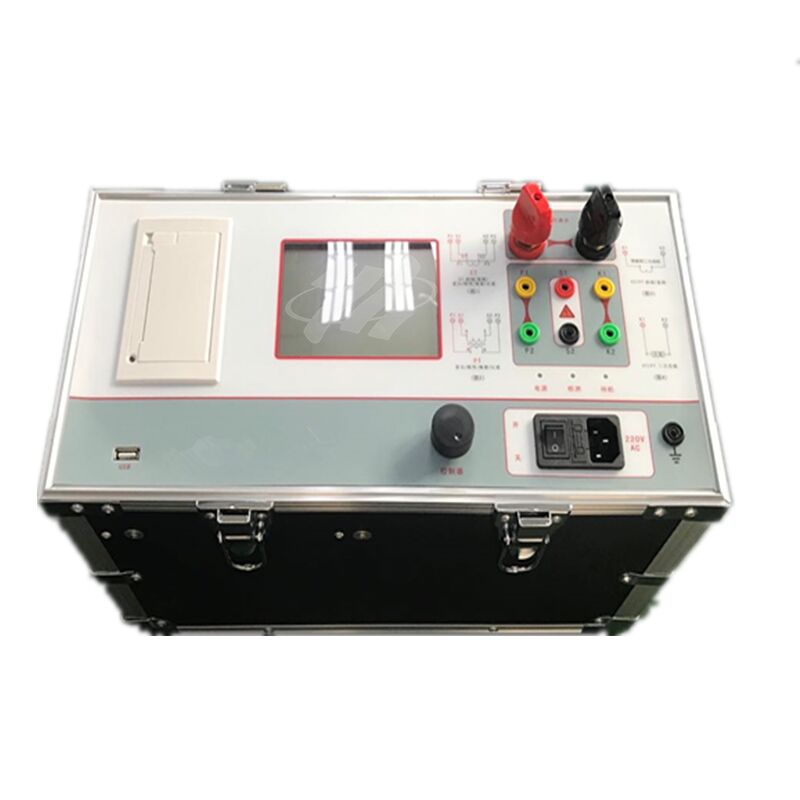

Digital CT PT Analyzer with Frequency Conversion Excitation

Name: Digital CT PT Analyzer with Frequency Conversion Excitation
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHTX201D
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHTX201D

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHTX201D

Highlight:

High Light

Highlight:

Digital CT PT Analyzer

Frequency Conversion Excitation Transformer Characteristic Tester

Single Phase Current Transformer and Voltage Transformer Tester

Trading Information

Minimum Order Quantity:

1set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

Product Overview

The Transformer Vol-Ampere Characteristic Tester is engineered to conduct a comprehensive range of tests on current transformers (CTs) and voltage transformers (PTs), including excitation characteristic tests, transformation ratio measurements, polarity checks, DC resistance tests of secondary windings, and AC load tests of CT secondary circuits.

Performance Features

For CT testing: Automatically calculates inflection points, 5%/10% curves, transformation ratios, ratio errors, phase (angle errors), polarity, primary current injection, AC withstand voltage, secondary load, secondary winding parameters, and core demagnetization.
For PT testing: Automatically generates inflection points, transformation ratios, ratio errors, phase (angle errors), polarity, AC withstand voltage, secondary load, secondary winding parameters, and core demagnetization.
Stores up to 3,000 sets of test data with non-volatile memory to prevent data loss during power outages.
Supports USB flash drive data transfer for easy access via standard personal computers, with the capability to generate professional WORD test reports.
Application Areas:
♦ Power systems: power generation, transmission, transformation, and distribution;
♦ Factories and mines: large-scale manufacturing plants and various mining companies;
♦ Metallurgy and petrochemicals: smelting, chemical industry, water treatment, etc.;
♦ Transportation: ports/railways/highways/airports and municipal street lighting, etc.;
♦ Enterprises and institutions: logistics departments of large enterprises and institutions;
♦ Construction industry: large construction and property management companies;
♦ Power equipment installation and testing: power installation and commissioning companies of various levels;
