CT PT Analyzer
>

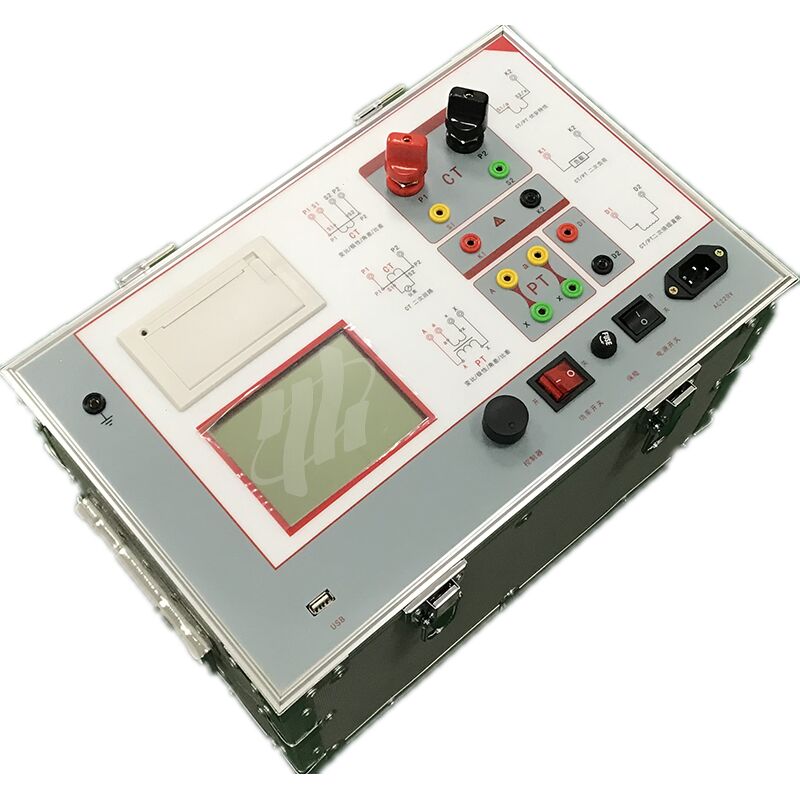

Smart Single Phase CT PT Analyzer
Smart Single Phase CT PT Analyzer
  • Smart Single Phase CT PT Analyzer

Smart Single Phase CT PT Analyzer

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHTX201D
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHTX201D
Highlight:

High Light

Highlight:

Digital CT PT Analyzer

,

Single Phase Transformer Analyzer

,

Frequency Conversion Excitation Current Transformer Tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Product Overview

The  Transformer Vol-Ampere Characteristic Tester delivers all-in-one testing capabilities for both current and voltage transformers, covering excitation characteristics, transformation ratios, polarity checks, secondary winding DC resistance, and CT secondary circuit AC loads.

Performance Features

  • Streamlined CT/PT testing: Auto-generates key metrics (inflection points, 5%/10% curves, ratio/phase errors, polarity) plus primary current injection, AC withstand voltage, secondary load, winding data, and core demagnetization results.
  • Reliable data storage: Retains 3,000 test datasets permanently, even when power is cut off.
  • Hassle-free data management: Export data via USB, read with any standard PC, and generate WORD reports in seconds—ideal for on-site and lab applications.

  • Technical Parameters
    Output 0–2500Vrms, 5Arms, 20A (peak) ±0.5%  0–1000A
    Measurement 0–1000 ±0.5%
    Resistance 0–300Ω ±0.5%
    Phase Resolution 0.1 min ±4 min
    Load 5–1000VA ±(0.5%R+0.1VA)

    Smart Single Phase CT PT Analyzer 0

Tags:

CT PT analyzer transformer tester,

customizable CT PT analyzer,

transformer characteristic tester
