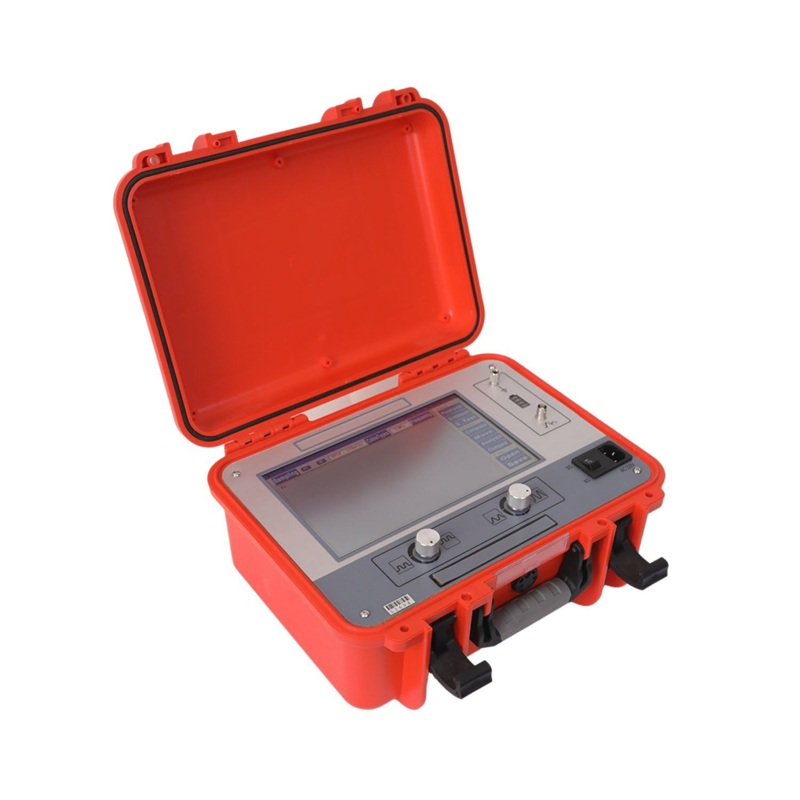

XHGG501D 30km Cable Fault Locator with 0.5m Resolution

Name: XHGG501D 30km Cable Fault Locator with 0.5m Resolution
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGG501D
Price: 1,550.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHGG501D

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHGG501D

Display:

10 "LCD

Operating Temperature:

-20 ºC ~ +60ºC

Pulse Width:

0.1us/2us

Highlight:

High Light

Highlight:

30km cable fault locator

TDR fault locator with 0.5m resolution

cable fault detector with warranty

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per yesr

Product Description

XHGG501D 30km Test Distance Resolution 0.5m Cable Fault Locator

Product Specifications

Attribute	Value
Display	10" LCD
Operating Temperature	-20ºC ~ +60ºC
Pulse Width	0.1us/2us

Product Overview

The XHGG501D Cable Fault Locator features a simple operating interface with single-chip centralized control and touch operation mode. Equipped with a built-in large-capacity lithium-ion battery, this instrument offers stable, reliable performance and ease of use. Designed specifically for measuring and analyzing power cable fault states and distances, it utilizes modern electronic technology for signal filtering, acquisition, data processing, and graphical display/analysis.

Key Features

Industrial-grade 10" LCD display with operating temperature range of -20ºC to +60ºC
MCU centralized control with touch operation and strong anti-interference capability
Multiple functions including ranging, speed measurement, and resistance measurement
Automatic continuous sampling with accurate waveform capture
Supports low voltage pulse sampling and flashover sampling methods
Built-in large capacity battery pack for convenient operation
Protective case rated not lower than IP54

Technical Parameters

Parameter	Specification
Sampling frequency	100MHz
Repeatability	0.1uS/2uS
Minimum resolution	0.5m
Test blind area	≤20m
Ranging range	≤30km
Measurement error	≤±(0.5%×L+1m), where L is the cable length
Ambient temperature	-20~+60ºC
Relative humidity	<90%
Supply voltage	AC220V ± 10%

Package Contents

Item	Quantity	Item	Quantity
Cable fault tester	1	Single q-wire	1
Double q-line	1	Sampler	1
Power cord	1	Safety tube
Ground wire (optional)	1
