High Quality Factory Direct sales Underground Cable Fault Pinpionter

Name: High Quality Factory Direct sales Underground Cable Fault Pinpionter
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503C
Price: 4,175.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHDD503C

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHDD503C

Product Name:

Cable Fault Locator

Application:

Widely

Channel Gain:

8 Adjustable

Magnetic Channel Gain:

8 Adjustable

Output Gain:

Output Gain

Output Impedance:

350Ω

Volume:

428L*350W*230H

Weight:

6KG

HS Code:

9031809090

Highlight:

High Light

Highlight:

underground cable fault pinpointer

factory direct cable fault detector

high precision cable fault locator

Trading Information

Minimum Order Quantity:

1 Uuit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

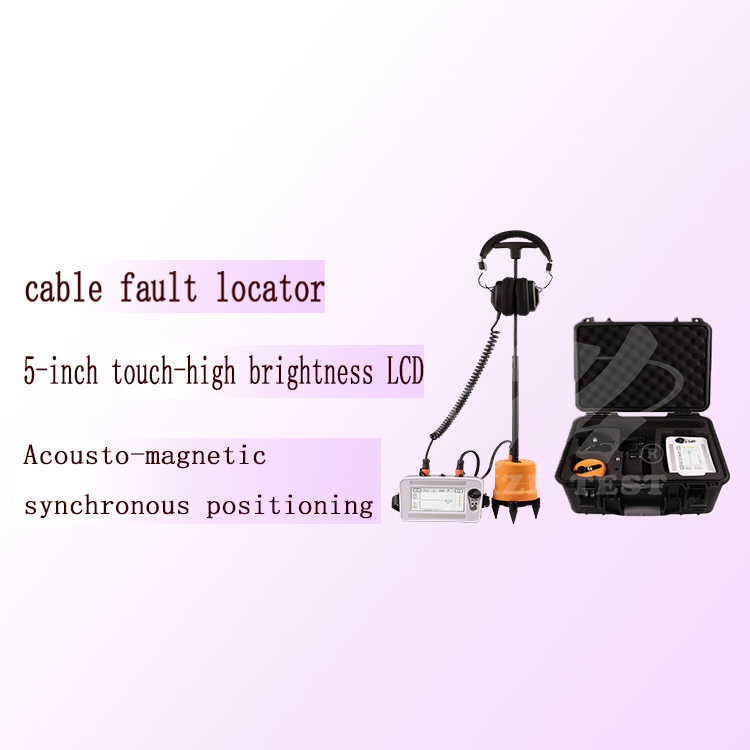

XHDD503C underground cable fault pinpoint locator

Introduction

Utilizing the acoustic and magnetic synchronization method, the cable fault location instrument is a powerful tool for accurately identifying power cable fault points. The electronic flashover, generated by the impact discharge generator, is captured and amplified by a specialized probe. The exact location of the fault is pinpointed through auditory and visual cues. This device completes the precise positioning of cable faults within a rough measurement range and collects the time difference between acoustic and magnetic signals. It integrates advanced positioning technology with path-assisted testing, offering multiple test modes and a variety of informative prompts to efficiently and accurately locate cable faults.

Features

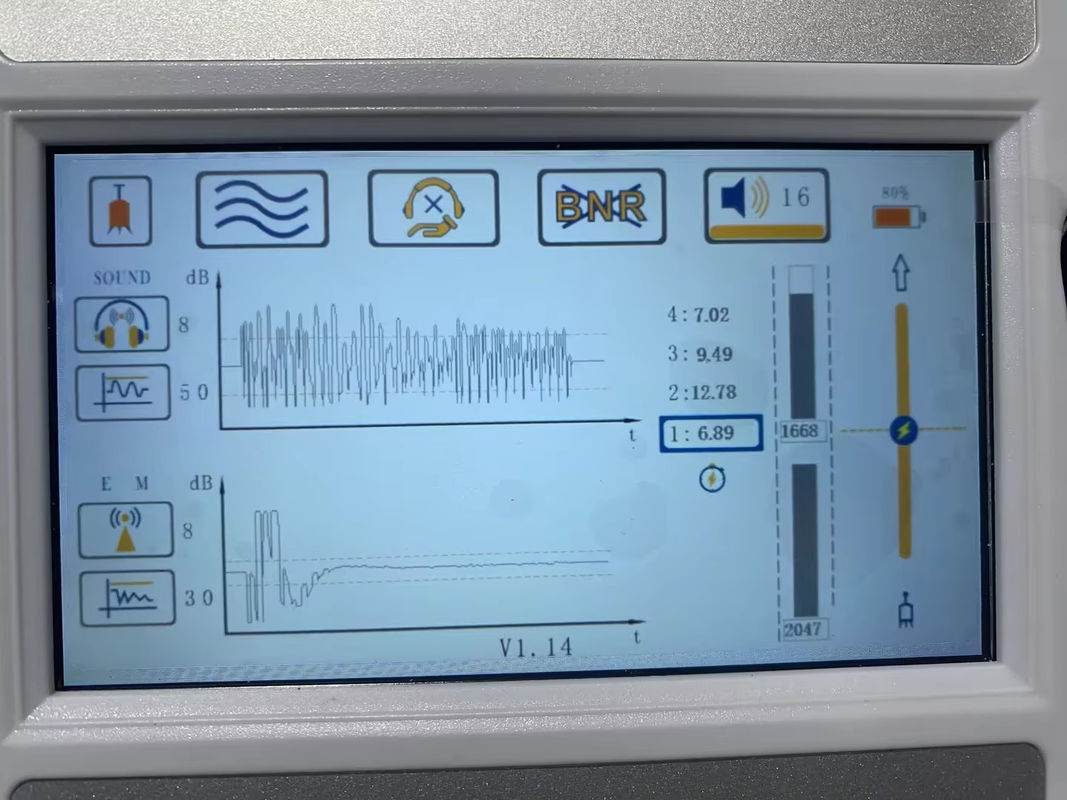

1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. Adopt acoustic and magnetic synchronous positioning technology to automatically calculate the acoustic and magnetic time difference.can be manually adjusted to adapt to various environments.
3. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
4. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
5. Small and lightweight, easy to operate, and simple human-machine interface.

Technical indicators

1	Filter parameters	All-pass: 100Hz~1600Hz. Low pass: 100Hz~300Hz. Qualcomm: 160Hz~1600Hz. Bandpass: 200Hz~600Hz.
2	Channel gain	8 levels adjustable.
3	Magnetic channel gain	8 levels adjustable.
4	Output gain	16 levels (0~112db)
5	Output impedance	350Ω
6	Acoustomagnetic positioning accuracy	less than 0.2m.
7	Path identification accuracy	less than 0.5m.
8	Power supply	4*18650 standard lithium batteries.
9	Standby time	more than 8 hours.
10	Volume	428L×350W×230H
11	Screen pixels	854-480
12	Brightness	800nit
13	Transmission speed unit	0-100ms
14	Accuracy	1ms
15	Sound bandwidth	100-1.6khz
16	Magnetic coil bandwidth	100-20kHZ
17	Both sound and magnetism are	greater than 75db
18	Weight	6.5kg.
19	Ambient temperature	-25~65℃; Relative humidity: ≤90%.

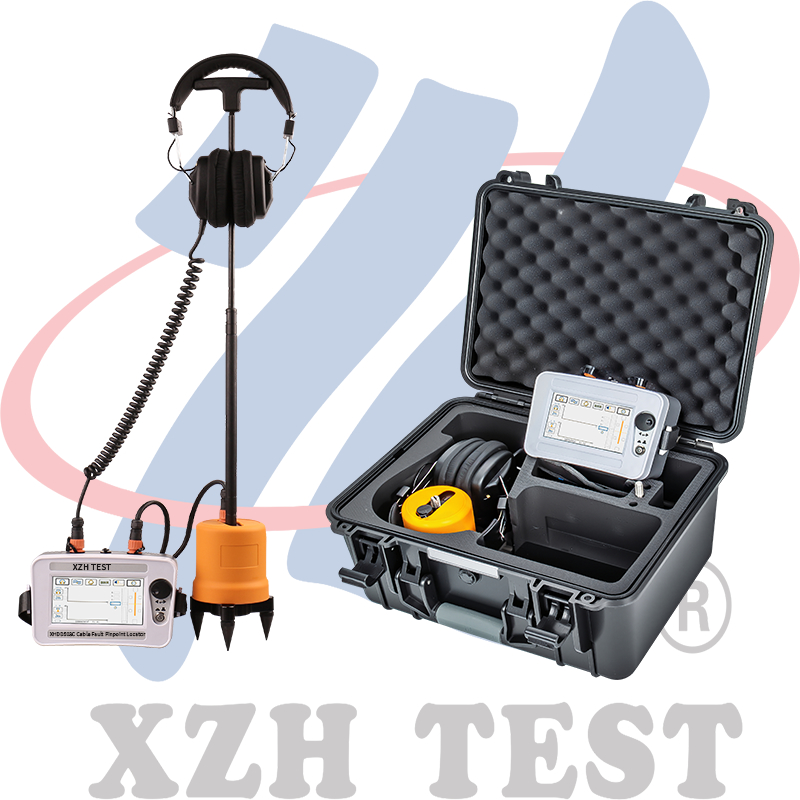

Packing list

Product Details

High Quality Factory Direct sales Underground Cable Fault Pinpionter 2
