Transformer Winding Deformation Tester Transformer Tester SFRA Frequency Response 10Hz-10MHz Impedance Analyzer|XHBX1502

Name: Transformer Winding Deformation Tester Transformer Tester SFRA Frequency Response 10Hz-10MHz Impedance Analyzer|XHBX1502
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBX1502
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE, ISO
Model Number:	XHBX1502

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE, ISO

Model Number:

XHBX1502

Model NO.:

XHBX1502

Power:

Electricity

Customized:

Customized

Color:

Silver

Transport Package:

Exported Wooden Case

Trademark:

XZH TEST

Origin:

China

Supply Ability:

2000PCS/Year

Package Size:

45.00cm * 36.00cm * 25.00cm

Package Gross Weight:

50.000kg

Customization:

Available

After-sales Service:

After Sale Serive

Warranty:

12 Months

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Support Payment In USD

Secure Payments:

Every Payment You Make At Made-in-china.com Is Protected By The Platform.

Refund Policy:

Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Highlight:

High Light

Highlight:

SFRA analyzer for transformers

customized transformer SFRA tester

silver sweep frequency analyzer

Trading Information

Minimum Order Quantity:

1unit

Price:

Negotiable

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

XHBX1502

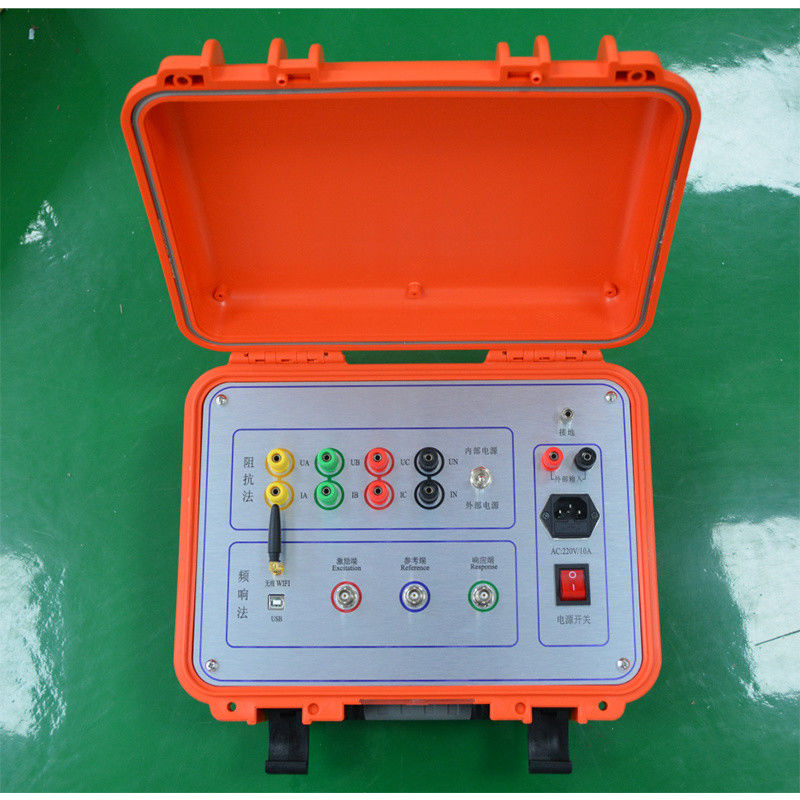

The XHBX1502 transformer winding deformation tester (frequency response method) is used to test power transformers of 6KV and above and other special purpose transformers.
XHBX1502 transformer winding deformation tester uses the frequency response analysis method to measure the winding deformation of the transformer according to the national power industry standard DL/T911-2004. It is to detect the amplitude-frequency response characteristics of each winding of the transformer and compare the detection results vertically or horizontally. The degree of change in the amplitude-frequency response characteristic determines the deformation that may occur in the transformer winding.
The XHBX1502 transformer winding deformation tester (frequency response method) consists of a measurement part and an analysis software part. The measurement part is a black box composed of signal generation and signal measurement. The analysis part is completed by a notebook computer, and the measurement part is connected to the notebook computer via USB or network.

Main features
1. The test can be carried out without lifting the cover and disassembling the transformer.
2. Adopt the most popular sweep method to measure.
3. This instrument can measure transformers those are above 6kV.
4. It uses a split structure, test host and the host computer were connected by USB or network connection, it can use freely when it was plugged.
5. The field wiring is simple, easy to use.
6. Measuring dynamic range: -120dB ~ +20dB.
7. The analysis software is powerful, and the software and hardware indicators meet the national standard DL/T911-2004.
8. Sweep measurement using linear or logarithmic distribution.
9. The response channel has multiple ranges and automatically adjusts the range during the measurement process.

Main Technical Parameters
1. Test host and PC port: USB or network.
2. Signal source: The instrument has a channel signal output as the excitation signal of the sweep frequency; the signal output is a standard sine wave, the signal output amplitude can be adjusted by software, the maximum amplitude is ±20V, and the signal output impedance is 50Ω.
3. Two acquisition channels, one to acquire the excitation signal and one to collect the response signal for calculating the transfer function.
4. The excitation channel is measured as a fixed range: ±10V; the response channel has multiple ranges, and the range is automatically adjusted during the measurement process. The maximum input signal is ±25V.
5. Acquisition channel quantization accuracy: 12 bits.
6. Maximum static error of the acquisition channel: 0.5%.
7. Maximum storage capacity per channel: 64K samples.
8. The highest sampling rate per channel: 20Msps.
9. Input impedance of the acquisition channel: 1MΩ.
10. Sweep test range: 10Hz-10MHz.
11. Scanning method: Sweep measurement method with linear distribution or logarithmic distribution.
12. Scanning frequency accuracy: The frequency accuracy of the signal source output sinusoidal signal is not more than 0.005%.
13. Sweep test frequency: fixed mode or user-defined.
14. Meet national power industry standards: DL/T911-2004.

Packaging: Wooden case filled with foam

Shipping: by Air, Sea, Express, etc.

Shipping time: 7-15 days if it's in stock.

Dual Method Technical Data (2025 Manual)

Method	Parameter	Specification
Frequency Response (SFRA)	Sweep range	10Hz - 10MHz, 40000 sweep points, resolution 0.25kHz / 0.5kHz / 1kHz
	Amplitude range	-120dB to +20dB
	Amplitude accuracy	0.1dB
	Sweep frequency accuracy	0.005%
	Signal output / input impedance	Output ±20V, output impedance 50Ω, input impedance 1MΩ
	Same-phase repeatability	99.9%
Impedance (Short-Circuit)	Measurement accuracy	Voltage 0.2 class, Current 0.2 class
	Impedance range	0 - 100%
	Voltage range	AC 25V - 500V
	Current range	AC 0.1A - 10A
	Operating humidity	0 - 80%
	Unit size / weight	340 x 240 x 210 mm / 20 kg
System & Compliance		High-speed dual-channel 16-bit A/D acquisition, USB connection to notebook PC, automatic Word report generation, built-in 220V or external power supply, complies with DL/T911-2004 and DL/T1093-2008

Target Audience

Engineered for power grid companies and substation operation units performing mandatory post-short-circuit winding deformation assessment, transformer manufacturers' factory acceptance and after-sales verification departments, large industrial power users' substation commissioning teams, and third-party electrical testing institutes conducting DL/T911-2004 and DL/T1093-2008 compliance inspections. Featuring both frequency response and low-voltage short-circuit impedance methods in one instrument, the XHBX1502 is positioned as a comprehensive dual-verification solution for regulatory winding deformation diagnosis, distinct from single-method SFRA analyzers and routine oil test instruments in the same category.

FAQ

Q1. What test methods does the XHBX1502 support?

It supports two complementary methods: the frequency response analysis (FRA/SFRA) method per DL/T911-2004, and the low-voltage short-circuit impedance method per DL/T1093-2008. Dual-method verification greatly improves the accuracy of winding deformation judgment.

Q2. What are the key specifications of the frequency response method?

Sweep range 10Hz - 10MHz with 40000 sweep points and 0.25kHz/0.5kHz/1kHz resolution, amplitude measurement range -120dB to +20dB with 0.1dB accuracy, sweep frequency accuracy 0.005%, signal output ±20V, and same-phase repeatability 99.9%.

Q3. What are the key specifications of the impedance method?

Measurement accuracy of voltage and current is 0.2 class, impedance range 0 - 100%, voltage range AC 25V - 500V, current range AC 0.1A - 10A, with automatic comparison of A/B/C three-phase similarity and nameplate short-circuit impedance.

Q4. Which standards and regulations does the instrument comply with?

It fully meets DL/T911-2004 for frequency response analysis and DL/T1093-2008 for the impedance method, and supports the mandatory post-short-circuit winding deformation testing requirements for 110kV and above transformers specified in the national grid anti-accident measures.

Q5. What does the complete system include, and what after-sales service is provided?

The system consists of the main measurement unit, notebook PC software, three dedicated measurement cables, grounding leads and test clamps, with USB communication and automatic Word report generation. Warranty: replacement within 3 months, free repair within 1 year, and paid lifetime maintenance thereafter.
