Customization SF6 Gas Analyzer for Humidity Purity and Decomposition Testing

Name: Customization SF6 Gas Analyzer for Humidity Purity and Decomposition Testing
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZH309
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	ISO, CE
Model Number:	XHZH309

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

ISO, CE

Model Number:

XHZH309

Model NO.:

XHZH309

Trademark:

XZH TEST

HS Code:

854320100

Supply Ability:

2000 Pieces /Year

Customization:

Available

Warranty:

Warranty Certificate

Highlight:

High Light

Highlight:

SF6 gas analyzer for humidity testing

SF6 purity analyzer for circuit breakers

customizable SF6 decomposition tester

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000 PCS/Year

Product Description

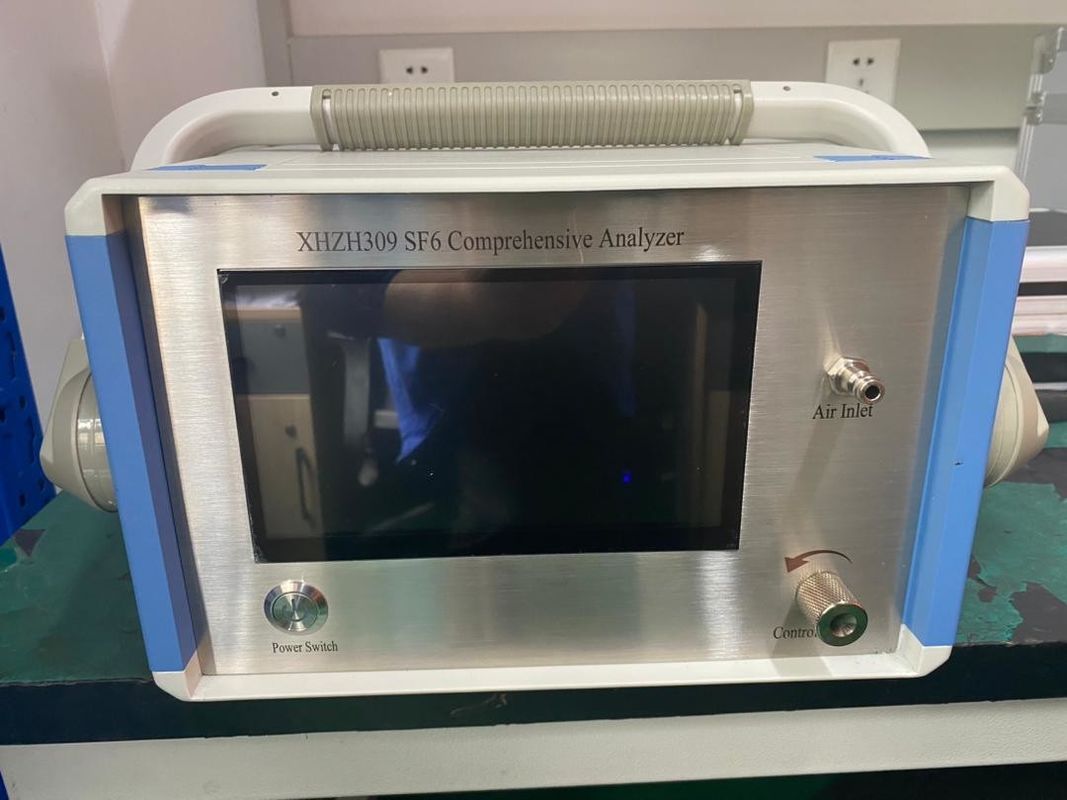

Customization XHZH309 SF6 Gas Analyzer for Humidity Purity and Decomposition Testing

SF6 comprehensive tester is a moisture meter, SF6 purity meter, SF6 decomposition products in one analyzer, will use three instruments to achieve the original function, focusing on a single instrument. A site survey, to complete the three indicators detection, gas saving devices, saving two-thirds of a measurement gas usage, while reducing the user's workload and improve work efficiency.

Rapid gas province: boot into the status of each measuring SF6 gas dew point measuring time intervals of about 5min, SF6 purity measurement time SF6 decomposition is about 2min.

Self-locking joints: Germany imported self-locking connectors, safe and reliable, no leaks.

Data storage: design of large capacity, can store up to 200 groups of test data.

curve function: Large screen curve shows the dew point measurement process.

clear display: LCD direct display dew point, moisture (ppm), SF6 purity, SO2, H2S, CO content of the ambient temperature, humidity, time and date, etc..

Built-in Power: Built 4Ah rechargeable lithium battery, a sufficient continuous work for 10 hours

Purity
Measuring range			0% to 100%
Accuracy			± 0.5%
Measuring time			<2 minutes.
Dew point measurement range			-80 ºC ~ + 20 ºC
Accuracy			± 1.0 ºC (-60 ºC ~ + 20 ºC) ± 2 ºC (-80 ºC ~ -60 ºC)
Response time		(+ 20 ºC) 63% for an 5 seconds, 90% of the required 45 seconds (-60 ºC ~ + 20 ºC) 63% of the required 10 seconds, 90% required 240 seconds (+ 20 ºC ~ -60 ºC)
H2S		measurement range	0 ~ 100ppm
		The minimum detectable amount	≤0.1ppm
		Accuracy	± 0.5%
		Repeatability	≤2%
SO2		measurement range	0 ~ 100ppm
		The minimum detectable amount	≤0.1ppm
		Accuracy	± 0.5%
		Repeatability	≤2%
CO	measurement range		0 ~ 100ppm
	The minimum detectable amount		≤0.1ppm
	Accuracy		± 0.5%
	Repeatability		≤2%
Ambient temperature			-30 ºC ~ + 60 ºC
Humidity			0 ~ 100% RH
Power			AC 220V/ Built-in rechargeable battery Battery performance Charging time(20 hours; 10 hours or more.)
Weight			5 kg
Dimensions			250 × 150 × 300mm3
Operating temperature			-40 ºC ~ + 80 ºC
