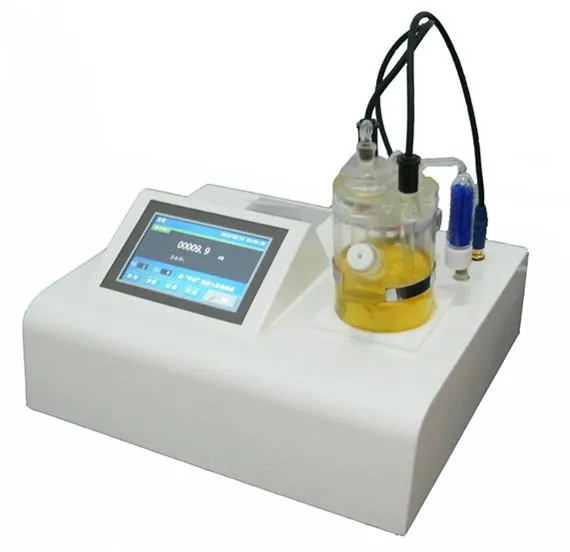

Trace Moisture Meter (Karl Fischer Coulometric Titration)|XHWS180
The Karl-Fischer coulometric titration method is the most reliable method to measure trace amounts of moisture in different substances. The XHWS180 trace moisture tester has successfully applied this method, using the most advanced automatic control circuit, a 32-bit embedded microprocessor as the main control core, and an embedded mini operating system. This makes the instrument more reliable and easier to use. It has the characteristics of fast analysis speed, simple operation, high precision and strong automation. Widely used in petroleum, chemical industry, electric power, railway, pesticide, medicine, environmental protection and other departments.
Applications & Target Audience: Engineered for industrial laboratories and transformer oil testing departments in electric power, petroleum, chemical, and railway industries that measure trace moisture in insulating oils and other industrial substances in accordance with the GB/T 7600 standard.
Main Technical Parameters
| Parameter |
Specification |
| Titration Method |
Coulometric titration (coulomb analysis) |
| Display |
Color LCD touch screen |
| Electrolysis Current Control |
0 ~ 400mA automatic control (max 2200 µg/s) |
| Measuring Range |
1 µg ~ 200 mg |
| Sensitive Valve |
0.1 µg H2O |
| Accuracy |
10 µg ~ 1000 µg ±10% |
| Printer |
Micro thermal printer |
| Power Supply |
220V ± 10% |
| Power Frequency |
50Hz |
| Power |
< 40W |
| Ambient Temperature |
5 ~ 40 °C |
| Ambient Humidity |
≤ 85% |
| Dimensions |
380 × 310 × 180 mm |
| Weight |
approx. 6 kg |
Main Features
- Uses a 32-bit embedded microprocessor as the main control core and embeds a mini operating system.
- Constant pressure detection, high precision, fast measurement speed, stable and reliable.
- Color touch screen, full numeric keyboard, easier operation, convenient and fast data calculation.
- Contains 4 calculation formulas to meet customer needs.
- The micro thermal printer has time records, making it easier to search.
- New appearance designed based on ergonomics.
- Innovative and optimized operating software, a different touch experience.
FAQ
Q1: Who is this trace moisture meter designed for?
It is designed for industrial laboratories and transformer oil testing departments in electric power, petroleum, chemical, and railway industries that measure trace moisture in insulating oils and other industrial substances.
Q2: What standard and method does it follow?
It complies with the GB/T 7600 standard and uses the Karl-Fischer coulometric titration method, the most reliable method for measuring trace moisture.
Q3: What measurement range and sensitivity does it offer?
It measures 1 µg to 200 mg with a sensitivity of 0.1 µg H2O and an accuracy of ±10% (10 µg to 1000 µg).
Q4: What makes it reliable for industrial use?
Its 32-bit embedded microprocessor with a mini operating system and 0 to 400mA automatic electrolysis control provide high-precision, fast, and stable automated measurement.
Q5: How does it differ from a conventional moisture meter?
It features a color touch screen, full digital keyboard, graph curve analysis, a micro thermal printer, and Chinese/English switching for convenient industrial testing.
