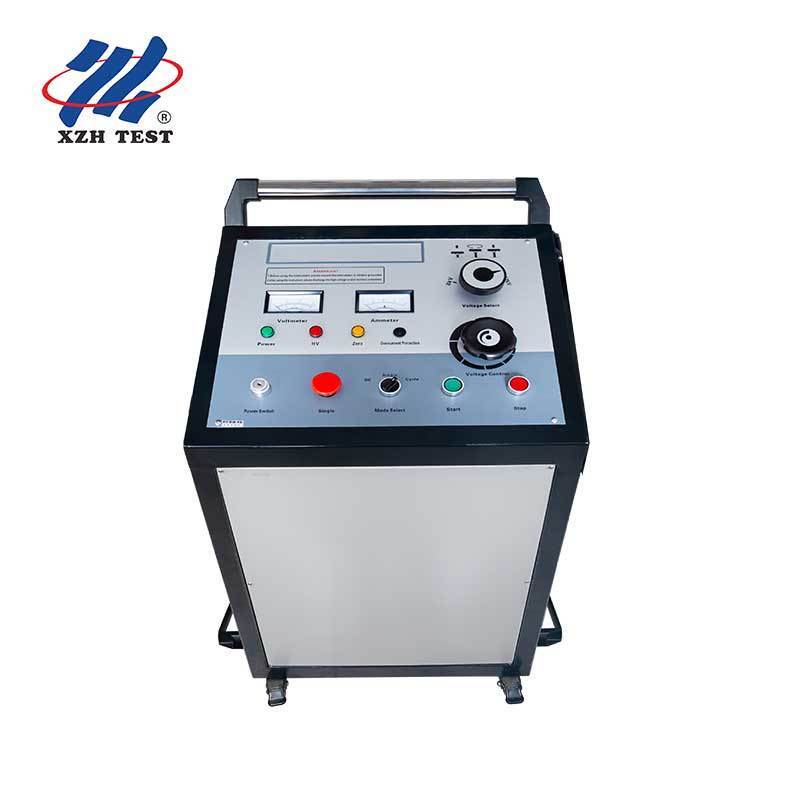

Trolley-Mounted Surge Generator Featuring Three Selectable Voltages 8 16 32kV for Cable Fault Contractors| XHHV535-4TS

Name: Trolley-Mounted Surge Generator Featuring Three Selectable Voltages 8 16 32kV for Cable Fault Contractors| XHHV535-4TS
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-4TS
Price: 15000 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE, ISO
Model Number:	XHHV535-4TS

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE, ISO

Model Number:

XHHV535-4TS

Model NO.:

XHHV535-4TS

Power:

Electricity

Customized:

Customized

Color:

Black

Transport Package:

Wooden Case

Specification:

534× 444× 805mm

Trademark:

XZH TEST

Origin:

China

HS Code:

8543201000

Supply Ability:

2000PCS/Year

Customization:

Available

After-sales Service:

Warranty Certificate

Warranty:

12 Months

Highlight:

High Light

Highlight:

Trolley-Mounted Three-Voltage Surge Generator

8 16 32kV Selectable Cable Tester

Multi-Level DC Impulse Withstand

Trading Information

Minimum Order Quantity:

1unit

Price:

Negotiable

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

Trolley-Mounted Three-Voltage Surge Generator|XHHV535-4TS Model: XHHV535-4TS

Designed for: Multi-Level Cable Fault Contractors, Utility Field Service Teams, Industrial HV Maintenance Departments

Core Value: Trolley-mounted DC impulse generator with three selectable output voltages — 8kV, 16kV, and 32kV — in a single mobile unit. Switch between voltage levels without external reconfiguration or capacitor changes. One instrument for distribution, sub-transmission, and industrial cable fault work.

Who This Equipment Is For

The XHHV535-4TS is purpose-built for field teams whose daily workload spans multiple cable voltage classes. Instead of loading three separate surge generators onto the service vehicle — one for 6-10kV distribution, one for 15-20kV industrial feeders, and one for 33-35kV sub-transmission — the 4TS puts all three voltage levels behind a single selector switch on one trolley-mounted instrument.

1Multi-Voltage ContractorsThree voltage levels, one instrument. Switch from an 11kV urban distribution fault at 08:00 to a 33kV sub-transmission fault at 10:00 without swapping equipment.

2Utility Maintenance DepartmentsStandardize your field service fleet. One XHHV535-4TS per vehicle covers all cable voltage classes in the service territory — no need to dispatch different vehicles for different fault voltages.

3Industrial Plant ElectriciansHandles the full range of in-plant cable voltages — from 6.6kV motor feeders through 11kV distribution to 33kV incomer circuits — on one trolley.

4Testing Service CompaniesAccept contracts across all MV/HV voltage classes. The three-voltage selector adapts to any client’s cable network without additional equipment investment or vehicle space.

Three Selectable Voltages — One Selector Switch, Three Instruments’ Worth of Capability

8 kVDistribution Class6kV-10kV urban and rural distribution cables, LV industrial feeders, commercial building service entrances

16 kVIndustrial Feeder Class11kV-20kV industrial plant feeders, renewable energy collector cables, medium-distance distribution circuits

32 kVSub-Transmission Class33kV-35kV sub-transmission cables, long-distance industrial incomers, wind farm collector arrays

Operational Impact: A service vehicle loaded with three separate single-voltage surge generators carries 3× the capital cost, 3× the weight, and requires technicians trained on 3 interfaces. One XHHV535-4TS replaces all three — with a single selector switch to change voltage level between jobs.

Key Specifications

Parameter	Specification
Selectable Output Voltages	8kV / 16kV / 32kV — three independent levels
Voltage Switching	Single selector switch — no external capacitor or cable reconfiguration
Output Modes	Impulse discharge (auto-timed + manual) + DC withstand voltage
Form Factor	Trolley-mounted with integrated transport handle
Safety Systems	Zero-position start, automatic discharge, overcurrent/overvoltage/overheat protection
Meter Display	Dual pointer meters — real-time kV and mA monitoring
Brand / Origin	XZH Test / China
Certification	CE, ISO

Voltage Selection — Built-in Simplicity

Select: Rotate the front-panel voltage selector to 8kV, 16kV, or 32kV — matched to the cable under test
Set to Zero: Confirm voltage adjustment knob is fully counterclockwise (yellow zero-position indicator lit)
Start: Press Start to enable HV output at the selected voltage level
Adjust: Increase voltage from zero to the desired test level within the selected range

Applications

Application	Recommended Voltage
LV/MV Distribution Cable Fault Pinpointing	8kV — urban and rural 6kV-10kV networks
Industrial Feeder Cable Fault Location	16kV — plant 11kV-20kV feeders and collector cables
Sub-Transmission Cable Fault Detection	32kV — 33kV-35kV incomer and long-distance circuits
DC Withstand Voltage Testing	Selectable per cable rating — 8/16/32kV
TDR Waveform Acquisition	Flashover transient capture at appropriate test voltage
Acoustic-Magnetic Pinpointing	Synchronized impulse across all three voltage levels

Safety & Operational Precautions

Select the correct voltage level before energizing — never change the voltage selector while HV output is active
Zero-position indicator must be lit (yellow) before pressing Start — confirms safe state
Use automatic discharge and verify voltmeter reads zero before disconnecting output cables
Press Stop immediately if any abnormal meter reading, sound, or odor is observed
Only qualified HV technicians may operate this equipment
Match the voltage level to the cable rating — do not apply 32kV to cables rated below the selected voltage
