Description
XHDD503 is a classic portable underground cable fault pinpointer independently developed and produced by our company. After more than 50 years of precipitation, the acoustic-magnetic synchronization detection technology it adopts has become very mature and widely accepted and recognized by users in the industry.

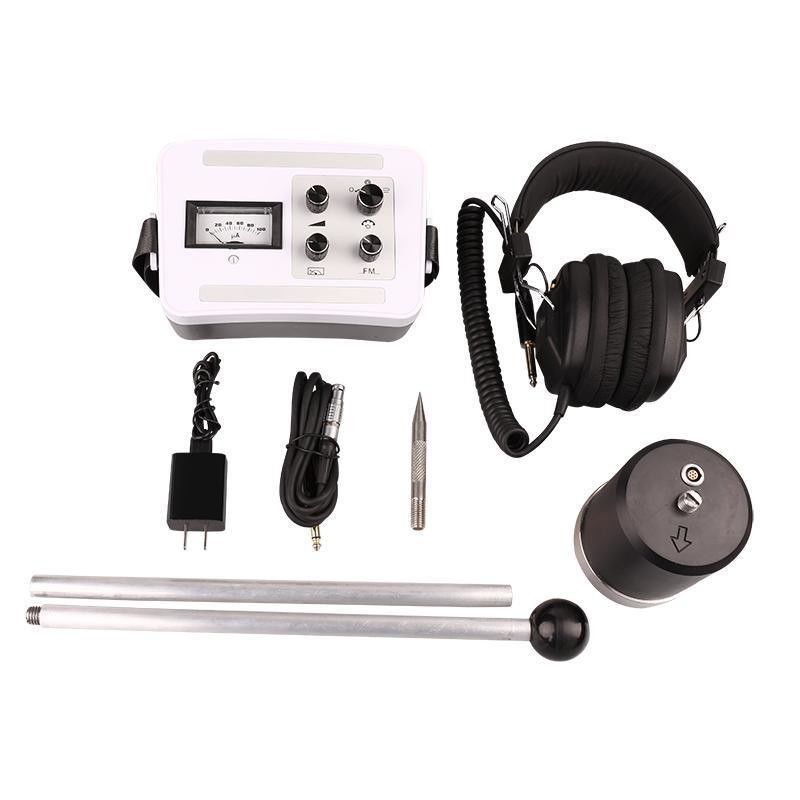

The XHDD503 cable fault locator is very small and light, it is packed in a protective PVC case, easy to carry after the user finished detection.
The XHDD503 power cable fault pinpointer is designed with a microammeter display, with electrical level adjustment, frequency adjustment and volume adjustment knobs. By observing the swing of pointer on the microammeter, you can see the magnetic field strength during the flashover discharge at the fault point. Rotate the electrical level knob to adjust the reference of the magnetic field strength. In the process of path detection, adjusting the receiving frequency can make our ears hear the path signal that is easier to identify. Adjusting the frequency knob during the process of fault location can effectively avoid the radio signal. Adjust the volume during cable fault location and cable path finding, so that our ears hear a more appropriate sound signal.
This fixed-point instrument is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires made of various materials with different cross-sections and media, as well as high-resistance leakage and high-resistance flash-over fault.
XHDD503 cable fault locator has 3 working modes: turn off, fixed point, path. When the user is used for the precise location of the fault point of the cable, the working mode is adjusted to the fixed point. The path mode means that when the locator is used with the transmitter of the path meter produced by our company, it can be used as the receiver of the path meter. So When you would like to detect cable path, the working mode can be adjusted to the path gear.
Technical Parameters
| Magnification | 500,000 times |
| Positioning accuracy | ±0.2m |
| Output impedance | 350Ω |
| Working power supply | Standard 3.7V 3200mAh battery 4 cells |
| Quiescent current | <10mA |
| Detection depth: | More than 10 meters |
| Working conditions | Ambient temperature: -25~65ºC; Relative humidity: ≤90%. |
Product Features
1. Synchronously receive vibration waves, sound waves and electromagnetic waves generated during discharge at the fault point;
2. The acoustic and magnetic channels are designed separately and powered separately, with stronger anti-interference ability;
3. Super magnification, detection depth is greater than 10 meters;
4. Ultra-low and low-power design, quiescent current is less than 10mA, and continuous operation is more than 20 hours;
5. Analog meter design, signal strength and trend are clear at a glance;
6. Zero level can be adjusted arbitrarily, suitable for various strong and weak scenes.
Welcome you contact us for more information and service!~
