Cable Fault Pinpointer with Acoustic Magnetic Time Difference Positioning Technology

Name: Cable Fault Pinpointer with Acoustic Magnetic Time Difference Positioning Technology
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503C
Price: 4,175.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHDD503C

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHDD503C

Product Name:

Cable Fault Locator

Application:

Widely

Channel Gain:

8 Adjustable

Magnetic Channel Gain:

8 Adjustable

Output Gain:

Output Gain

Output Impedance:

350Ω

HS Code:

9031809090

Highlight:

High Light

Highlight:

Cable Fault Pinpointer with acoustic magnetic technology

Cable Fault Pinpointer for accurate fault location

Cable Fault Pinpointer with time difference positioning

Trading Information

Minimum Order Quantity:

1 Uuit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

XHDD503C underground cable fault pinpoint locator

Introduction

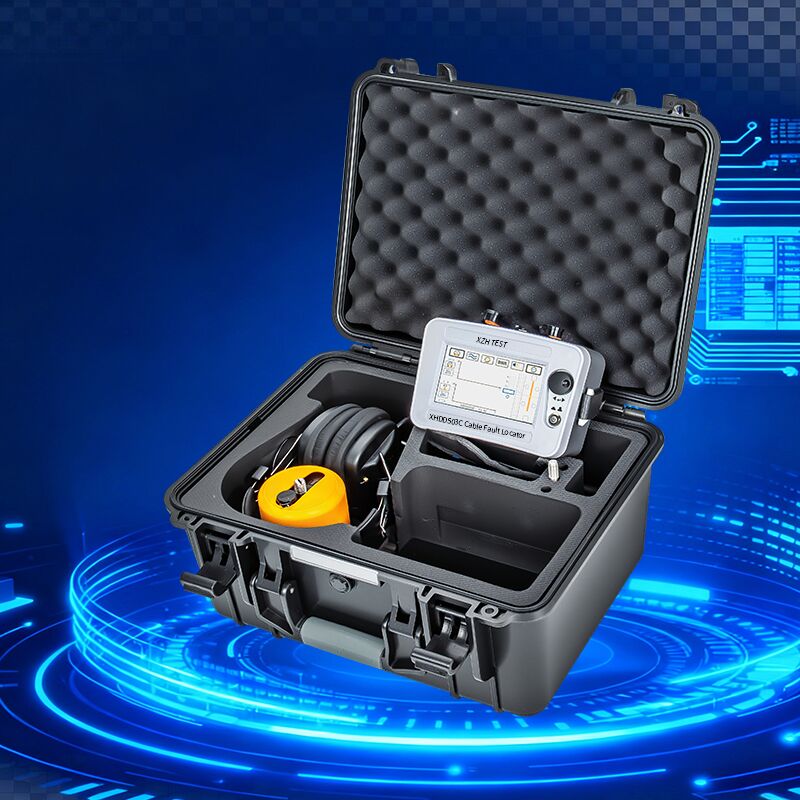

The cable fault location instrument uses acoustic-magnetic synchronization to accurately locate cable faults. An impact discharge generator produces electronic flashover, detected and amplified by a dedicated probe. Faults are pinpointed via audio-visual judgment within a rough range, collecting acoustic-magnetic signal time differences. It integrates advanced positioning tech with path testing, featuring multiple modes and prompts for efficient, precise fault location.

Features

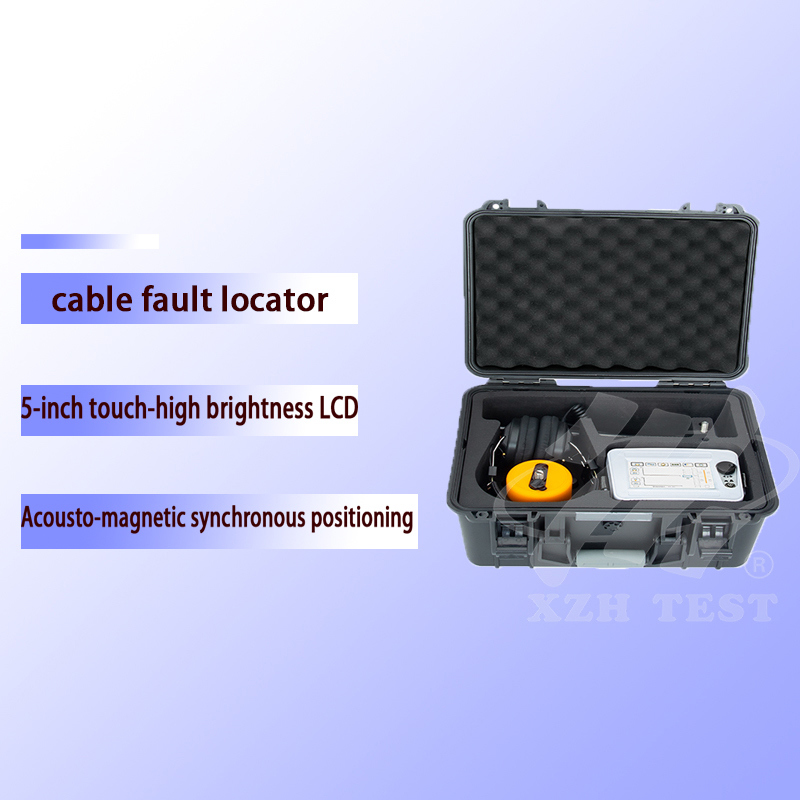

1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. Adopt acoustic and magnetic synchronous positioning technology to automatically calculate the acoustic and magnetic time difference.can be manually adjusted to adapt to various environments.
3. It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
4. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
5. Small and lightweight, easy to operate, and simple human-machine interface.

Technical indicators

Filter parameters	All-pass: 100Hz~1600Hz. Low pass: 100Hz~300Hz. Qualcomm: 160Hz~1600Hz. Bandpass: 200Hz~600Hz.
Channel gain	8 levels adjustable.
Magnetic channel gain	8 levels adjustable.
Output gain	16 levels (0~112db)
Output impedance	350Ω
Acoustomagnetic positioning accuracy	less than 0.2m.
Path identification accuracy	less than 0.5m.
Power supply	4*18650 standard lithium batteries.
Standby time	more than 8 hours.
Screen pixels	854-480
Brightness	800nit
Transmission speed unit	0-100ms
Accuracy	1ms
Sound bandwidth	100-1.6khz
Magnetic coil bandwidth	100-20kHZ
Both sound and magnetism are	greater than 75db
Ambient temperature	-25~65℃; Relative humidity: ≤90%.

Packing list

Product Details

Cable Fault Pinpointer with Acoustic Magnetic Time Difference Positioning Technology 1
