Underground Cable Fault Pinpointer with Acoustic-Magnetic Sync and A-Frame Detection

Name: Underground Cable Fault Pinpointer with Acoustic-Magnetic Sync and A-Frame Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDD503E
Price: 4,175.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	CE, ISO
Model Number:	XHDD503E

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

CE, ISO

Model Number:

XHDD503E

Model NO.:

XHDD503E

Usage:

Network Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Power:

Electricity

Customized:

Customized

Color:

Black

Filter:

200Hz-1600Hz Optional

Output Gain:

16 Levels (0~112dB)

Acoustic-Magnetic Positioning Accuracy:

Less Than 0.2m

Step Voltage Positioning Accuracy:

Less Than 0.5m

Path Identification Accuracy:

Less Than 0.5m

Transport Package:

Wooden Case

Trademark:

XZH TEST

Origin:

China

HS Code:

9031809090

Supply Ability:

2000PCS/Year

Customization:

Available

After-sales Service:

Warranty Certificate

Warranty:

12 Months

Highlight:

High Light

Highlight:

Underground Cable Fault Detection

Acoustic-Magnetic Pinpointer

A-Frame Step Voltage Locator

Trading Information

Minimum Order Quantity:

1 unit

Price:

Negotiable

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000units/year

Product Description

Description

The cable fault locator uses the principles of vibration pickup and electromagnetic induction to determine the specific location of the cable fault point. A high-voltage pulse generator is used to cause flash over discharge at the fault point. Physical phenomena such as vibration waves, sound waves, and electromagnetic waves generated by the flash over discharge at the fault point are picked up by a special probe of the pointing instrument, amplified, processed, displayed, and output by the cable fault pointing instrument. The precise location of the fault point is determined by the tester's hearing and vision. That is, the task of accurately locating the cable fault point "directly above the cable and within the range of rough measurement" is completed.
This fixed-point instrument is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires made of various materials with different cross-sections and media, as well as high-resistance leakage and high-resistance flash over fault.

Product features
1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. It has 4 test modes: standard, enhanced, noise reduction, and customized.
3. It has 4 positioning functions: acoustic-magnetic synchronization, pure acoustic, pure magnetic, and step voltage.
4. It has background noise reduction technology and can choose from a variety of filtering methods.
5. Equipped with BNR and mute functions.
4. It has path deviation indication.
5. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65.
6. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
7. Small and lightweight, easy to operate, and simple human-machine interface.

Technical specification

Filter parameters	lAll-pass: 100Hz~1600Hz.
	lLow pass: 100Hz~300Hz.
	lQualcomm: 160Hz~1600Hz.
	lBandpass: 200Hz~600Hz.
Channel gain:	8 levels adjustable.
Magnetic channel gain:	8 levels adjustable.
Step voltage gain:	8 levels adjustable.
Output gain:	16 levels (0~112db)
Output impedance:	350Ω
Acoustomagnetic positioning accuracy:	≤0.1m.
Step voltage positioning accuracy:	≤ 0.5m.
Path identification accuracy:	≤ 0.5m.
It has BNR background noise reduction and mute noise reduction functions.
Display control method:	5-inch high-brightness touch screen control.
Power supply:	4*18650 standard lithium batteries.
Standby time:	more than 8 hours.
Volume:	428L×350W×230H
Ambient temperature:	-25~65ºC; Relative humidity: ≤90%.

Instrument layout and instructions

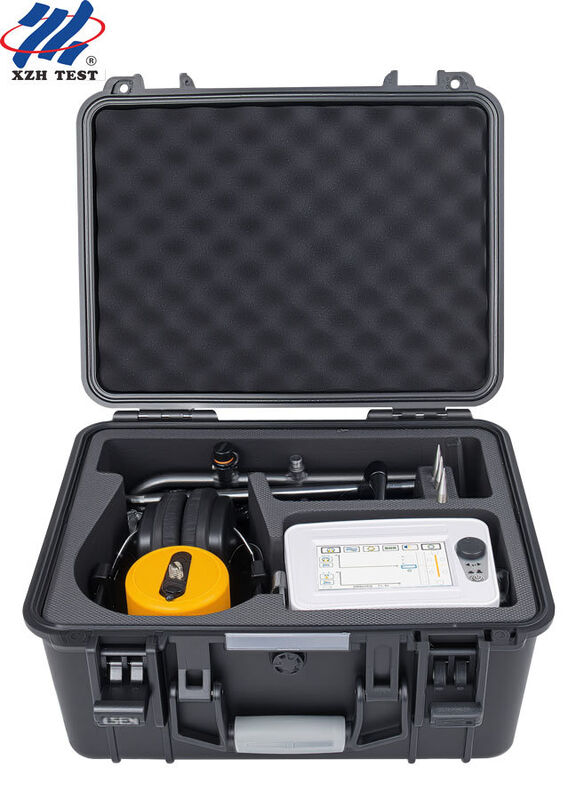

Composition of the instrument
1. Cable fault locator: accurately locate cable fault points within the rough measurement range.
2. Probe: including probe, probe, three claws, and connecting rod, connected to the input channel to receive signals.
3. Wear headphones; connect the input channel of the pointing instrument (feedback of the output signal).
4.7-core signal line: connecting cable between the pointing instrument and the probe (connecting the pointing instrument and the probe).
5. Charger: Connect to the charging socket of the instrument for charging.
6.A frame: used when testing using the step voltage method.
7. A-frame connection cable: cable fault locator and A-frame connection cable.
8. Ground pin: A matching accessory for the A-frame.

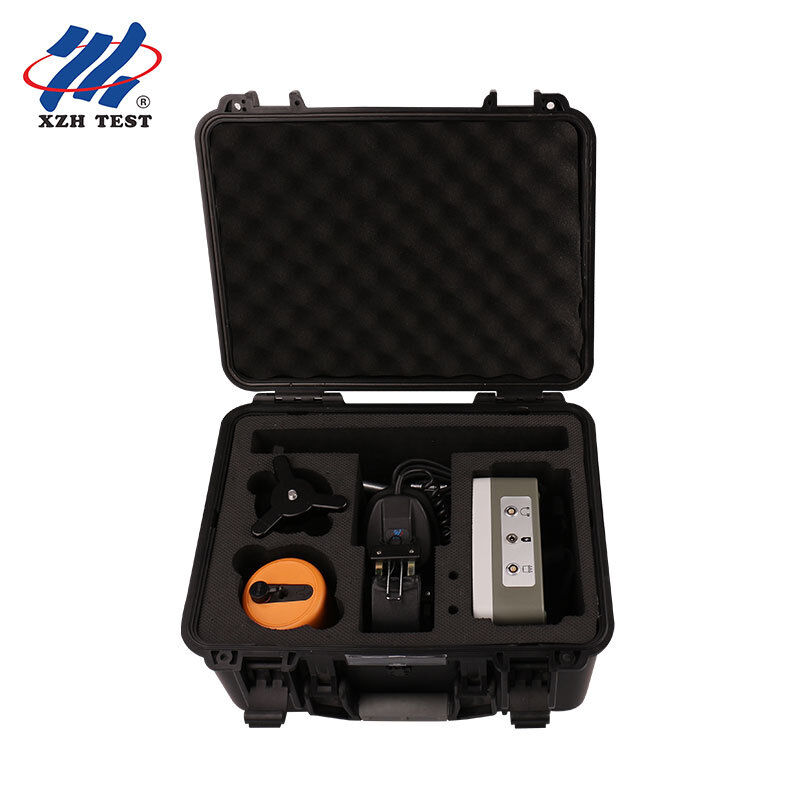

Packing list

Once the A-frame is connected, it will automatically enter the test interface as shown on the right.
Notice that at the bottom of frame A there are arrows, red and green, with red at the front and green at the back. This means that red indicates the end of the cable and green indicates the beginning of the cable.

Slowly move the A-frame along the cable burial path towards the end of the cable and observe the changes in the red and green bar graphs on the test screen. This reflects a change in the direction of the current.
At a great distance from the point of damage, the red and green bars on the screen appear slightly irregular and small.
When you get close to the fault point, for example about 5 meters from the fault point, you will notice that the red bar graph becomes very large, as shown in the image above on the left.
When you are directly above the fault point or approximately 1-2 meters in front of and behind the fault point, you will notice that the red and green bar graphs become very small and appear on the screen as shown in the image on the right above.
Once you pass the fault point, for example about 5 meters from the fault point, you will notice that the green bar graph becomes very large.
This way, by searching patiently, you can find the location of the fault.
