Loop Resistance Tester with Customization Option 100A/200A Test Current

Name: Loop Resistance Tester with Customization Option 100A/200A Test Current
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHL3100/3200
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	ISO, CE
Model Number:	XHHL3100/3200

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

ISO, CE

Model Number:

XHHL3100/3200

Model NO.:

XHHL3100/3200

Customized:

Customized

Transport Package:

Exported Wooden Case

Origin:

China

Supply Ability:

2000PCS/Year

Customization:

Available

After-sales Service:

Warranty Certificate

Warranty:

12 Months

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden case

Delivery Time:

5-8 days

Payment Terms:

T/T

Supply Ability:

2000 PCS/Year

Product Description

XHHL Series loop resistance tester is a high-precision, digital switch detection instrument developed by the company based on the IEC standard and the relevant provisions of the People's Republic of China's latest power implementation standard DL/T845.4-2004. The instrument uses high-frequency high-power constant-current switching power supply technology, which can measure the micro-ohm contact resistance. Widely used in the measurement of contact resistance, loop resistance, cable and wire and weld contact resistance of various switches and electrical appliances. The instrument has accurate measurement data and stable performance. It can meet the high-voltage switch repair and high-voltage switch factory loop resistance test of power supply and power supply departments. Claim. The output current and measurement resistance are output at the same time on the 65K true color liquid crystal. The measurement result can be stored in the U disk for voltage output. The power-off memory can satisfy the data query at any time.

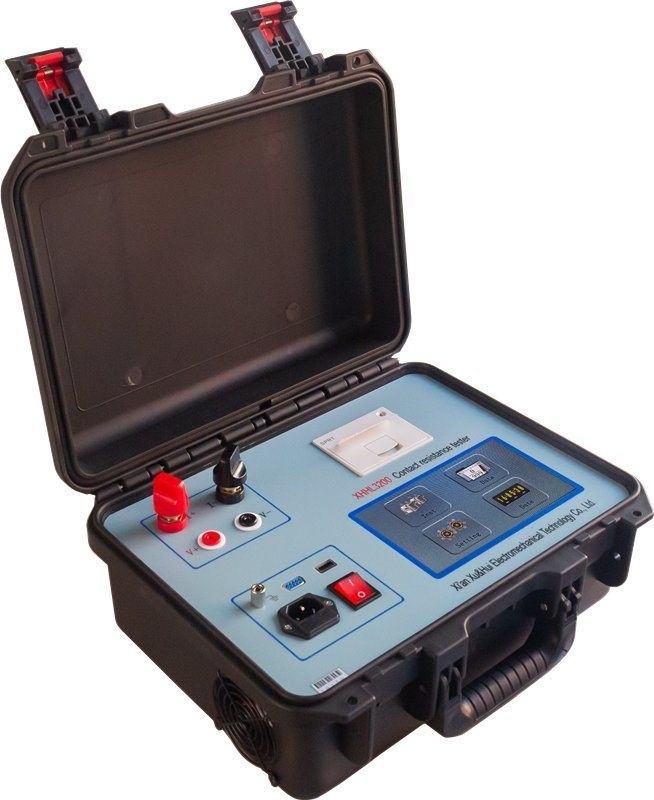

Loop Resistance Tester with Customization Option 100A/200A Test Current 0

1. High output voltage, wide measuring range

2. high-precision large current constant current power supply, no manual adjustment, quick and accurate

3. Using four-terminal wiring method, effectively ruled out the test line resistance on the test results.
4. 320*240 lattice ultra-small pixel 65K true color LCD.
5. The instrument comes with perpetual calendar clock and power-down storage, test data can be stored at any time
6. Equipped with a micro-printer, RS232 and USB interface, and computer communications and U disk storage
7. Intelligent power management technology, the instrument is always working in the minimum power state so that it can effectively save energy.

Loop Resistance Tester with Customization Option 100A/200A Test Current 1

Test Current: XHHL3100 (50A ,100A)
                      XHHL3200 (50A, 100A, 150A, 200A)

Range:    XHHL3100   (0~100mΩ(50A)   0~50mΩ(100A) )
                 XHHL3200      (0 ~100mΩ (50A)         0 ~50mΩ (100A)
                                         0 ~20mΩ (150A)           0 ~ 20mΩ (200A)
Resolution: minimum 0.1μΩ
Accuracy: ± (0.5% ± 2 words)
Power: 1000W
Working method: Timing or continuous measurement
Working power supply: AC220V±10% 50HZ(other voltage and frequency can be customized)
Operating temperature: 0~40°C

Relative humidity: less than or equal to 90% no condensation

Loop Resistance Tester with Customization Option 100A/200A Test Current 2

Loop Resistance Tester with Customization Option 100A/200A Test Current 3
