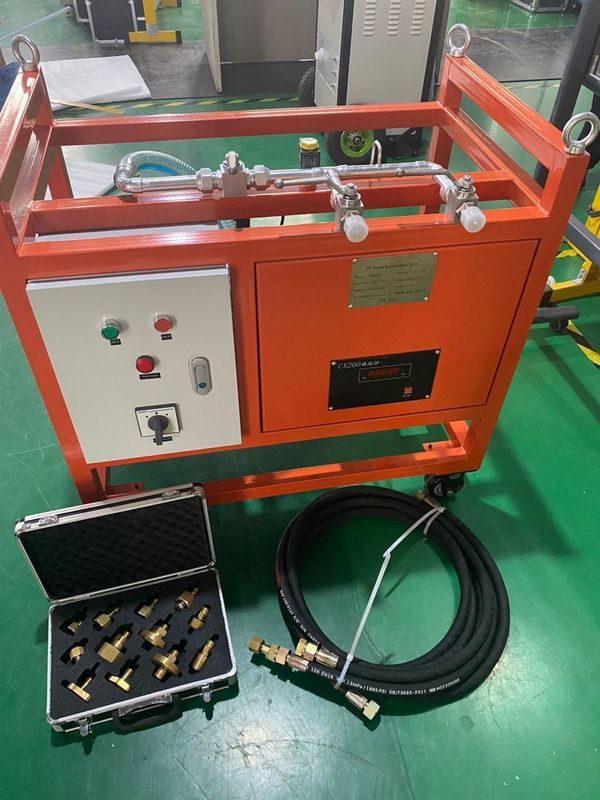

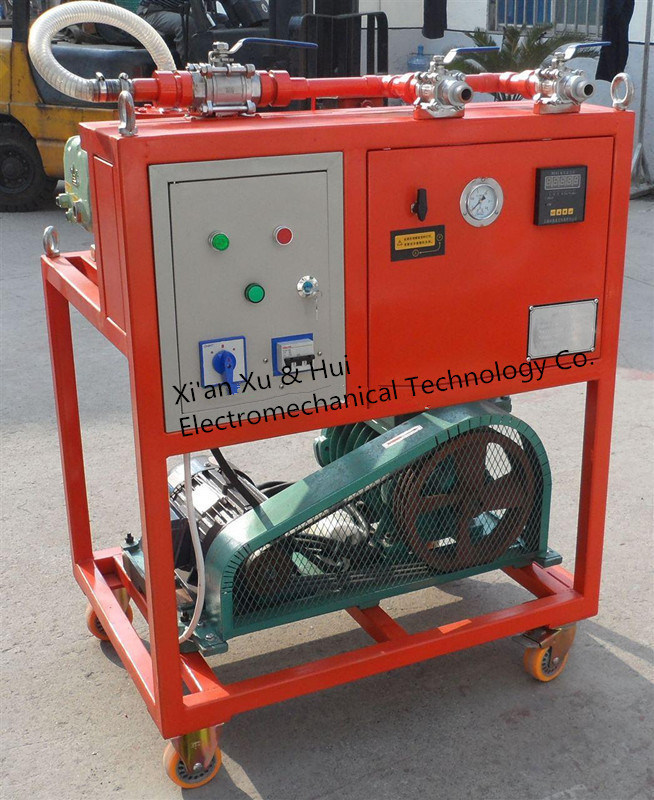

Sulfur Hexafluoride Vacuum Air Supplement Device
Product Description
Along with the rapid development of power sectors and the investment in power infrastructure and electrical equipments, especially increasing number of SF6 electrical equipment, equipment installation and maintenance are getting more demanding, and relevant departments put forward higher quality and time requirements about vacuum and recharge gas in construction and maintenance process of SF6 electrical equipment (especially GIS).
In order to meet the needs ofthedevelopment, this company has been engaged in SF6 gas electrical equipment, test and professional technology on the basis of experience for many years, has developed R2000 series SF6 gas vacuum and recharge device whose technology has reached foreign advanced equipment technology and meet the requirement of domestic user price.
R2000 series SF6 gas vacuum and recharge device is mainly applied in the power supply company, conversion engineering company, power plants, high pressure transmission station, SF6 electrical switch factory, and other departments, it is mainly used as accessory equipment in the installation and maintenance of GCBP, GCBT and GIS SF6 electrical products. The above products as well as other departmentswith this device for vacuum, recharge SF6 gas.
This device not only has all the functions of SF6 gas vacuum and recharge needed, but also has the following features:
Maxwell house vacuum gauge display (according to user,s requirements configuration other vacuum gauge);
Equipped with SF6 electrical equipment connector of imports and domestic (optional);
According to the user setup time or vacuum, automatic vacuum (optional);
A variety of protection function, effectively guarantee the safe operation of the vacuum pump;
Easy maintenance. The device use units of good performance, without maintenance for a long time.
|
Product Model
|
Vacuum pump rate(m3/h)
|
Limiting vacuum(pa)
|
Pump-down time(m)
|
|
30L
|
60L
|
180L
|
300L
|
600L
|
1200L
|
|
R2000-15
|
54
|
≤6*10-2
|
2
|
4
|
12
|
20
|
40
|
80
|
Overall dimensions:86cm×65cm×91cm
Weight:About 150Kg
Operating voltage:380~460V 50Hz Alternating Current
Noise Level:<78dB(A)
