3 Phase Microcomputer Digital Transformer Protection Relay Tester with Customization

Name: 3 Phase Microcomputer Digital Transformer Protection Relay Tester with Customization
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHJB634
Price: 4,300.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHJB634

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHJB634

Model NO.:

XHJB634

Origin:

China

HS Code:

9001100001

Supply Ability:

2000/Year

Customization:

Available

Transport Package:

Wooden Box

Specification:

428mm*350mm*230mm

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Product Description

Product Introduction

XHJB634 microcomputer relay protection calibrator is a new type of miniaturized microcomputer relay protection tester fully realized by modern advanced microelectronic technology.

Product description:

1.High performance Industrial control computer is adopted as the controlling computer, through which you can run the windows operating system directly.
2.8.4"LCD display, tracking ball and optimized keyboard are allocated on the faceplate of this tester, which can be used without the external mouse and keyboard.
3.USB interface, 10-100M net mouth and serial communication interface are located on the back plate of this tester, through which you can access data, communicate data and upgrade software conveniently.

4.The whole process and the result of the test will all be showed on the LCD.

5.The English operational interface of the complete set is very friendly and convenient.

6.The tracking ball and keyboard on the faceplate will implement the operation. The operation is simple and convenient, and is easy to be

mastered. Operator only needs a little knowledge of computer.

7.Keyboard and mouse interface are also allocated on the faceplate. If you would like to use the external mouse and keyboard, through pluging them

with corresponding interfaces, you can operate this tester just like operate a desk-top computer.

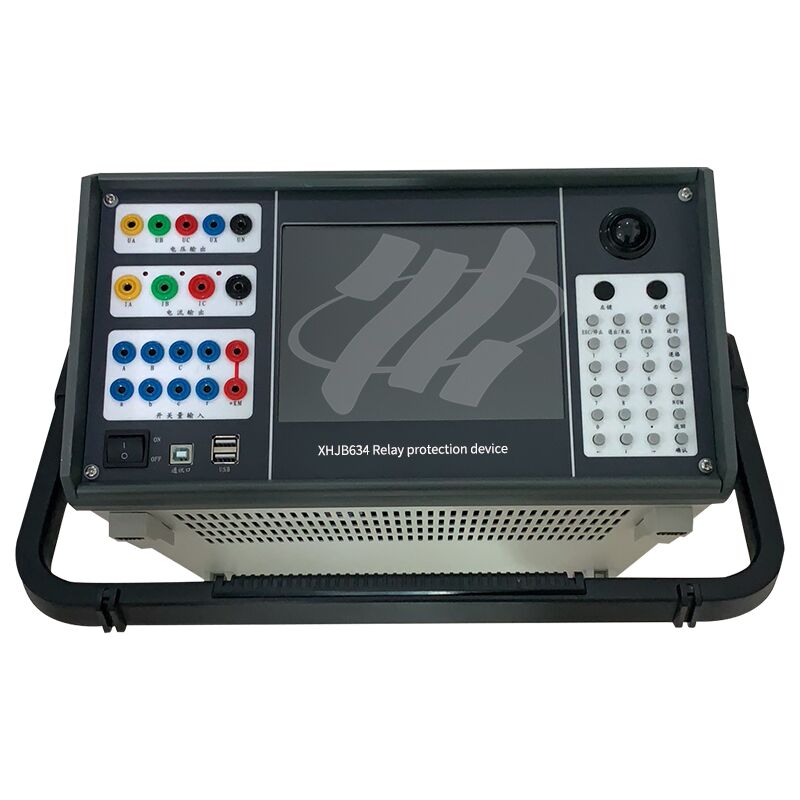

3 Phase Microcomputer Digital Transformer Protection Relay Tester with Customization 2

AC current output	output precision	class 0.2
	Phase current output (RMS)	0~40A
	Three parallel current output (RMS)	0~120A
	Phase current allowable working value for a long time (effective value)	10A
	Phase current maximum output power	420VA
	The maximum output power	900VA when the three-parallel current is at the maximum output
	When the maximum output of three parallel currents is allowed to work, the working time is 10s
	Frequency range (fundamental wave)	20~1000Hz
	Harmonic times	1-20 times
DC current output	Output accuracy	class 0.2
	Current output	0~±10A / each phase, 0~±30A / three parallel
	Maximum output load voltage	20V
AC voltage output	Output accuracy	class 0.2
	Phase voltage output (effective value)	0~120V
	Line voltage output (effective value)	0~240V
	Phase voltage/line voltage output power	80VA / 100VA
	Frequency range (fundamental wave)	20~1000Hz
	Harmonic times	1-20 times
DC voltage output	Output accuracy	class 0.2
	Phase voltage output amplitude	0~±160V
	Line voltage output amplitude	0~±320V
	Phase voltage/Line voltage output power	70VA / 140VA
