XHLJ504 Multi-function Cable Path Tracer Cable Fault Pinpointer

Name: XHLJ504 Multi-function Cable Path Tracer Cable Fault Pinpointer
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHLJ504
Price: 1220 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an city,Shaanxi,China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	XHLJ504

Detail Information

Place of Origin:

Xi'an city,Shaanxi,China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

XHLJ504

Highlight:

High Light

Highlight:

cable fault pinpointer

XHLJ504 cable path tracer

Multi-function cable path tracer

Trading Information

Minimum Order Quantity:

1unit

Price:

EXW 1220 dollars

Packaging Details:

Standard wooden package

Payment Terms:

T/T

Supply Ability:

500 units per month

Product Description

Working principle

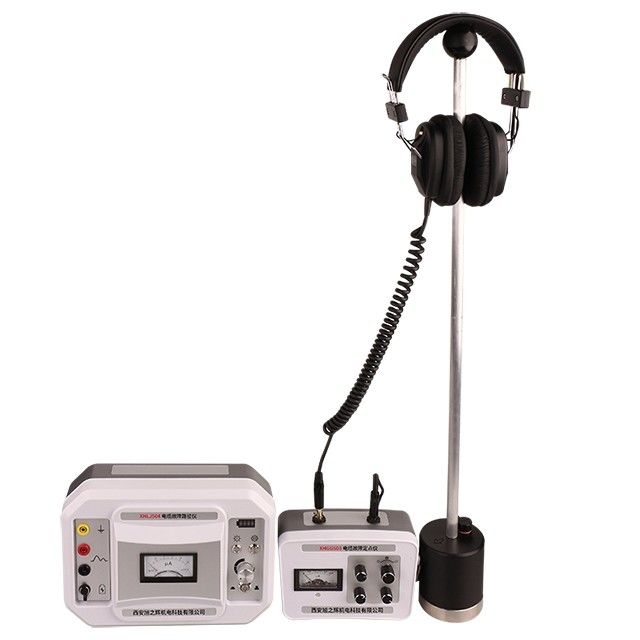

The XHLJ504 cable pipe locator is composed of a high-power path signal generator(transmitter) and receiver required for detecting buried cable paths.
The basic principle of the cable path meter is to use a path signal generator (ie, the path meter signal transmitting host) to input a path pulse signal into the cable under test, thereby generating electromagnetic waves, and then receiving them with a probe, and the receiver amplifies the received signal. After processing, the output is sent to the earphone and the pointer meter.
This cable route tracer judges the buried path and depth of the cable according to the sound peaks, sound valleys and the deflection degree of the pointer meter in the earphone.
XHLJ504 Multi-function Cable Path Tracer Cable Fault Pinpointer 0

Multi-function

The cable path receiver is used in connection with probes and headphones, etc., and can be used as a cable fault pinpointer.

XHLJ504 Multi-function Cable Path Tracer Cable Fault Pinpointer 1

Technical Parameters

Transmitter

Output signal	15kHz intermittent
Output power	100W
Output current	0～2A
Working power	220V (1±10%) 50Hz (1±5%);

Receiver

Magnification	500,000 times
Detection accuracy	±0.2m
Output impedance	350Ω
Working power supply	two standard 9V batteries
Quiescent current	<10mA

Features

1. Using the traditional electromagnetic induction principle, strong anti-interference ability.

2. With over-current and short-circuit protection functions, it is safe and reliable.

3. High power output, not limited by cable length, open circuit can also find a path.

4. The output is steplessly adjustable, suitable for various test sites, with strong adaptability.

5. Super strong magnification, the detection depth is greater than 10 meters.

6. Ultra-low power consumption design, the quiescent current is less than 10mA.

7. The design of the analog meter, the signal strength and trend are clear at a glance.

8. The zero level can be adjusted arbitrarily, which is suitable for all kinds of strong and weak scenes.

Packing list

Onsite test
