Portable 400V 11kV Underground Cable Fault Locator XHHV535-2L

Name: Portable 400V 11kV Underground Cable Fault Locator XHHV535-2L
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: 502A2+503C+507C+535-2L
Price: 15500 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE ISO
Model Number:	502A2+503C+507C+535-2L

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE ISO

Model Number:

502A2+503C+507C+535-2L

Highlight:

High Light

Highlight:

Portable 400V cable fault locator

11kV underground cable tester

XHHV535-2L fault location system

Trading Information

Minimum Order Quantity:

1 set

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

500set/year

Product Description

Product Overview

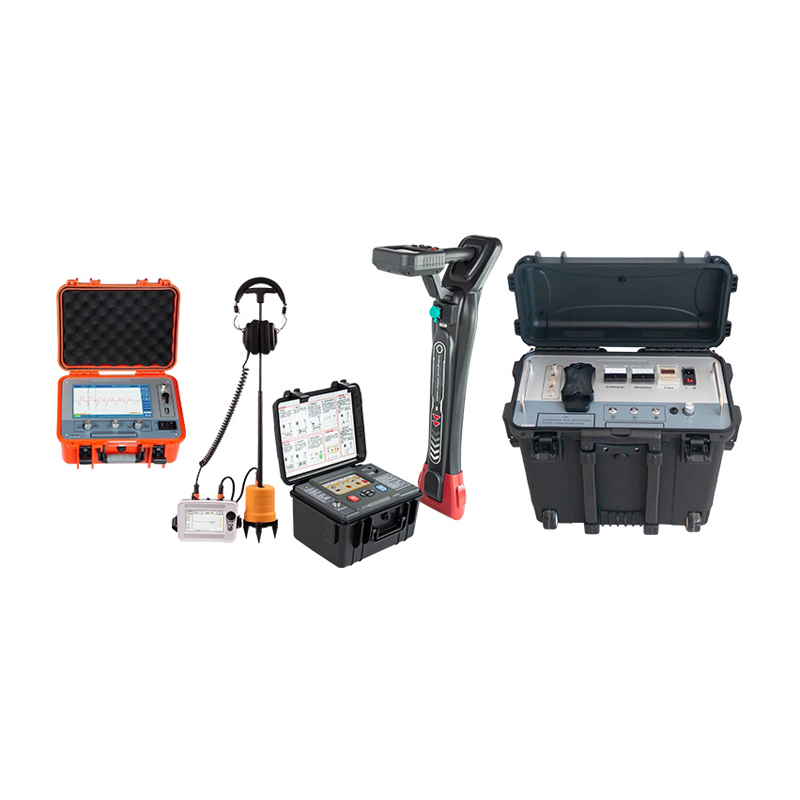

The XZH TEST Portable Cable Fault Location System (Model 502A2+503C+507C+535-2L) is an ultra-portable, four-component diagnostic platform engineered for 400 V to 11 kV underground power cable networks. At its core is the XHHV535-2L — the lightest high-voltage surge generator in its class at just 30 kg — delivering 1024 J of discharge energy with a single 2 μF capacitor for fast, efficient fault conditioning and pinpointing. Combined with the XHGG502A2 TDR cable fault pre-locator, the XHDD503C acoustic-magnetic pinpointer with 0.1 m accuracy, and the XHGX507C multi-frequency cable path comprehensive tester, this system delivers complete fault location capability in a package that can be transported and deployed by a single field technician. Designed for utility maintenance crews, electrical contractors, and industrial service teams, it is the ideal solution for rapid fault response on urban distribution, industrial plant, and rural network cables.

System Configuration

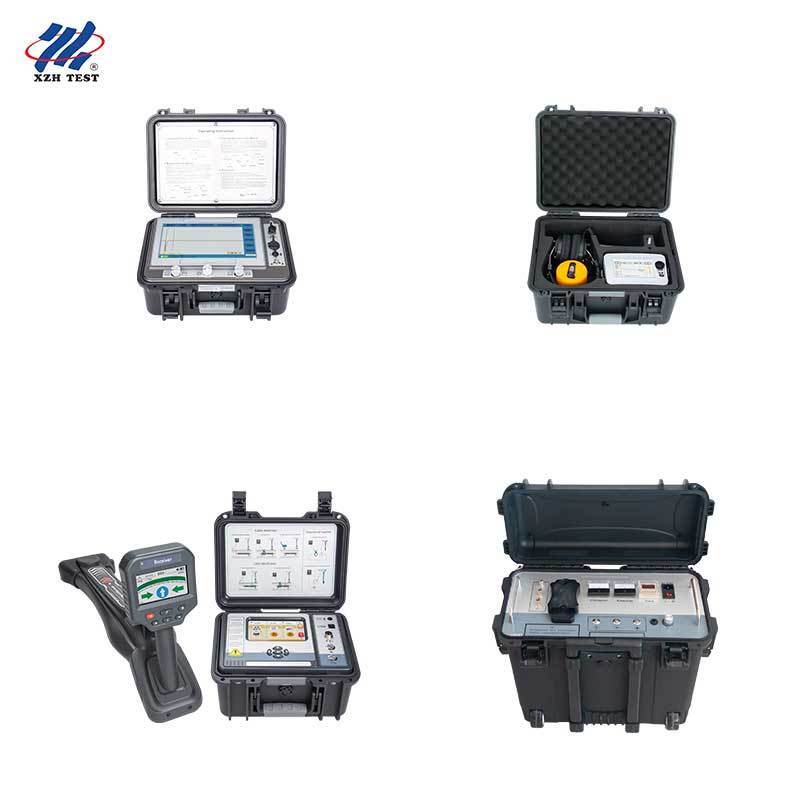

No.	Item	Model	Key Capability
1	HV Surge Generator (Portable)	XHHV535-2L	0–32 kV, 1024 J, 2 μF, ≤30 kg ultra-lightweight
2	TDR Cable Fault Pre-Locator	XHGG502A2	High-resolution TDR with multi-mode fault ranging
3	Cable Fault Pinpointer	XHDD503C	Acoustic-magnetic sync, 0.1 m accuracy, IP65, 120 dB gain
4	Cable Path Comprehensive Tester	XHGX507C	Pipeline detection, depth measurement, cable ID, A-frame

System Components

1. XHHV535-2L — Ultra-Portable High Voltage Surge Generator

1024J Impulse Energy in a 30 kg Field-Ready Package

The lightest HV surge generator available for field cable fault location. Built around a single 2 μF capacitor, it delivers up to 1024 Joules of discharge energy at 0–32 kV in both impulse (EMP) and DC withstand voltage test modes. Features continuous voltage adjustment with real-time high-voltage side metering of output voltage and current. Automatic ~6-second impact cycling with manual override provides consistent fault conditioning. Zero-start protection interlock, automatic post-operation internal capacitor discharge, and over-voltage/over-current/overheating protection ensure safe single-operator field deployment. With IP54 protection and ≤30 kg total weight, this unit eliminates the need for heavy lifting equipment or multi-person transport.

Output Voltage: 0–32 kV (continuous adjustment)
Discharge Energy: Max. 1,024 J | Capacitor: 2 μF
Impact Power: 250 W (peak) | Output Modes: EMP (impulse), DC (withstand voltage)
Min. DC Output Current: 7.5 mA @ 32 kV | Impulse Rate: Auto ~6 s
DC Withstand Voltage: 0–32 kV adjustable, 0–20 A indication
Safety: Zero-start interlock, auto-discharge, OV/OC/OT protection, IP54
Weight: ≤30 kg | Power: AC 220 V ±15%, 50/60 Hz

2. XHGG502A2 — TDR Cable Fault Pre-Locator

High-Resolution Fault Ranging for Rapid Pre-Location

Professional Time Domain Reflectometer for initial fault distance measurement on 400 V to 11 kV cables. Using traveling wave reflection principles, it rapidly measures all types of cable main insulation faults — low-resistance, short-circuit, open-circuit, high-resistance leakage, and flashover — across multiple selectable test ranges. The embedded controller provides automatic waveform capture, fault distance calculation, and data storage. Operates on an independent isolated power supply to prevent interference during impulse discharge from the surge generator, ensuring clean, reliable waveform acquisition in the field.

Test Method: LV pulse, impulse current, impulse voltage, ARC multiple pulse
Pulse Output: Unipolar | Output Impedance: Automatic match
Measurement Error: ≤±(0.5%×L+1 m), L is cable length
Propagation Speed: 10–999.9 m/μS
Signal Gain: 0–100%, adjustable
Power: Independent isolated supply, anti-interference design

3. XHDD503C — Cable Fault Pinpointer

Acoustic-Magnetic Synchronization — 0.1 m Precision

Professional digital pinpointer using acoustic-magnetic synchronization for precise fault localization. When the surge generator applies HV impulses, acoustic and electromagnetic signals propagate from the fault point. The pinpointer captures both via its IP65-rated intelligent metal probe, calculates the time difference in real time, and displays synchronized waveforms on the 5-inch TFT ultra-bright 800×480 true-color display. Operates in four modes (Standard, Enhanced, Noise Reduction, Custom) with 120 dB fully automatic/manual gain, 16-gear dynamic range, and 600 Ω military-grade noise-reduction headphones for operation in the harshest acoustic environments. Weighs just 2 kg total (host 0.6 kg + sensor 1.4 kg).

Fixed-Point Accuracy: 0.1 m | Path Accuracy: 0.1 m
Fixed-Point Modes: Standard, Enhanced, Noise Reduction, Custom (ms, waveform)
Gain: 120 dB auto/manual | Dynamic Range: 0–112 dB (16 gears)
Frequency Range: 100–1600 Hz
Display: 5-inch TFT ultra-bright 800×480 true color
Battery: 4×18650 lithium, >8 h | Waterproof: IP65
Weight: Host 0.6 kg + Sensor 1.4 kg | Temp: -25°C – +65°C

4. XHGX507C — Cable Path Comprehensive Tester

Pipeline Detection, Depth Measurement & Cable Identification

Multi-function receiver system for underground cable and pipeline route tracing. Provides cable position tracking with direction display, depth measurement, current measurement, and cable identification in a single handheld instrument. Input via built-in receiving coil, flexible caliper, or optional A-frame for step-voltage fault finding. Powered by an 8.4 V large-capacity rechargeable lithium battery, the receiver delivers all-day field operation with intuitive display guidance for one-person route tracing and cable identification in congested underground environments.

Functions: Pipeline detection (position tracking, direction, depth, current), cable ID, A-frame fault finding (optional)
Input Methods: Built-in receiving coil, flexible caliper, A-frame (optional)
Power: 8.4 V large-capacity rechargeable lithium battery
Operation: One-person field deployment with intuitive guidance display

Complete System Specifications

Parameter	Specification
System Model	502A2 + 503C + 507C + XHHV535-2L
Surge Voltage	0–32 kV (continuous adjustment)
Discharge Energy	Max. 1,024 J (2 μF capacitor)
Pre-Location Method	TDR — LV pulse, impulse current, impulse voltage, ARC multi-pulse
Pinpointing Accuracy	0.1 m (fixed point & path)
Pipeline Detection	Position tracking, depth, current, cable ID, A-frame
Total System Weight (Generator)	≤30 kg (ultra-portable class)
Target Cable Range	400 V – 11 kV underground power cables
Brand	XZH TEST
Origin	China
Certification	CE, ISO

System Function & Workflow

Fault Conditioning & Flashover (XHHV535-2L)Use DC or high-voltage pulse to make the cable fault point flash over and discharge, creating a detectable transient signal at the fault location for measurement and pinpointing.
Fault Pre-Location (XHGG502A2)Apply the traveling wave reflection principle to make a rough measurement of all types of cable main insulation faults. The TDR captures returning pulses and calculates the fault distance within seconds across multiple selectable test ranges.
Route Tracing & Cable Identification (XHGX507C)Deploy the path comprehensive tester to trace the exact cable route, measure burial depth, and positively identify the target cable among multiple underground circuits.
Surge Impulse Generation (XHHV535-2L)Apply periodic high-voltage surges (~6 s automatic cycle) to create consistent acoustic and electromagnetic transient signals at the fault point for precise localization.
Precise Pinpointing (XHDD503C)Walk the cable route with the acoustic-magnetic pinpointer using the intelligent time-difference method. Monitor the synchronized waveform display — the point where acoustic-magnetic time delay approaches zero is directly above the fault, within 0.1 m.
Cable Repair & VerificationExcavate precisely at the marked point, repair the cable, and verify service restoration with a final insulation test.

Frequently Asked Questions

Q1: What makes the XHHV535-2L different from standard surge generators?

The XHHV535-2L is the ultra-portable class leader at just ≤30 kg — less than one-quarter the weight of comparable 32 kV units. It achieves this through a single 2 μF capacitor design producing 1024 J of discharge energy, which is optimized for 400 V to 11 kV cable networks. For higher-voltage cables requiring the full 2048 J of larger systems, the XHHV535-4TS series is recommended. For 11 kV and below distribution networks, the 2L provides the ideal balance of portability and diagnostic power, enabling single-technician deployment without lifting equipment.

Q2: What cable types and fault conditions can this system detect?

The system handles all common power cable types (XLPE, PILC, EPR) from 400 V to 11 kV and all fault categories: low-resistance and short-circuit faults (via LV pulse TDR), open-circuit and broken-wire faults (via TDR pulse reflection), and high-resistance leakage and flashover faults (via impulse current/voltage and ARC multi-pulse methods). The 3-step system function — flashover discharge → traveling wave pre-location → acoustic-magnetic pinpointing — provides a complete diagnostic workflow for any cable main insulation fault.

Q3: Can this system truly be operated by one technician?

Yes, this is one of the key design goals of the 535-2L system. The surge generator weighs ≤30 kg and can be carried by one person. The TDR pre-locator operates on an independent isolated supply. The pinpointer weighs only 2 kg total and runs >8 hours on 4×18650 batteries. The path tester is a handheld receiver with intuitive guidance. For safety during high-voltage operations, standard utility protocols recommend a two-person team, but all individual instruments are single-operator capable.

Q4: What is included in a standard system purchase?

Each system includes all four core instruments, test cables, connection adapters, chargers, headphones, and comprehensive user manuals. The XHDD503C pinpointer includes the 600 Ω military-grade noise-reduction headphone set. The XHGX507C path tester includes the built-in receiving coil and flexible caliper; the A-frame for step-voltage fault finding is available as an optional accessory. All components ship in reinforced wooden cases for international transit.

Q5: What are the delivery, warranty, and supply terms?

Standard delivery time is 5–8 working days. Each system is packaged in reinforced export-grade wooden cases with foam cushioning. XZH TEST provides standard manufacturer warranty with optional extended coverage. Minimum order quantity is 1 set, with T/T payment terms. Annual supply capacity is 500 sets, ensuring availability for both trial purchases and fleet procurement.

Packaging & Delivery

Item	Detail
Packaging	Reinforced wooden cases with internal foam cushioning
Delivery Time	5 – 8 working days
Supply Capacity	500 sets per year
Minimum Order Quantity	1 set
Payment Terms	T/T
