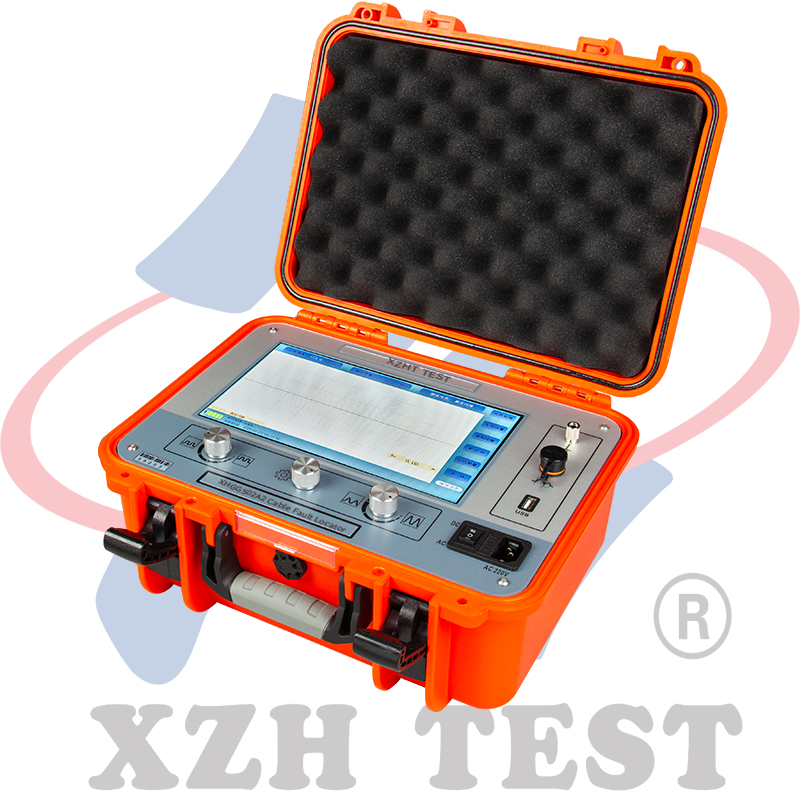

Industrial Cable Fault Locator TDR with 80MHz Sampling Frequency and ≥65km
  • Industrial Cable Fault Locator TDR with 80MHz Sampling Frequency and ≥65km
  • Industrial Cable Fault Locator TDR with 80MHz Sampling Frequency and ≥65km

Industrial Cable Fault Locator TDR with 80MHz Sampling Frequency and ≥65km

Product Details:
Place of Origin: China
Brand Name: XZH TEST
Certification: CE/ ISO
Model Number: XHGG502A2
Detail Information
Place of Origin:
China
Brand Name:
XZH TEST
Certification:
CE/ ISO
Model Number:
XHGG502A2
Highlight:

High Light

Highlight:

Industrial cable fault locator TDR

,

Cable fault locator touch display

,

10.1-inch TDR cable tester

Trading Information
Minimum Order Quantity:
1 SET
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description
Industrial Cable Fault Locator TDR with 10.1-inch Touch Display
XHGG502A2 Cable Fault Tester
Introduction
This industrial-grade cable fault tester features a 10.1-inch touch-integrated computer with a user-friendly interface. Built with industrial-grade integrated circuits and a large-capacity lithium-ion battery, it delivers stable, reliable performance for measuring and analyzing power cable status and fault distances. Combining modern electronic and computer technologies, it performs signal filtering, data acquisition, processing, and graphic analysis for comprehensive cable testing.
Features
  • 10.1-inch full-color TFT touch display
  • Embedded system with safe, stable operation and simple interface
  • Tests cable wave speed, length, and fault distance
  • Fully automatic continuous sampling with real-time waveform capture
  • Automatic test range setting and distance display
  • English menu with touch and button operation options
  • Supports low-voltage pulse and high-voltage flashover testing methods
Technical Indicators
Parameter Specification
Sampling frequency 80MHz
Low voltage pulse amplitude 100V±15%
Ranging range ≥65km
Test range 300m/1km/5km/25km/65km
Pulse width 0.125uS/0.50uS/2.50uS/7.25uS/10.0uS
Minimum resolution 0.1m
Test blind area ≤20m
Measurement error ≤±(0.5%*L+1m), L is the cable length
Power supply mode AC110V~240V, 50Hz/60Hz
Dimensions & weight 358mm*284mm*168mm - 4.7kg
Operating conditions -20ºC~+65ºC, 90% humidity, 750±30mmHg
Product Details
Industrial Cable Fault Locator TDR with 80MHz Sampling Frequency and ≥65km 0 Industrial Cable Fault Locator TDR with 80MHz Sampling Frequency and ≥65km 1 Industrial Cable Fault Locator TDR with 80MHz Sampling Frequency and ≥65km 2
