Portable Underground Cable Spiker with Remote Control

Cable Spiker
Shooter: 2 spiking bodies;
Remote control distance:more than 10 meters, you can remote
control through the wall;
Control line length:5 meters;
Fixture diameter:q30-150mm;
Working power supply: charging AC 220V/50Hz, the built-in battery
can work continuously for more than 10 hours;
Controller:270x230x120mm 2.5kg;

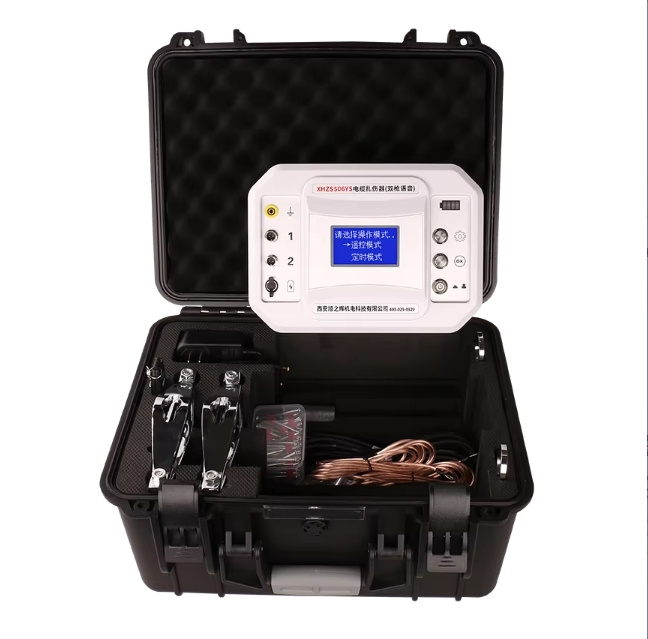

Whole set:470x380x210mm15.5kg (double tools)

The cable spiker is a special equipment, mainly used for further destructive identification of cables after cable identification and before sawing. In the process of power cable construction, when migrating and repairing the laid cables, it is often necessary to saw off the relevant cables. In order to ensure the operator's personal safety foolproof. First of all, it is necessary to judge whether the relevant cables on site are live or not. Only after confirmation can the relevant cables be sawed off. Operation interface introduction

​​​1. Grounding: grounding point of the instrument, safety protection;

2. Output 1: used to connect to the gun body;

3. Output 2: used to connect to the gun body;

4. Charging: DC12V charging port, connect to a 12V charger to start charging;

5. Switch: turn on/off the working power;

6. Confirm (OK): operation function confirmation key;

7. Select: select the working mode of the controller;

8. Power indicator: real-time indication of battery power when the built-in battery is working;

9. LCD screen: display the operation content and control process.

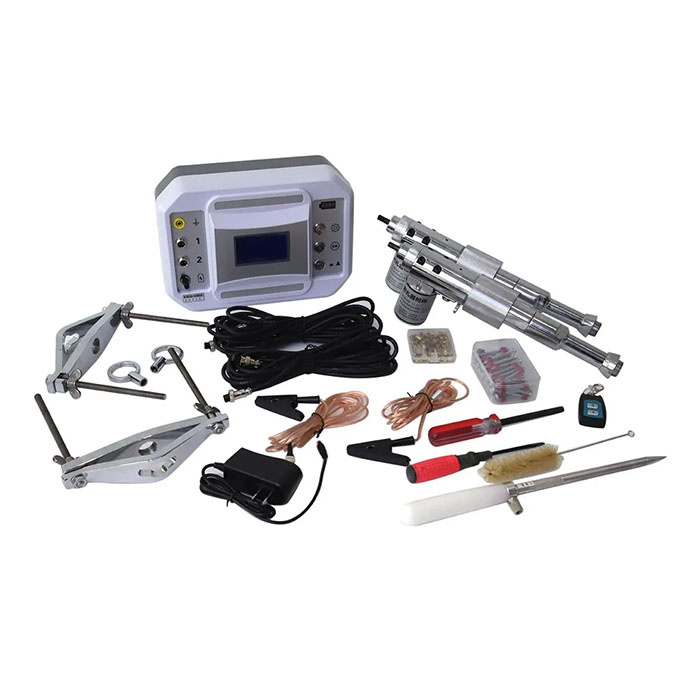

Packing list

1. Controller: control the shooter to carry out the cable puncture action process;

2. Remote control: The two buttons (A.B) of the remote control correspond to output 1 and output 2 of the controller;

3. Bullet: Loaded into the chamber when stabbing;

4. Shooting nails: put them into the nail tube when stabbing;

5. Shooter

6. Output line: the connection line between the controller and the shooter;

7. Ground wire: the connection wire between the shooter and the ground drill;

8. Ground drill: Generally, there is no formal grounding point on site, so find a reliable ground to insert;

9. Screwdriver, socket, test tube brush: accessories for cleaning the shooter;

10. Power cord (charger): Control box charging cable.
