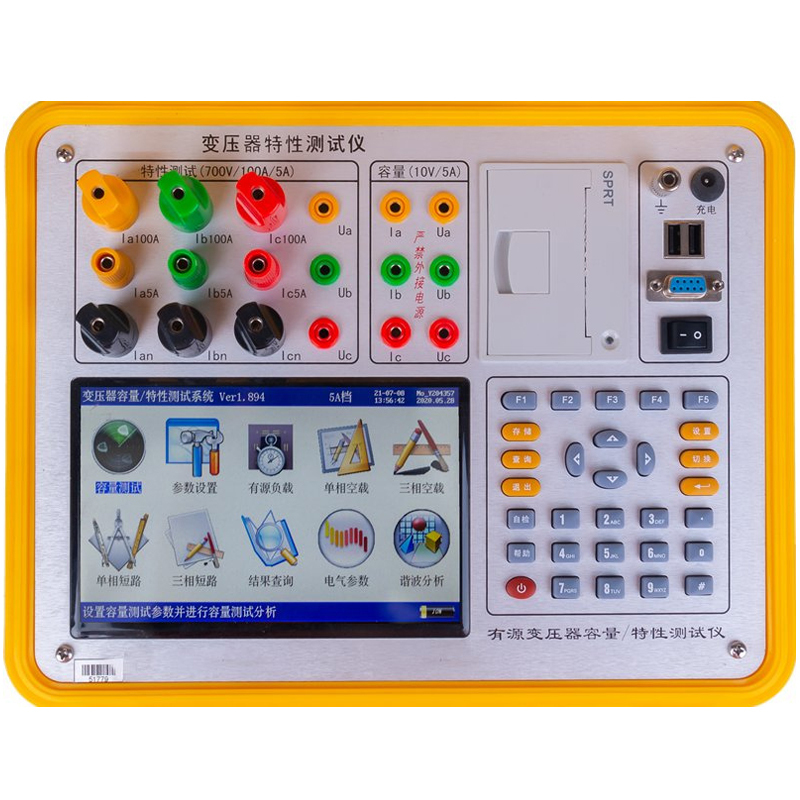

Transformer Capacity and Loss Tester| XHTX1318
The XHTX1318 transformer characteristic tester is a multifunctional measuring instrument that combines the capabilities of a transformer capacity tester and a transformer characteristic parameter tester. It provides precise measurement of power frequency parameters including transformer capacity, type, no-load current, no-load loss, short-circuit (load) loss and impedance voltage for various distribution and power transformers, helping users quickly verify transformer ratings and energy efficiency performance on site.
Applications & Target Audience: Designed for transformer manufacturers (capacity and loss acceptance testing), power supply utilities (electricity inspection and transformer rating verification), substation commissioning teams (no-load and load loss measurement), third-party electrical testing institutes, and industrial power departments in mining, metallurgy and rail transit that need fast on-site verification of transformer capacity, no-load loss and load loss parameters.
Key Specifications
| Capacity Test Range |
10KV oil immersed/dry transformer: 30KVA~2500KVA
35KV oil immersed transformer: 50KVA~31500KVA
20KV dry type transformer: 50KVA~2500KVA
35KV dry type transformer: 50KVA~2000KVA |
| Voltage Measurement |
0~450V (phase), 0~1000V (line) |
| Current Measurement |
0~100A |
| Frequency Measurement |
45Hz~65Hz |
| Test Accuracy |
Voltage: ±0.2% FS (20~100V), ±0.2% (100~450V)
Current: ±0.2% FS (0.5~10A), ±0.2% (10~100A)
Power: ±0.5% (CosΦ>0.1), ±1.0% (0.02<CosΦ<0.1) |
| Display |
320×240 large screen high-brightness LCD with Chinese/English menu |
| Data Storage |
500 test results with power-down protection |
| Preset Parameters |
User-configurable presets for 40 test sample parameters |
| Printer |
Built-in thermal printer for immediate result printing |
| Insulation Strength |
Input terminals to housing ≥100MΩ; power input withstand 2KV (effective) for 1 minute |
| Environmental Conditions |
Temperature: -5°C~40°C; humidity <95% (25°C); altitude <2500m |
| Power Supply |
220VAC±10%, 45Hz~55Hz |
| Dimensions |
400×300×220mm |
| Weight |
10kg |
Advanced Features
- Accurate capacity measurement for various distribution and power transformers
- Measurement of no-load current, no-load loss, short-circuit voltage and short-circuit (load) loss
- Automatic range switching with wide test voltage and current ranges
- Automatic wiring verification with three-phase voltage and current vector display
- Full current load testing for transformers below 1000KVA
- 320×240 large screen high-brightness LCD with Chinese/English menu
- User-configurable presets for 40 test sample parameters
- Built-in real-time electronic clock and thermal printer for immediate result printing
- Storage capacity for 500 test results with power-down protection
- Compatible with external voltage and current transformers for extended range measurement
FAQ
Q1: What parameters can the XHTX1318 transformer characteristic tester measure?
It measures transformer capacity, type, no-load current, no-load loss, short-circuit (load) loss and impedance voltage, covering the key power frequency parameters needed for transformer rating verification and energy efficiency assessment.
Q2: What is the capacity test range of this tester?
For 10KV oil immersed and dry type transformers the range is 30KVA~2500KVA; for 35KV oil immersed transformers it reaches 50KVA~31500KVA; 20KV and 35KV dry type transformers are supported from 50KVA~2500KVA and 50KVA~2000KVA respectively.
Q3: What is the measurement accuracy?
Voltage accuracy is ±0.2%, current accuracy is ±0.2%, and power accuracy is ±0.5% (CosΦ>0.1) or ±1.0% (0.02<CosΦ<0.1), ensuring reliable test results for field acceptance and inspection work.
Q4: How are test results stored and printed?
Up to 500 test results can be stored with power-down protection, and the built-in thermal printer allows immediate result printing at the job site. 40 user-configurable sample presets speed up repeated testing.
Q5: Can the measurement range be extended?
Yes. The instrument is compatible with external voltage and current transformers, allowing extended range measurement beyond the built-in 0~100A current and 0~1000V line voltage ranges.
