XHDD503E Cable Fault Pinpointer with Acoustic-Magnetic Sync for Underground Cables

Fast and accurate fault point location for various cable types with advanced detection technologies.

The cable fault locator uses vibration pickup and electromagnetic induction principles to precisely locate cable faults. A high-voltage pulse generator creates flash over discharge at the fault point, with resulting vibration waves, sound waves, and electromagnetic waves detected by the instrument's special probe.

This instrument is suitable for locating various faults in power cables, high-frequency coaxial cables, street light cables, and buried wires, including low-resistance, short-circuit, open-circuit, high-resistance leakage, and high-resistance flash over faults.

• 5-inch touch-high brightness LCD for sunlight visibility
• 4 test modes: standard, enhanced, noise reduction, and customized
• 4 positioning functions: acoustic-magnetic synchronization, pure acoustic, pure magnetic, and step voltage
• Background noise reduction technology with multiple filtering options
• BNR and mute functions for improved signal clarity
• Path deviation indication for accurate tracking
• Multi-layer physical isolation signal sensors with IP65 waterproof rating
• Built-in large-capacity lithium battery with fast charger
• Compact and lightweight design with simple operation interface

1. Acousto-magnetic synchronization method: Combines traditional acoustic measurement with electromagnetic signal detection for precise fault location by measuring time differences between signals.

2. Pure sound method: Uses acoustic vibration sensors to convert sound signals into electrical signals for fault point identification through headphones or display.

3. Pure magnetic method: Determines cable path and fault location through pulse signal characteristics detected by induction coils.

4. A-frame method: Utilizes potential difference measurements to locate ground faults in buried cables through electric field analysis.

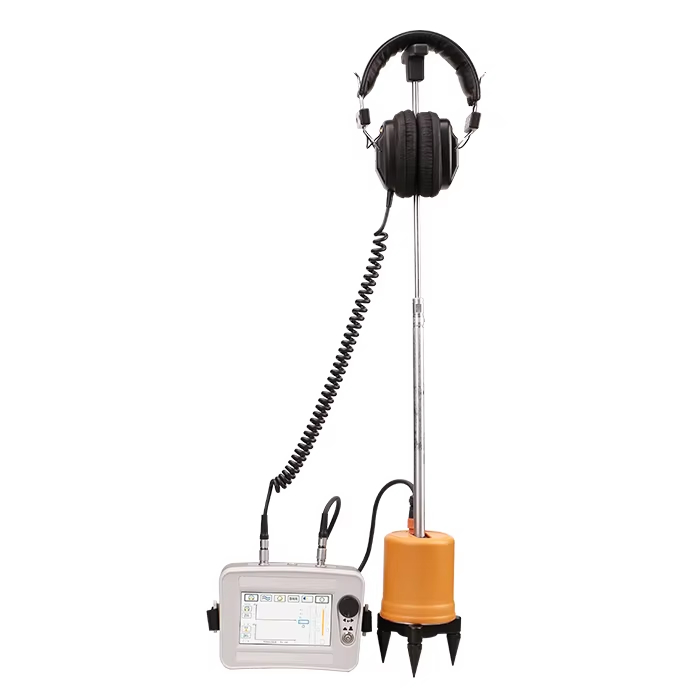

• Cable fault locator main unit
• Probe with three claws and connecting rod
• Headphones for signal feedback
• 7-core signal line for instrument-probe connection
• Charger for battery replenishment
• A-frame for step voltage testing
• A-frame connection cable
• Ground pin accessory
