Cable Spiker XHZS506S Dual-Gun Destructive Cable Verification 30-150mm Clamp with Wireless Remote Control

Name: Cable Spiker XHZS506S Dual-Gun Destructive Cable Verification 30-150mm Clamp with Wireless Remote Control
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZS506S
Price: 1,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHZS506S

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHZS506S

Highlight:

High Light

Highlight:

Dual-Gun Destructive Cable Verification

Wireless Remote Wall Penetration Control

Battery AC/DC 30-150mm Clamp

Trading Information

Minimum Order Quantity:

1 unit

Price:

Negotiable

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

Product Overview

The XHZS506S Cable Spiker serves a fundamentally different role from cable identifiers and route tracers — it is the last line of defense before cutting a cable. While cable identifiers (XHSB505B/DS) answer "which cable?" and route tracers (XHLJ504L) answer "where does it go?", the cable spiker answers the most critical question on the job site: "Is this cable truly DEAD?"

Through mechanical puncture, the XHZS506S creates a short circuit point that provides absolute physical confirmation: if the cable is electrified, it will explode when punctured; if not, no reaction occurs. This destructive verification method is the only fail-safe way to confirm cable status before cutting, and is a mandatory safety protocol in power cable construction, maintenance, and migration projects.

⚠️ Critical Safety Role in Cable Workflow

The XHZS506S Cable Spiker is positioned as the FINAL step in a complete safety protocol: Step 1: Use a cable identifier (XHSB505B/DS) to determine which cable is the target. Step 2: Use a route tracer (XHLJ504L) to confirm the cable path. Step 3: Use the cable spiker (XHZS506S) for destructive verification — the absolute confirmation that the right cable has been selected and is safe to cut. No other instrument can provide this level of physical certainty.

Key Specifications

Model Number

XHZS506S

Gun Configuration

Dual Gun Bodies (2 shooters)

Power

1.5kVA (Intermittent Momentary)

Clamp Diameter

φ30-150mm

Remote Control

>10m (Wall Penetration Capable)

Control Line Length

5 meters (Wired)

Power Supply

AC 220V/50Hz Charging; 10+ Hours Battery

Controller

270×230×120mm, 2.5kg

Complete Set Weight

15.5kg (Double Gun 506Y)

Dimensions

470×380×210mm

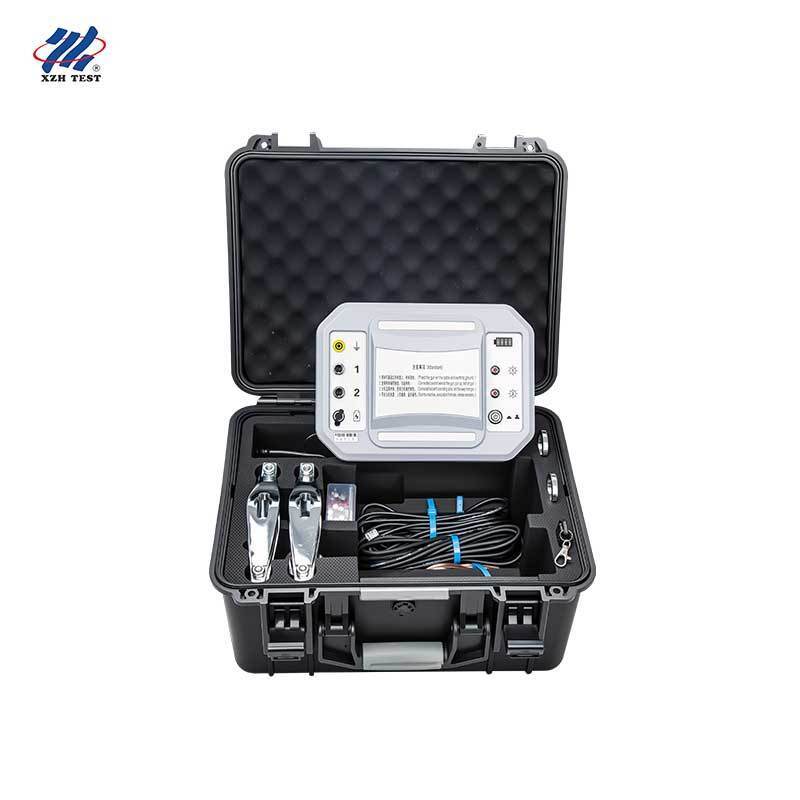

System Components

Controller: Manages cable puncture action process with real-time battery indicator and dual output monitoring
Remote Control: Buttons A/B correspond to Output 1/2 — wireless operation with >10m range and wall penetration capability
Bullets: Four power levels (Black/Smallest, Blue/Small, Yellow/Middle, Red/Big) for different cable voltage ratings
Nails: Sized by cable diameter (PS27C8 through PS52C8) for precise puncture of cables from 30-100mm
Dual Shooters: Two gun bodies ensure effective puncture even when mounting angles aren't ideal — at least one creates a short circuit
Ground Drill & Wire: Creates grounding point when none exists on site for proper safety protocol

Nail Selection Guide

Cable Diameter	30mm	40mm	50mm	60mm	70mm	80mm	90mm	100mm
Nail Spec	PS27C8	PS37C8	PS47C8	PS52C8	Consult specification sheet

Bullet Power Selection

Specification	Black	Blue	Yellow	Red	Recommendation
Power Level	Smallest	Small	Middle	Big	≤35kV: Yellow (S1) >35kV: Red (S1, 6.8×11mm)

Standard configuration: 50 rounds S1 red bullets + 50 rounds PS57C8 nails.

Key Features

Dual-gun design ensures effective operation — at least one gun body creates a short circuit point even at non-ideal angles
Dual control system: wired (5m cable) + wireless remote (>10m, wall penetration) for maximum operator safety distance
Versatile power: AC 220V charging with built-in lithium battery providing 10+ hours of continuous field operation
Wide clamp range φ30-150mm covers the vast majority of power cable diameters encountered in field work
1.5kVA intermittent momentary power for reliable puncture without excessive energy consumption
Four bullet power levels (Black/Blue/Yellow/Red) matched to cable voltage ratings for precision control
Multiple nail specifications (PS27C8-PS52C8) ensure correct puncture depth for each cable diameter
Compact and lightweight design (15.5kg complete) with integrated carrying case for field mobility

Operation Interface

Frequently Asked Questions

Q1: Who needs a cable spiker and where does it fit in the workflow?

The cable spiker is essential for any team that cuts power cables — construction crews, maintenance teams, and cable migration specialists. It is the FINAL safety checkpoint in the cable identification workflow: after a cable identifier (like XHSB505B/DS) determines which cable is the target, and a route tracer confirms its path, the cable spiker provides absolute physical verification that the cable is dead before any cutting begins. This three-step protocol eliminates the risk of accidentally cutting live cables, which can cause fatal injuries, equipment damage, and extended power outages.

Q2: How is the cable spiker different from a cable identifier?

A cable identifier is a NON-DESTRUCTIVE instrument that uses electromagnetic signals to determine which cable you are looking for among many — it provides electronic identification. A cable spiker is a DESTRUCTIVE device that physically punctures the cable to confirm its status through mechanical means. If the cable is live, the puncture creates an explosive short circuit (confirming it is dangerous to cut); if dead, nothing happens (confirming it is safe). The cable spiker provides the ultimate physical verification that electronic instruments cannot offer, making it the mandatory final step before any cable cutting operation.

Q3: Why does the XHZS506S have dual gun bodies?

The dual-gun (twin shooter) design provides redundancy for safety: even when mounting angles are not placed at the ideal 60 degree angle due to space constraints in crowded cable trenches, at least one gun body will successfully create a short circuit point. This design eliminates the risk of a single-gun system failing to puncture properly due to positioning limitations. Both guns can be operated independently via the dual-output controller (Output 1 and Output 2) with separate indicator lights and wireless remote buttons A/B.

Q4: How does the wireless remote control improve safety?

The wireless remote control (>10m range, wall penetration capable) allows the operator to stand at a safe distance when triggering the puncture. This is critical because if the cable turns out to be live, the puncture creates a violent short circuit that could injure anyone nearby. The wall penetration feature means the operator can even be in a separate room or behind a protective barrier. Combined with the 5m wired control line as backup, this dual remote capability provides the maximum possible operator safety during the most dangerous step of cable work.

Q5: How do I select the correct bullet and nail for different cables?

Nail selection depends on cable diameter: PS27C8 for 30mm, PS37C8 for 40mm, PS47C8 for 50mm, and PS52C8 for 60mm cables. Bullet selection depends on cable voltage: use S1 Yellow (middle power) for cables rated 35kV and below; use S1 Red (big power, 6.8×11mm) for cables rated above 35kV. Standard configuration includes 50 rounds of S1 red bullets and 50 rounds of PS57C8 nails. Always verify the correct specification before operation — using insufficient power may fail to puncture, while excessive power may cause unnecessary equipment stress.

About XZH TEST

XZH TEST is a professional manufacturer specializing in cable testing, identification, fault detection, and safety verification solutions for power utilities, construction teams, and industrial customers worldwide. With a comprehensive product line including cable identifiers, route tracers, cable spikers, and diagnostic systems, XZH TEST delivers reliable safety-critical field equipment designed for the most demanding professional applications.
