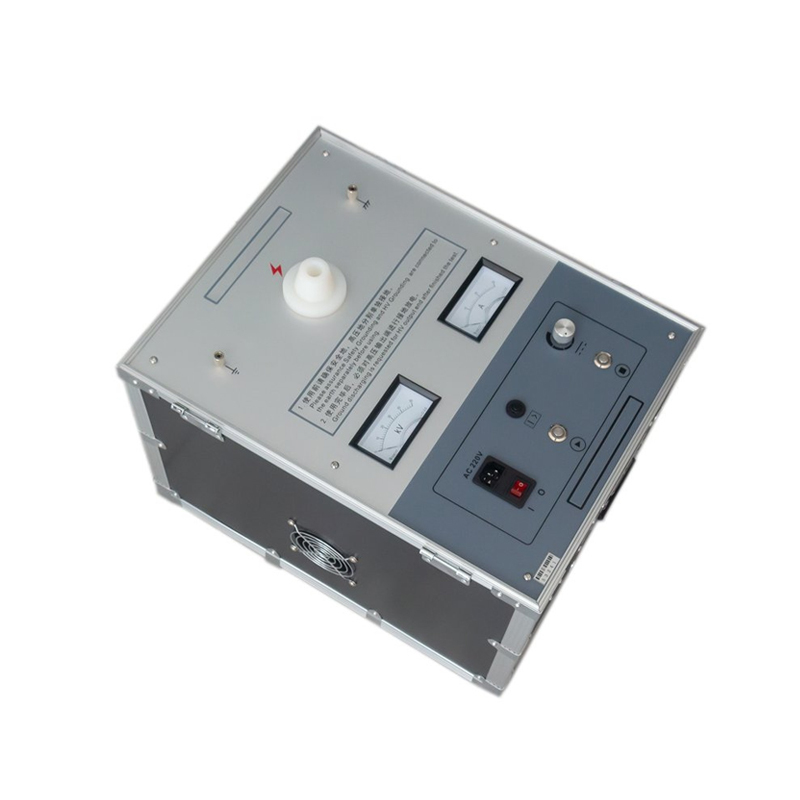

35kV DC Hipot Tester for Cable Fault Testing

Name: 35kV DC Hipot Tester for Cable Fault Testing
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV508-5
Price: 7970.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHHV508-5

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHHV508-5

Highlight:

High Light

Highlight:

35kV DC hipot tester for cables

DC hipot tester with warranty

cable fault testing hipot tester

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

DC Hipot Tester for Impulse Discharge and DC Withstand Voltage Test

The XHHV508-5 DC high voltage power supply is designed for impulse discharge during cable fault testing at voltage levels of 35kV and below, as well as DC withstand voltage testing of other electrical equipment. This compact, lightweight solution replaces traditional heavy test transformers and operating boxes while maintaining safety and reliability.

Key Features

Over-current, over-voltage, and over-heating automatic protection

Uniform impact discharge with controllable discharge speed

Super short-circuit protection allows direct high-voltage output short-circuit to ground

Dual 1.5-level pointer meter display for current and voltage

High-voltage side voltage measurement for real-time accuracy

Zero-position start protection for enhanced safety

Automatic self-discharge when high-voltage output is cut off

Real-time capacitor voltage indication in stopped state

Technical Specifications

Parameter	Value
Impact high voltage	0~35kV (optional)
Short circuit current	320mA
High voltage division accuracy	1.5 level
External capacitor	2μF~4μF
Impact time	1~8 seconds
Impact power	500W
Over temperature protection	85ºC
Dimensions	400mm (L) × 310mm (W) × 320mm (H)
Weight	12kg
Power supply	AC 220V±10%, 50Hz±2Hz
Operating temperature	-20~+50ºC
