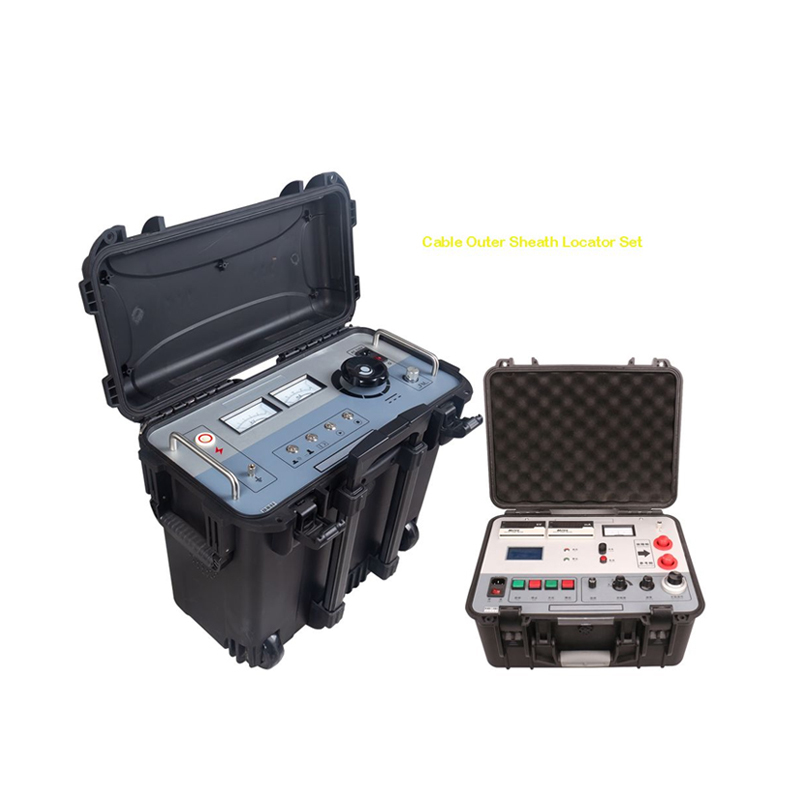

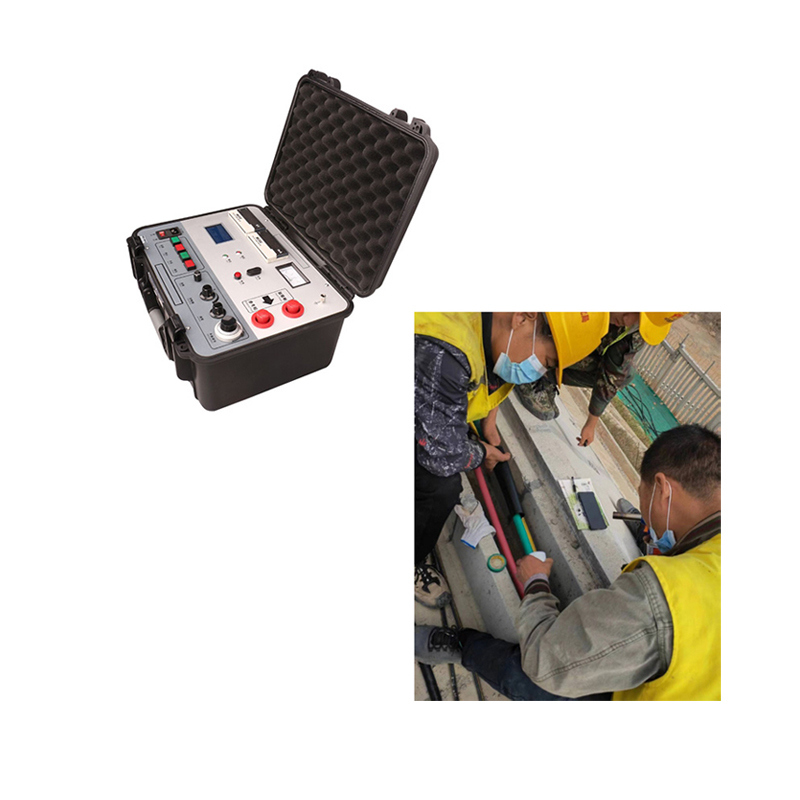

Cable Sheath Fault Locator for High-Resistance Breakdown Detection

Name: Cable Sheath Fault Locator for High-Resistance Breakdown Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHG521B+XHHD523L
Price: 2,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHHG521B+XHHD523L

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHHG521B+XHHD523L

Highlight:

High Light

Highlight:

Cable sheath fault locator for high-resistance

Fault locator for breakdown detection

Cable sheath detector with warranty

Trading Information

Minimum Order Quantity:

1 unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

High-Performance Cable Sheath Fault Locator

Precision detection system for breakdown points and defects in wires and cables, featuring advanced bridge balance technology for accurate fault location.

Key Applications

Detection of high-resistance breakdown points in laid cables, especially low-resistance linear high-resistance breakdown points
Identification of flashover-type breakdown points with maintained arc stability
Detection of low-resistance defects that haven't broken down under operating voltage

Advanced Features

MURRAY bridge principle for precise fault location in various cable types
High-voltage constant current source with voltage regulator and R-type transformer
Special double-core high-voltage rubber cable with four-terminal resistance measurement
Integrated 12806 display screen with automatic cable length calculation
Compact design with high-voltage source and electric bridge in portable protective case
No blind spots compared to wave reflection methods, ideal for short cables

Technical Specifications

Parameter	Value
No-load voltage	≤7500V
Short-circuit current	≥40mA
Positioning accuracy	±(0.1%•L±1) m
Weight	5.5kg
Power supply	AC 220V ±10% 50Hz and 9V batteries

Additional Features

Adjustable output voltage with high accuracy and stability
High-sensitivity amplifier and galvanometer balance indication
Zero protection safety feature
Automatic fault point testing with manual override capability

Power Specifications

Parameter	Specification
Input voltage	AC220V(±10%),50Hz(±2Hz)
Output voltage	0~10kV adjustable
Output current	0~200mA
Output capacity	2kVA
Frequency adjustment	0.2Hz to 5Hz
Dimensions	540L×310W×460H (mm)
Weight	35kg
