XHGX507C Intelligent Cable Pipeline Tester with Multiple Detection Modes

Name: XHGX507C Intelligent Cable Pipeline Tester with Multiple Detection Modes
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGX507C
Price: 1,662.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHGX507C

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHGX507C

Highlight:

High Light

Highlight:

intelligent cable pipeline tester

cable route tracer with multiple detection modes

XHGX507C pipeline tester with warranty

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

2000 units per year

Product Description

XHGX507C

Model NO.

XHGX507C

Usage

Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Test Region

Forming Cable

Cable Type

Shielded

Power

Electricity

Certification

CE, ISO

Customized

Non-Customized

Color

Grey

Transport Package

Wooden

Trademark

XZH TEST

Origin

China

Production Capacity

100

Product Description

XHGX507C Intelligent Cable Pipeline Tester with Multiple Detection Modes 0

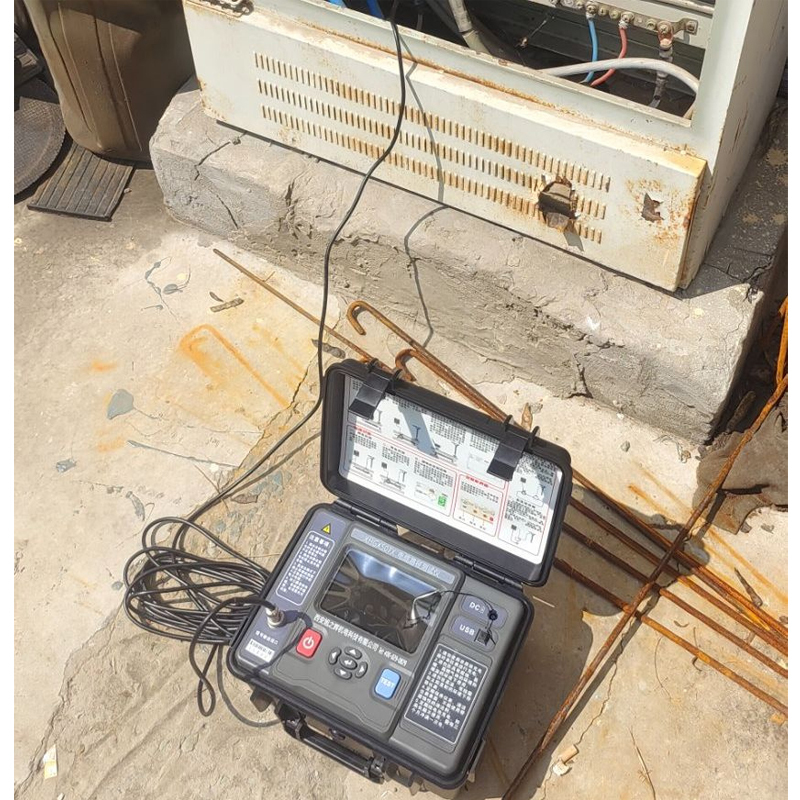

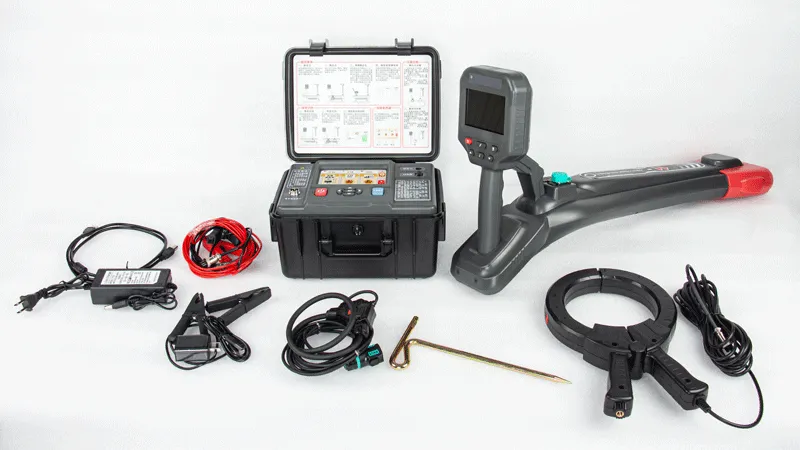

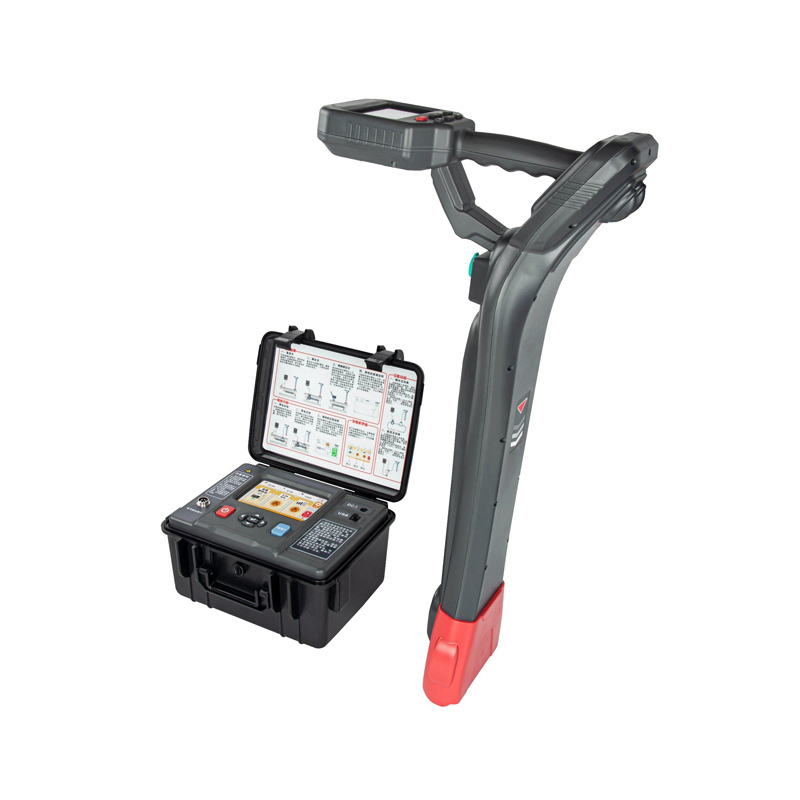

Cable route tracer XHGX507C has multiple functions such as cable pipeline path & depth detection , cable identification, fault finding, etc.it consists of a transmitter, a transmitting current clamp, a receiver, a receiving flexible current clamp, a connecting test line, an A-frame (optional), etc.

It uses a variety of filtering technologies and has anti-interference capabilities. It can be used for path detection ,depth accurately location and measurement,pipeline census and depth measurement of metal pipelines and underground cables in non-excavation conditions.

It is suitable for the detection and patrol of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, power supply and other departments. It is one of the necessary instruments for pipeline maintenance units.

Cable identification: can be used to identify live cables and power-off cables. When identifying cables, 20 cables can be pre-calibrated at the transmitter end, and then the identification signal can be received at the remote end. The target cable can be quickly and automatically identified, which greatly saves the time of round-trip calibration operation for engineers and improves work efficiency. This function is realized by the cooperation of signal transmitter, receiver, signal transmitting clamp, connecting test line, and flexible clamp.

The instrument has the following features:

Multiple detection modes: classic positioning mode, wire cruise mode, signal distortion measurement mode;
Classic positioning mode: compass, direction and signal amplitude display, intuitively showing the left and right direction of the pipeline.
Wire cruise mode: 360° all-round pipeline path indication, continuous display of depth, current and relative position of pipeline. The interface is simple and intuitive, and can be operated without experience
Signal distortion measurement mode: Display peak and trough waveforms simultaneously. In the distortion-free scene, the peak and trough positions should be consistent, and the scene shape should be symmetrical relative to the center line.
Current direction determination (partial frequency) can eliminate adjacent line interference and prevent tracking errors by calibrating the current direction.
Fully digital high-precision sampling and processing: stable and reliable, ultra-high sensitivity, extremely narrow receiving passband, strong anti-interference ability, and can fully suppress the power frequency and harmonic interference of adjacent running cables and pipelines.
Multiple detection frequencies: 11 active detection frequencies and 3 passive detection frequencies.
The transmitter has multiple signal output modes: direct output, caliper coupling, and induction method.
The transmitter has digital amplified power output, fully automatic impedance matching, and fully automatic protection.

Receiver

Function	Pipeline detection (cable position tracking, direction display, depth measurement, current measurement), cable identification, A-frame fault finding
Power supply	8.4V large capacity rechargeable lithium battery
Input method	Built-in receiving coil, flexible caliper, A-frame (optional function)
Receiving frequency	Active detection frequencies: 640Hz, 1.28kHz, 2.56kHz, 3.20kHz, 4.09kHz, 8.19kHz, 10.2kHz, 32.7kHz, 65.6kHz, 81.9kHz, 197kHz Power frequency passive detection frequency: 50Hz, 60Hz, 250Hz RF passive detection frequency band: center frequencies are 32.7kHz, 65.6kHz, 81.9kHz, 197kHz
Pipeline detection mode	Broad peak method, narrow peak method, valley method
Pipeline detection Detection range	Direct connection method: Generally, the cable length can reach 0~20 kilometers, which is mainly determined by the ground resistance, cable resistance and cable burial depth. Coupling method: Generally, the cable length can reach 0~10 kilometers, which is mainly determined by the ground resistance, cable resistance and cable burial depth. Induction method: suitable for cables buried less than 2m deep
measurement depth	0-20m
Cable identification Detection range	Direct connection method: can identify signals with loop resistance of 0Ω~8kΩ (usually can reach cable length of 0~20 kilometers, mainly determined by ground resistance and cable resistance) Coupling method: can identify signals with loop resistance of 0Ω~1kΩ; (generally, the cable length can reach 0~6 kilometers, mainly determined by the ground resistance and cable resistance)
liquid crystal	4.3-inch LCD color screen (high brightness screen), visible in sunlight
Size	About 350mm (length) × 155mm (width) × 700mm (height)
Weight	About 2kg
Coil inner diameter	φ200mm (larger diameter can be customized as needed)
Working temperature and humidity	-10ºC~40ºC; below 80%Rh
Suitable for safety regulations	IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, pollution degree 2

Transmitter

Function	Multiple frequency signal transmission modes
power supply	10.8V large capacity rechargeable lithium battery
Output method	Direct connection method, coupling method, induction method
Output frequency	640Hz, 1.28kHz, 2.56kHz, 3.20kHz, 4.09kHz, 8.19kHz, 10.2kHz, 32.7kHz, 65.6kHz, 81.9kHz, 197kHz
Output Mode	Automatic identification, automatic identification according to different accessories
Output Power	15W max, 9 levels adjustable
impedance	Fully automatic real-time impedance matching and protection function
Direct output voltage	150Vpp max
Circuit Protection	With overload and short circuit protection
liquid crystal	5-inch LCD color screen
Touch	Yes, capacitive touch
Instrument size	About 320mm (length) × 275mm (width) × 145mm (height)
quality	Transmitter weight: about 3.85kg; Transmitter clamp weight: about 1.18kg
charger	DC 11.1V 3A
Launching clamp size	Length, width and thickness: 297mm×194mm×39mm
Inner diameter of firing clamp	φ125mm
Transmitter cable length	3m
Test line	Red test line 3m, black test line 3m
Connection interface	USB port, DC port, aviation socket
Stress resistance	The transmitter adopts an integrated special tool box design, and the box can withstand a pressure of about 200kg.
Pressure resistance	AC 3700V/rms (between the top and bottom of the instrument box)
Electromagnetic properties	IEC61326(EMC)
Suitable for safety regulations	IEC61010-1 (CAT 300V, CAT IV 150V, pollution degree 2)
