XHGX507C Intelligent Cable Route Tracer for Pipeline Detection

Name: XHGX507C Intelligent Cable Route Tracer for Pipeline Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGX507
Price: 1,662.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH TEST
Certification:	CE/ISO
Model Number:	XHGX507

Detail Information

Place of Origin:

China

Brand Name:

XZH TEST

Certification:

CE/ISO

Model Number:

XHGX507

Highlight:

High Light

Highlight:

intelligent cable route tracer

pipeline detection cable tracer

XHGX507C cable route detector

Trading Information

Minimum Order Quantity:

1 Unit

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

1000 units per year

Product Description

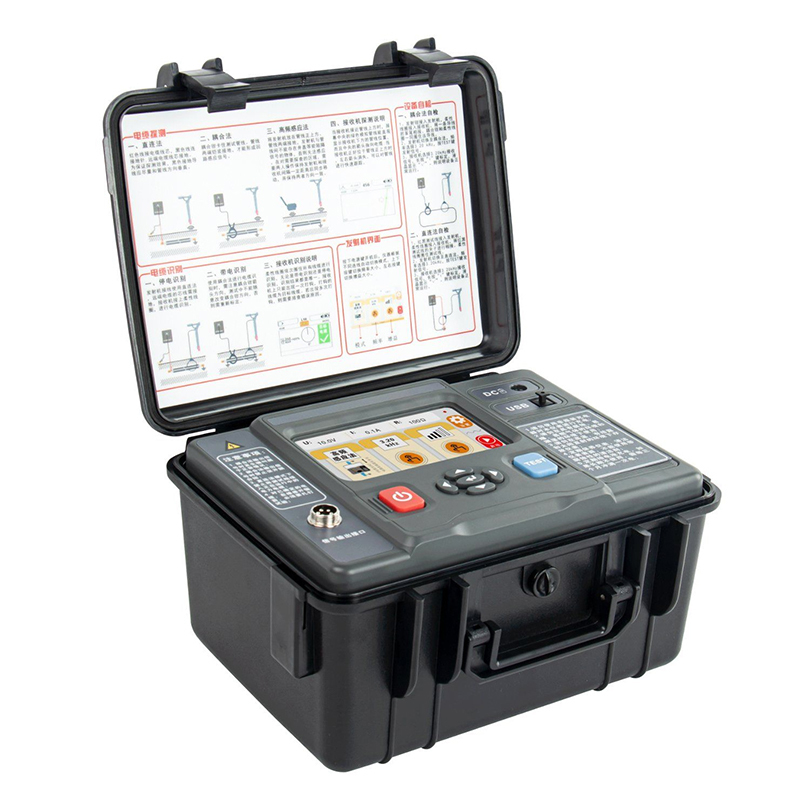

XHGX507C Intelligent Cable Route Tracer

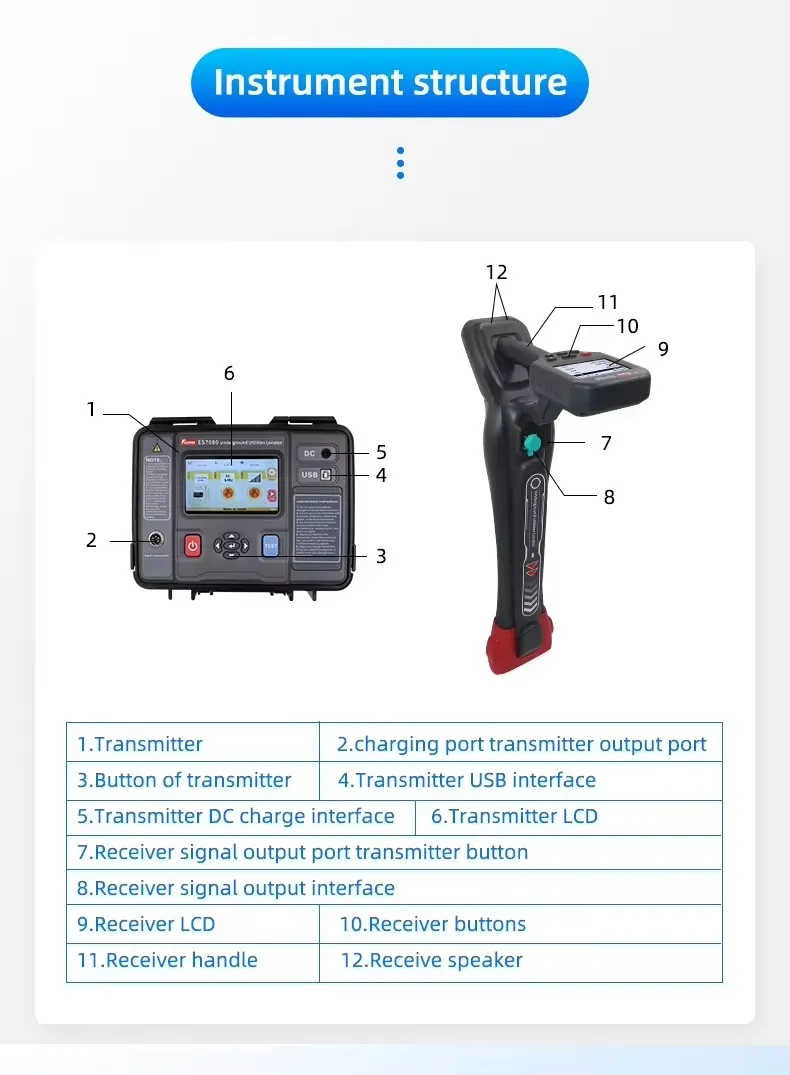

The XHGX507C intelligent cable pipeline comprehensive tester is a high-performance path detection instrument with multiple functions including pipeline path detection, cable identification, and fault finding. This system consists of a transmitter, transmitting current clamp, receiver, receiving flexible current clamp, connecting test line, and optional A-frame.

Key Applications

Designed for path detection, pipeline census, and depth measurement of metal pipelines and underground cables in trenchless environments. Ideal for municipal planning, power supply maintenance, and underground pipeline management.

Advanced Features

Multiple detection modes: Classic positioning, wire cruise, and signal distortion measurement

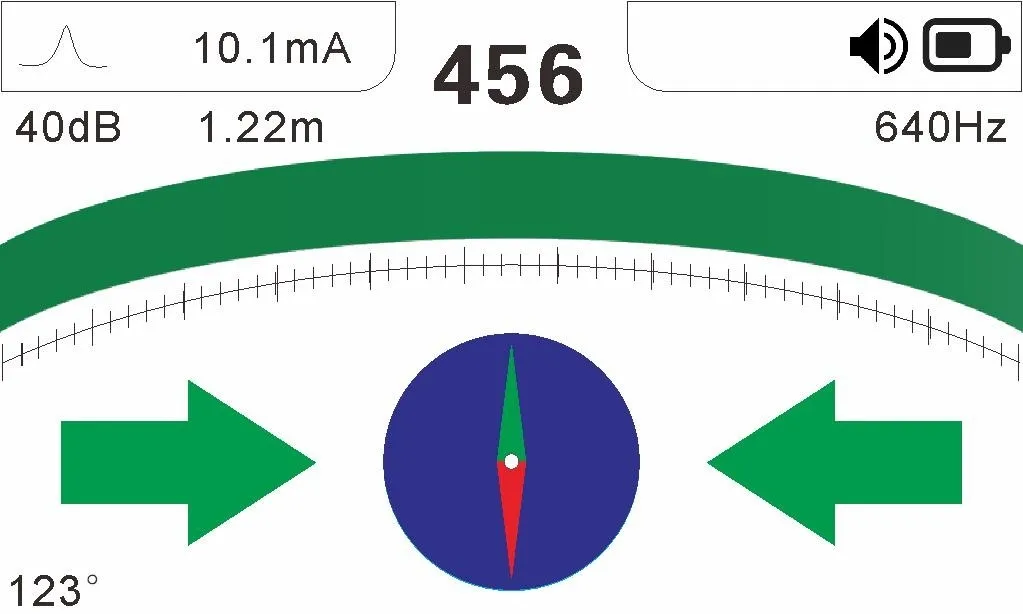

Intuitive interface: Compass display, direction indicators, and signal amplitude visualization
360° path indication: Continuous display of depth, current, and pipeline position
Current direction determination: Eliminates adjacent line interference
Digital processing: High-precision sampling with strong anti-interference capabilities
14 detection frequencies: 11 active and 3 passive frequencies
Versatile transmitter: Multiple output modes with automatic impedance matching

Cable Identification System

Identification Method	Flexible caliper intelligent identification (1-20 cables)
Calibration Range	75-135% of calibration value for successful identification
Direction Requirement	Transmitting clamp, receiving clamp, and loading signal must align
Direct Connection Range	0Ω~8kΩ loop resistance (0-20km cable length)
Coupling Method Range	0Ω~1kΩ loop resistance (0-6cm cable length)

Technical Specifications

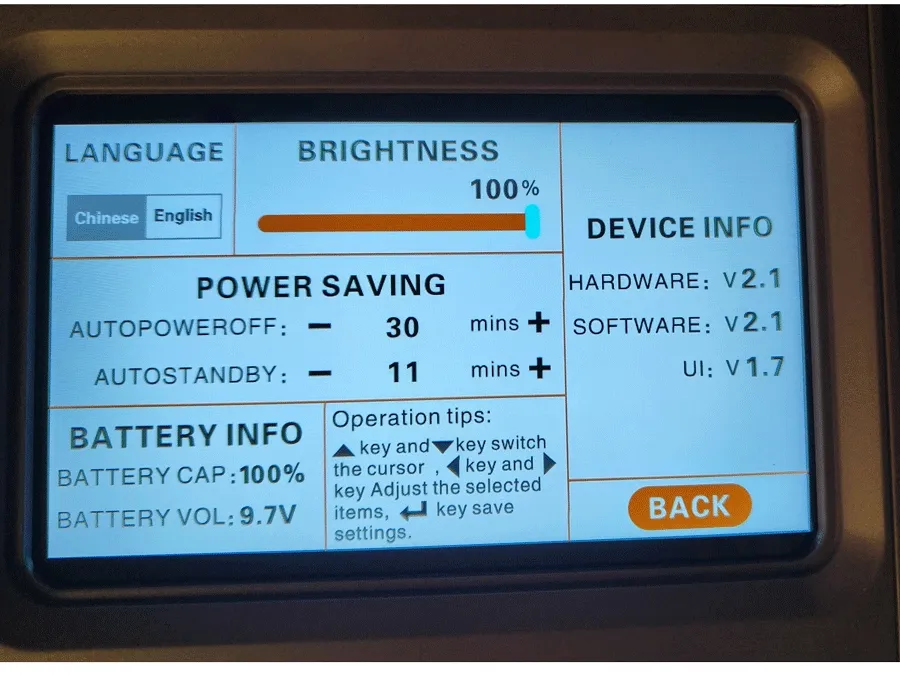

Display	4.3-inch LCD color screen (high brightness)
Interface	Capacitive touch
Dimensions	350mm (L) × 155mm (W) × 700mm (H)
Weight	Approx. 2kg
Connections	Type-C USB port, aviation socket
Coil Inner Diameter	φ200mm (custom sizes available)
Operating Conditions	-10ºC to 40ºC; ≤80% RH
Storage Conditions	-10ºC to 50ºC; ≤95% RH (no condensation)
Safety Standards	IEC61010-1 CAT III 600V, IEC61010-031, IEC61326
