Manufacturing Factory Acoustic-Magnetic Synchronization Cable Fault Pinpointer Locator
Manufacturing Factory Acoustic-Magnetic Synchronization Cable Fault Pinpointer Locator
  • Manufacturing Factory Acoustic-Magnetic Synchronization Cable Fault Pinpointer Locator

Manufacturing Factory Acoustic-Magnetic Synchronization Cable Fault Pinpointer Locator

Product Details:
Place of Origin: China
Brand Name: XZH Test
Certification: CE/ISO
Model Number: XHDD503C
Detail Information
Place of Origin:
China
Brand Name:
XZH Test
Certification:
CE/ISO
Model Number:
XHDD503C
Highlight:

High Light

Highlight:

acoustic-magnetic cable fault locator

,

underground cable fault pinpointer

,

synchronization cable fault detector

Trading Information
Minimum Order Quantity:
1unit
Packaging Details:
wooden box
Delivery Time:
5-8work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

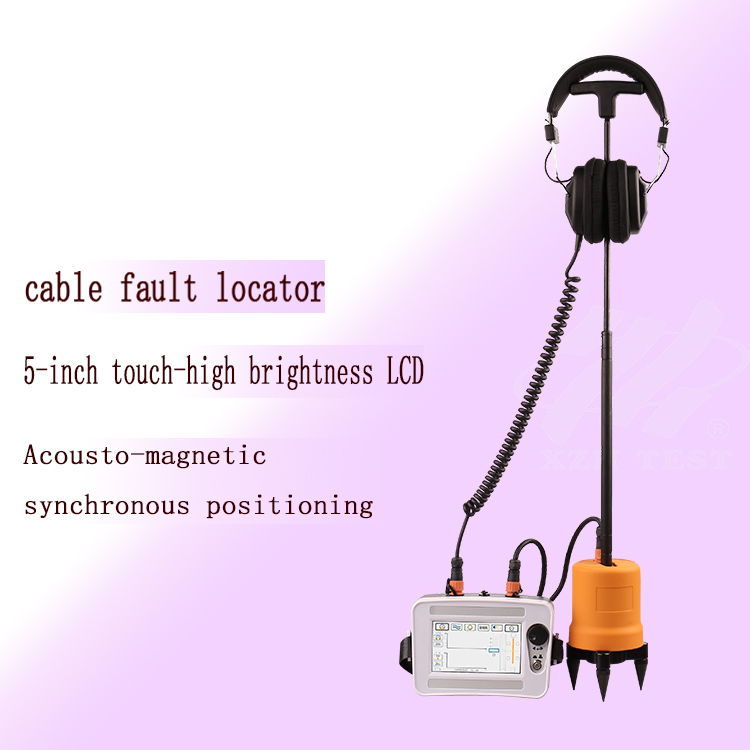

XHDD503C underground cable fault pinpoint locator

Introduction

To accurately locate power cable fault points, the cable fault location instrument uses the acoustic and magnetic synchronization method. The electronic flashover, generated by the impact discharge generator, is detected and amplified by a specialized probe.


Features


5-inch touch-high brightness LCD ensures visibility under sunlight.
It has background noise reduction technology and can choose from a variety of filtering methods. It has path deviation indication.
Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
Small and lightweight, easy to operate, and simple human-machine interface.


 Technical indicators

Filter parameters

All-pass: 100Hz~1600Hz.

Low pass: 100Hz~300Hz.

Qualcomm: 160Hz~1600Hz.

Bandpass: 200Hz~600Hz.

Channel gain

8 levels adjustable.

Magnetic channel gain

8 levels adjustable.

Output gain

16 levels (0~112db)

Output impedance

350Ω

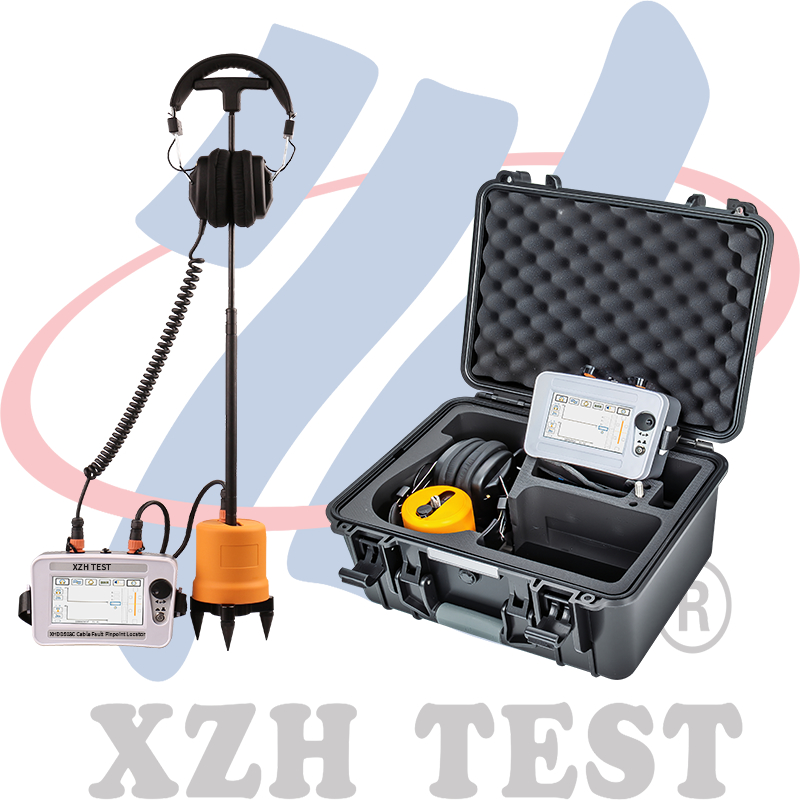

Packing list

Manufacturing Factory Acoustic-Magnetic Synchronization Cable Fault Pinpointer Locator
Product Details

Manufacturing Factory Acoustic-Magnetic Synchronization Cable Fault Pinpointer Locator
