China Manufacturer Power Cable Identification Instrument

Name: China Manufacturer Power Cable Identification Instrument
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505A
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE/ISO
Model Number:	XHSB505A

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE/ISO

Model Number:

XHSB505A

Highlight:

High Light

Highlight:

power cable identification instrument

cable fault locator with warranty

China manufacturer cable tester

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

XHSB505A

Basic Info.

Model NO.

XHSB505A

Connectors

Coaxial BNC

Test Mode

Instant Test

Usage

Audio Cable Tester

Test Region

Unformed

Cable Type

Shielded

Power

Electricity

Certification

Customized

Color

Black

Transport Package

Wooden Cases

Specification

64*53*35

Trademark

XZH TEST

Origin

Shaanxi

Product Description

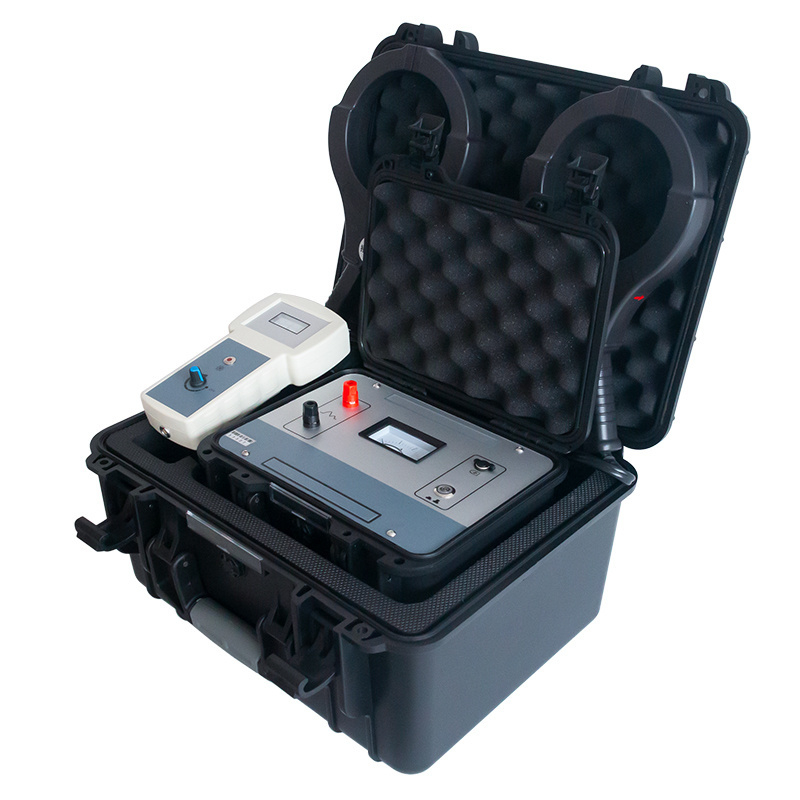

China Manufacturer Power Cable Identification Instrument 0

XHSB505A cable identifier adopts variable frequency pulse power supply and uses the principle of electromagnetic induction to accurately identify cables that are unlive or in operation. There are two functions for measuring voltage, current and frequency, and there are two output methods: direct connection method and coupling method.

Identification of non-powered cable:

The transmitter's primary function is the generation of a unique pulse signal. This pulse signal is subsequently introduced into the cable under identification via a connecting line. Owing to the principle of electromagnetic induction, an induction signal, which corresponds to the pattern of the transmitted signal, will be generated along the cable. At the testing site, a highly sensitive receiving clamp, in combination with a handheld receiver, is deployed to detect all the cables present. By following the indication provided by the handheld receiver, the cable that has been exposed to the signal (namely, the unpowered cable to be identified) can be precisely located.

For the identification of powered cables: The transmitter's main duty is to generate a particular pulse signal. This signal is introduced to a specific point of the powered cable to be identified through a special transmitting clamp. Based on the principle of electromagnetic induction, an induction signal that matches the pattern of the transmitted signal will be generated along the cable. At the testing site, a highly sensitive receiving clamp and a handheld receiver are utilized to detect all cables in the area. Following the indication of the handheld receiver, the cable that has been subjected to the signal (that is, the powered cable to be identified) can be accurately detected.

China Manufacturer Power Cable Identification Instrument 1

China Manufacturer Power Cable Identification Instrument 2

Parameters:
★Recognition method judge by the swing direction of the pointer
★Jaw Φ125mm
★Output voltage ±300V
★Pulse current 0~15A
★Instantaneous power 180W
★Power supply 12VDC lithium battery for signal generator, AA battery for handheld receiver.

*Accurate identification
*Large identification jaws suitable for all kinds of cables
*Extremely simple operation
*Clear and intuitive instructions
*Main and auxiliary parts are portable and beautiful
*The receiver has adjustable signal strength
*Both live and non-live cables can be tested
*Small and portable, light weight

Transmitter	1 set
Receiver	1 set
Charger	1 set
Output line - red	1 set
Output line - black	1 set
Transmitter clamp	1 set
Receiver clamp	1 set
Batteries	2 sets
