China Factory Cable Identification Instrument

Name: China Factory Cable Identification Instrument
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505A
Price: 1,050.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	XZH Test
Certification:	CE/ISO
Model Number:	XHSB505A

Detail Information

Place of Origin:

China

Brand Name:

XZH Test

Certification:

CE/ISO

Model Number:

XHSB505A

Highlight:

High Light

Highlight:

cable identification instrument with warranty

cable fault locator for diagnostics

China factory cable tester

Trading Information

Minimum Order Quantity:

1unit

Packaging Details:

wooden box

Delivery Time:

5-8work days

Payment Terms:

T/T

Supply Ability:

2000unit/year

Product Description

XHSB505A

Basic Info.

Model NO.

XHSB505A

Connectors

Coaxial BNC

Test Mode

Instant Test

Usage

Audio Cable Tester

Test Region

Unformed

Cable Type

Shielded

Power

Electricity

Certification

Customized

Color

Black

Transport Package

Wooden Cases

Specification

64*53*35

Trademark

XZH TEST

Origin

Shaanxi

Product Description

China Factory Cable Identification Instrument 0

XHSB505A cable identifier adopts variable frequency pulse power supply and uses the principle of electromagnetic induction to accurately identify cables that are unlive or in operation. There are two functions for measuring voltage, current and frequency, and there are two output methods: direct connection method and coupling method.

Identification of non-powered cable:

The transmitter mainly serves to generate a special pulse signal. This signal is sent to the cable to be identified through a connecting line. Due to the principle of electromagnetic induction, an induction signal that aligns with the law of the transmitted signal will be inevitably generated along the cable. At the test site, a highly sensitive receiving clamp and a handheld receiver are employed to detect all the cables present. According to the indication of the handheld receiver, the cable that the signal is added to (that is, the non - powered cable to be identified) can be accurately identified.

In the case of identifying powered cables: The transmitter mainly generates a special pulse signal. This signal is added to a point of the powered cable to be identified through a special transmitting clamp. According to the principle of electromagnetic induction, an induction signal that is in accordance with the law of the transmitted signal will be generated along the cable. At the test site, a highly sensitive receiving clamp and a handheld receiver are used to detect all the cables. Based on the indication of the handheld receiver, the cable that the signal is added to (namely, the powered cable to be identified) can be accurately found.

China Factory Cable Identification Instrument 1

China Factory Cable Identification Instrument 2

Parameters:
★Recognition method judge by the swing direction of the pointer
★Jaw Φ125mm
★Output voltage ±300V
★Pulse current 0~15A
★Instantaneous power 180W
★Power supply 12VDC lithium battery for signal generator, AA battery for handheld receiver.

*Accurate identification
*Large identification jaws suitable for all kinds of cables
*Extremely simple operation
*Clear and intuitive instructions
*Main and auxiliary parts are portable and beautiful
*The receiver has adjustable signal strength
*Both live and non-live cables can be tested
*Small and portable, light weight

Transmitter	1 set
Receiver	1 set
Charger	1 set
Output line - red	1 set
Output line - black	1 set

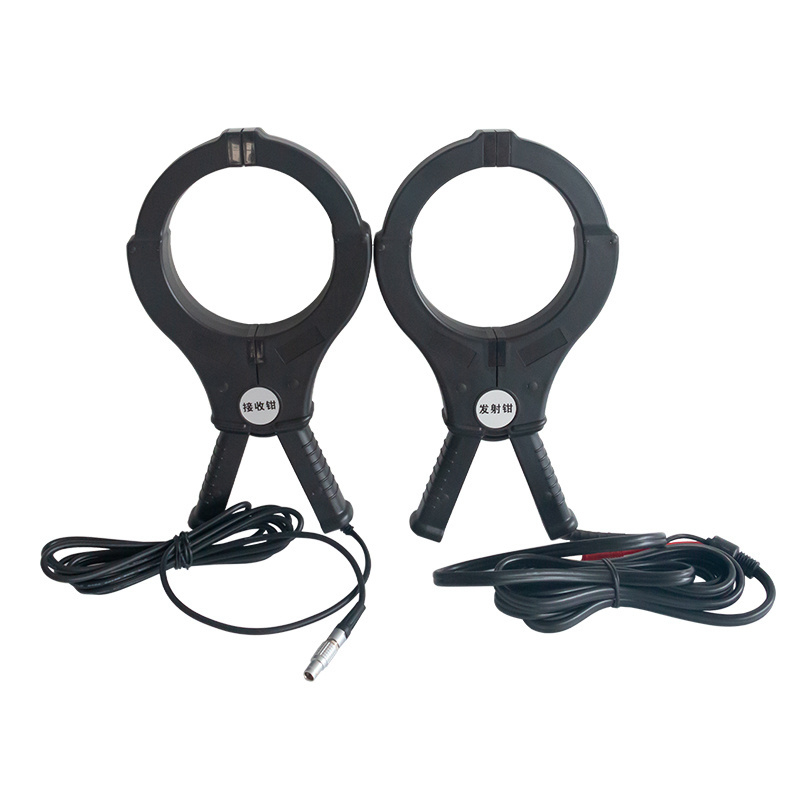

Transmitter clamp	1 set
Receiver clamp	1 set
Batteries	2 sets
