Fully Automatic Six-Cup BDV Tester for Oil Testing| XHYY102L

Name: Fully Automatic Six-Cup BDV Tester for Oil Testing| XHYY102L
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYY102L
Price: 4,115.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XZH TEST
Certification:	ISO CE
Model Number:	XHYY102L

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XZH TEST

Certification:

ISO CE

Model Number:

XHYY102L

Highlight:

High Light

Highlight:

Fully Automatic BDV Tester

Six Cups Transformer Oil Tester

Dielectric Strength Testing Insulating Oil Dielectric Strength Tester

Trading Information

Minimum Order Quantity:

1set

Price:

Negotiable

Packaging Details:

wooden packaging

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

3000unit/year

Product Description

XHYY102L Six-Cup Insulating Oil BDV Tester is a high-precision, fully digital, fully automatic industrial instrument engineered for high-throughput breakdown voltage testing of insulating oils. Independently developed by our R&D team in strict accordance with established standards and specifications governing insulating oil testing, this instrument has undergone repeated field validation and long-term refinement to achieve optimal performance. Featuring automatic digital microcomputer control, it delivers outstanding measurement precision, strong resistance to external interference, and a high level of safety and reliability. With its six-cup configuration, the XHYY102L is purpose-built for laboratories and facilities requiring maximum sample throughput without compromising measurement integrity.

Technical Specifications

Parameter	Specification
Output Voltage	0–80 kV (optional higher ranges)
Booster Capacity	1.5 kVA
Voltage Accuracy	±(2% of reading + 2 digits)
Boost Speed	0.5–5.0 kV/s (10 gears, 0.5 kV/s increments; error 0.2 kV/s)
Power Distortion Rate	< 1%
Electrode Gap	Standard 2.5 mm
Test Cup Configuration	Six-cup (high-throughput parallel testing)
Number of Trials	1–9 times (user-selectable)
Static Release Time	0–9999 s (user-selectable, default 900 s)
Interval Rest Time	0–999 s (user-selectable, default 300 s)
Mixing/Stirring Time	0–999 s (user-selectable, default 15 s)
Data Interface	RS-232 serial port for PC connectivity
Dimensions	410 × 380 × 370 mm

Operating Conditions

Parameter	Specification
Ambient Temperature	0℃ to +40℃
Relative Humidity	≤ 85% RH
Working Power Supply	AC 220V ± 10%
Power Frequency	50 Hz ± 10%
Power Consumption	< 200 W

Key Performance Features

Six-Cup High-Throughput Design — Process up to six oil samples simultaneously, dramatically increasing daily testing capacity for laboratories, QC departments, and service centers handling large sample volumes.
10-Gear Precision Boost Control — Selectable boost rates from 0.5 to 5.0 kV/s in 0.5 kV/s increments provide fine-grained control unmatched by fixed-rate testers, enabling optimized test profiles for different oil types, viscosities, and degradation states.
Advanced Automated Workflow — Independently configurable mixing time (0–999 s), static release time (0–9999 s), interval rest time (0–999 s), and trial count (1–9) enable fully unattended multi-cycle testing sequences tailored to any standard or custom protocol.
Microcomputer Digital Control — Automatic digital control system eliminates operator variability, ensuring consistent, repeatable BDV measurements with ±(2% + 2 digits) accuracy and power distortion below 1% for clean breakdown detection.
RS-232 Data Connectivity — Serial interface enables direct data transfer to PC for digital archiving, trend analysis, and integration with laboratory information management systems (LIMS).
Built-in Thermal Printer — Immediate hard-copy output of individual trial results and computed averages for real-time documentation and compliance reporting.

Instrument Panel Overview

Component	Function
LCD Display	Shows date, time, operating parameters, test results, and operation menu prompts
Printer	Prints average of single and multiple test results
Oil Cup Cover	Open to insert/remove oil cups; must be closed before testing
Power Socket	AC 220V 50Hz power input
Grounding Column	Reliable ground connection terminal
RS-232 Interface	Serial data port for PC connectivity and digital archiving

Product Image

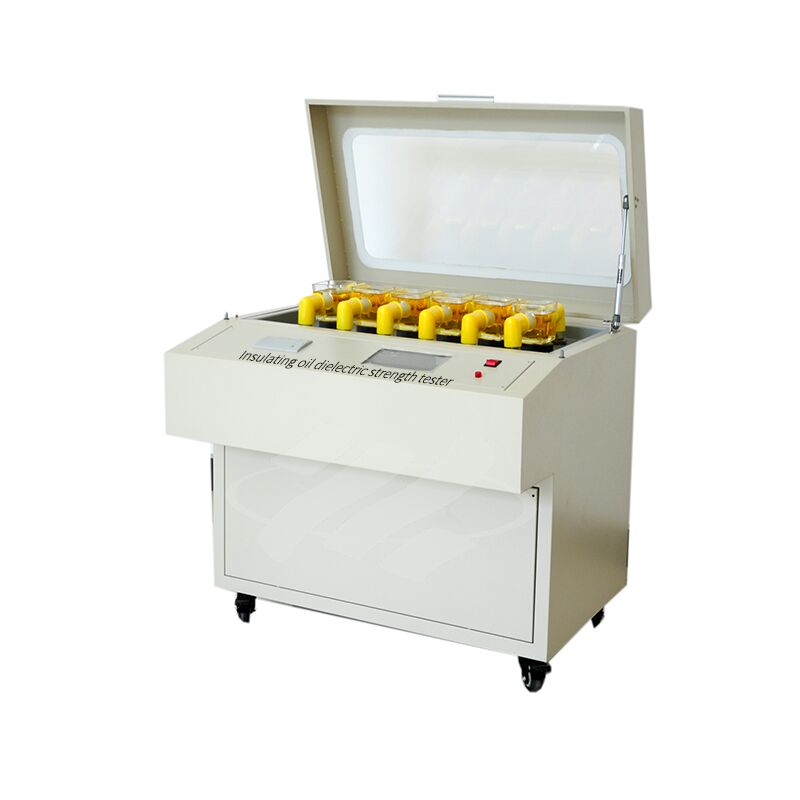

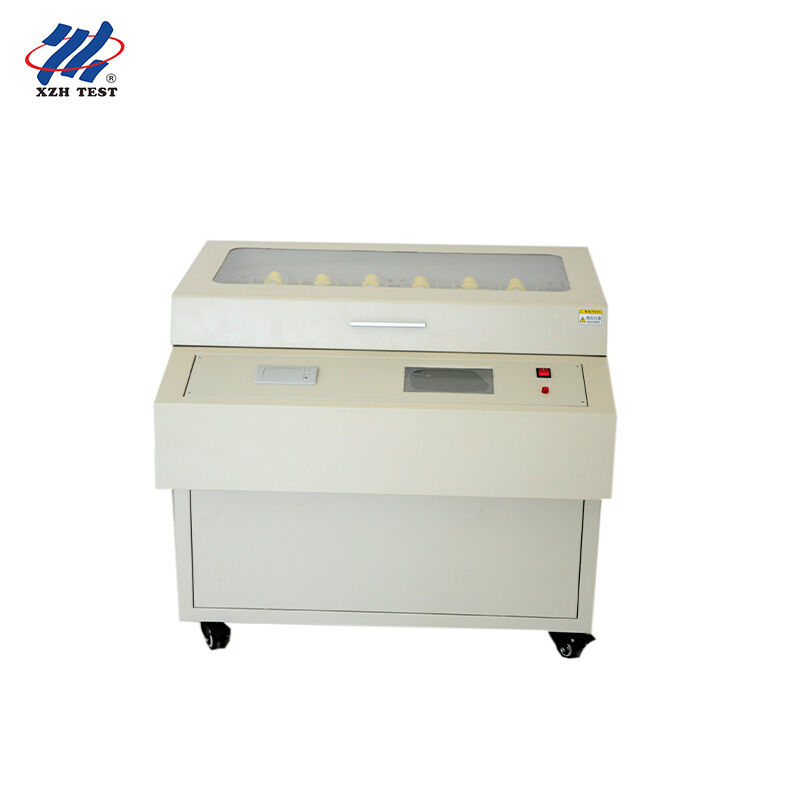

XHYY102L Six-Cup Insulating Oil BDV Tester

Frequently Asked Questions

Q1: Is this six-cup tester suitable for high-volume transformer manufacturing QC lines?

Absolutely. Transformer manufacturers running multiple production shifts require oil testing throughput that single- or three-cup testers cannot sustain. The XHYY102L’s six-cup configuration enables parallel testing of oil samples from different production units simultaneously. Combined with configurable mixing, standing, and interval times, the instrument can execute fully unattended multi-batch test sequences across a shift, dramatically reducing QC bottlenecks and ensuring every transformer ships with verified oil dielectric documentation.

Q2: Can national or regional grid oil testing centers benefit from this instrument?

Centralized oil testing laboratories serving entire grid regions face thousands of samples annually from hundreds of substations. The XHYY102L is purpose-designed for this workload: six-cup parallel testing maximizes daily sample capacity, while the RS-232 interface enables direct data export to LIMS for automated report generation, trend analysis, and regulatory compliance tracking. The 10-gear boost rate selection allows the lab to standardize test protocols across diverse oil types (mineral, synthetic ester, silicone) received from different grid assets.

Q3: How does it serve independent oil analysis service companies?

Commercial oil analysis laboratories processing samples from multiple industrial, utility, and commercial clients need both speed and traceability. The XHYY102L’s six-cup throughput keeps turnaround times competitive, while its fully automated digital control ensures every sample — regardless of which technician loads it — is tested under identical, programmable conditions. The thermal printer provides client-ready reports on the spot, and the RS-232 port enables batch export of all daily results for invoicing, client portals, and long-term archival.

Q4: Is it suitable for fleet-wide transformer maintenance at large electric utilities?

Utilities managing 100+ power transformers need systematic oil condition monitoring to prioritize maintenance budgets. The XHYY102L’s six-cup design allows maintenance teams to batch-test oil samples collected during a single substation visit — testing all transformers in one session rather than spreading work across multiple days. The precision 10-gear boost control and configurable multi-cycle test sequences ensure consistent, trendable data across annual or semi-annual sampling campaigns, supporting data-driven asset management decisions.

Q5: Can railway electrification bureau central testing labs use this for traction transformer oil analysis?

Railway electrification systems operate large fleets of traction transformers distributed along extensive rail corridors, with oil samples periodically collected and sent to central laboratories. The XHYY102L’s six-cup, high-throughput design is ideal for processing these batched samples efficiently. The 0.5–5.0 kV/s variable boost rate enables labs to apply different test profiles for different transformer types (booster transformers, auto-transformers, substation transformers) within the same batch, while the RS-232 data export supports integration with railway asset management databases for automated condition trending and maintenance scheduling.
