Home > Products >
Relay Protection Tester
>
Single-phase Current Protection Tester with LCD
Single-phase Current Protection Tester with LCD
  • Single-phase Current Protection Tester with LCD

Single-phase Current Protection Tester with LCD

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHJB612
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHJB612
Operating Power Supply:
AC 220V ±10%, -15～40℃, 75% Accuracy
Highlight:

High Light

Highlight:

Large screen LCD Relay Protection Tester

,

Single-phase Microcomputer Relay Tester

,

Current protection Single-phase current protection tester

Trading Information
Minimum Order Quantity:
1set
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

Product Overview


The XHJB612 Relay Protection Tester is capable of testing and verifying various electromagnetic, rectifier, transistor, and integrated circuit relays, including their operate voltage/current, reset voltage/current, operate time, reset time, as well as the operate value, reset value, charge-discharge time, and operate time of reclosing relays. It can also test the starting current, induction element operate current, instantaneous element operate current, and operate time of GL-type and LL-type inverse-time relays.

Performance Features


  • Large-screen LCD English display for clear and easy reading.
  • Real-time contact status indication; measuring ranges switched via keys for simple and convenient on-site operation.
  • Equipped with passive digital output, flexibly applicable for auxiliary control during testing.

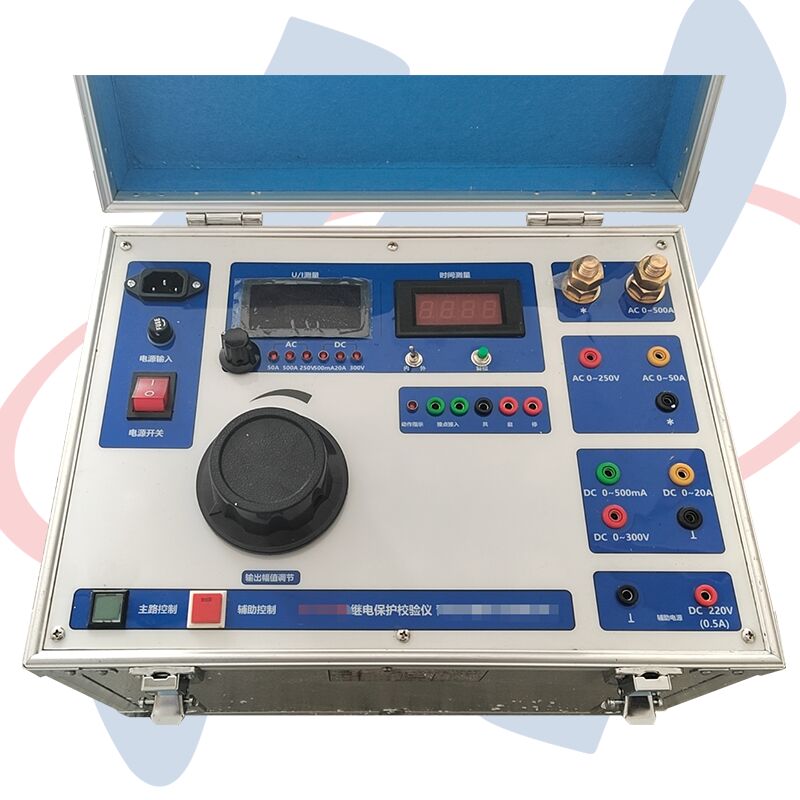

    Single-phase Current Protection Tester with LCD 0

    Technical Specifications

    ☆ Output: 4.5-digit digital voltmeter, 3.5-digit digital ammeter, 0.5% accuracy class

    AC Current: 0～5A, 0～50A, 0～150A

    AC Voltage: 0～250V, <5A

    DC Current: 0～20A

    DC Voltage: 0～250V, <5A; 0～12V, <0.5A

    ☆ Auxiliary Power Supply: 220V, 0～4A

    ☆ Time Measurement: 0～9999.9999S, Accuracy: 0.0001S

    ☆ Operating Power Supply: AC 220V ±10%, -15～40℃, 75% accuracy
