Intelligent Digital Ground Resistance Tester - Portable Earth Resistance Tester XHDJ705
Intelligent Digital Ground Resistance Tester - Portable Earth Resistance Tester XHDJ705
  • Intelligent Digital Ground Resistance Tester - Portable Earth Resistance Tester XHDJ705

Intelligent Digital Ground Resistance Tester - Portable Earth Resistance Tester XHDJ705

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XZH TEST
Certification: ISO CE
Model Number: XHDJ705
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XZH TEST
Certification:
ISO CE
Model Number:
XHDJ705
Functions:
Earth Resistance, Earth Voltage, Low Resistance Measurement
Power:
DC 9V (6×1.5V R14S Batteries), 300hrs Continuous Standby
Measurement Modes:
3-wire, 2-wire, Average, Max/min Value
Earth Resistance:
Variable Pole Method, 3mA Max Current, 820Hz Frequency
Earth Voltage:
Average Rectification, 4-digit Large LCD Display
Resistance Range:
0.01Ω-2000Ω, ±1% Rdg ±3 Dg, 0.01Ω Resolution
Voltage Range:
AC 0-600V, ±1% Rdg ±3 Dgt, 1V Resolution
Highlight:

High Light

Highlight:

Intelligent Ground Resistance Tester

,

Digital Earth Resistance Tester

,

Portable Ground Tester

Trading Information
Minimum Order Quantity:
1set
Price:
Negotiable
Packaging Details:
wooden packaging
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
3000unit/year
Product Description

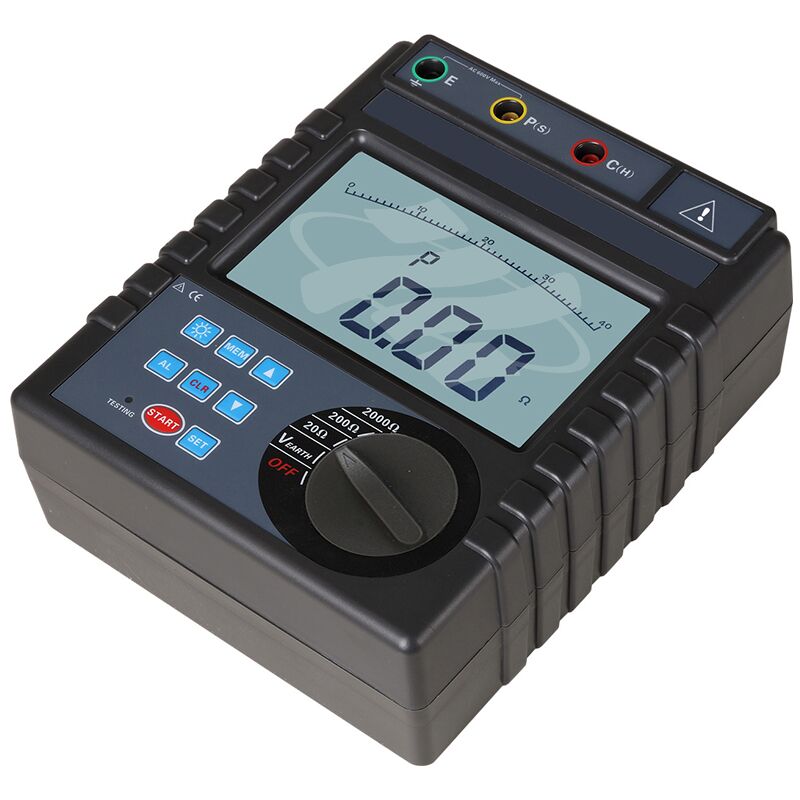

Intelligent Digital Ground Resistance Tester - Portable Earth Resistance Tester XHDJ705


Product Overview

XHDJ705 Digital Earth Resistance Tester is built for on-site earth resistance testing, suitable for power, meteorology, oilfield, construction, lightning protection and industrial electrical equipment applications.

Performance Features

Adopting digital and microprocessor technologies, this tester supports 3/2-wire earth resistance measurement, with dedicated line resistance calibration, superior anti-interference and environmental adaptability, ensuring long-term high-precision, stable and reliable measurement.

Technical Parameters

Functions Earth resistance, earth voltage, low resistance measurement
Power DC 9V (6×1.5V R14S batteries), 300hrs continuous standby
Measurement Modes 3-wire, 2-wire, average, max/min value
Earth Resistance Variable pole method, 3mA Max current, 820Hz frequency
Earth Voltag Average rectification, 4-digit large LCD display
Resistance Range 0.01Ω-2000Ω, ±1% rdg ±3 dg, 0.01Ω resolution
Voltage Range AC 0-600V, ±1% rdg ±3 dgt, 1V resolution
Measurement Rate Voltage: 3 times/sec; Resistance: 5 sec/time
RS232 Port Data upload to PC (save/print), 400-group storage, "FULL" flash for full memory
Operation Conditions -10℃-40℃, ≤80%RH
