High Precision Single Phase DC Resistance Measuring Instrument
High Precision Single Phase DC Resistance Measuring Instrument
  • High Precision Single Phase DC Resistance Measuring Instrument

High Precision Single Phase DC Resistance Measuring Instrument

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: ISO,CE
Model Number: XHZG-60/2
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
ISO,CE
Model Number:
XHZG-60/2
Output Power (W):
120
Charging Current (mA):
2
Current Measurement Error:
0.2% (Full Scale) ± 1 Digit
Working Method:
Intermittent Use: 30 Minutes At Rated Load Operation At 1.1 Times Rated Voltage: 10 Minutes
Highlight:

High Light

Highlight:

single phase DC resistance tester

,

high precision resistance measuring instrument

,

AC DC hipot tester with warranty

Trading Information
Minimum Order Quantity:
1 unit
Price:
Negotiable
Packaging Details:
wooden packaging
Delivery Time:
8-10 days
Payment Terms:
T/T
Supply Ability:
2000units/year
Product Description

Product Introduction

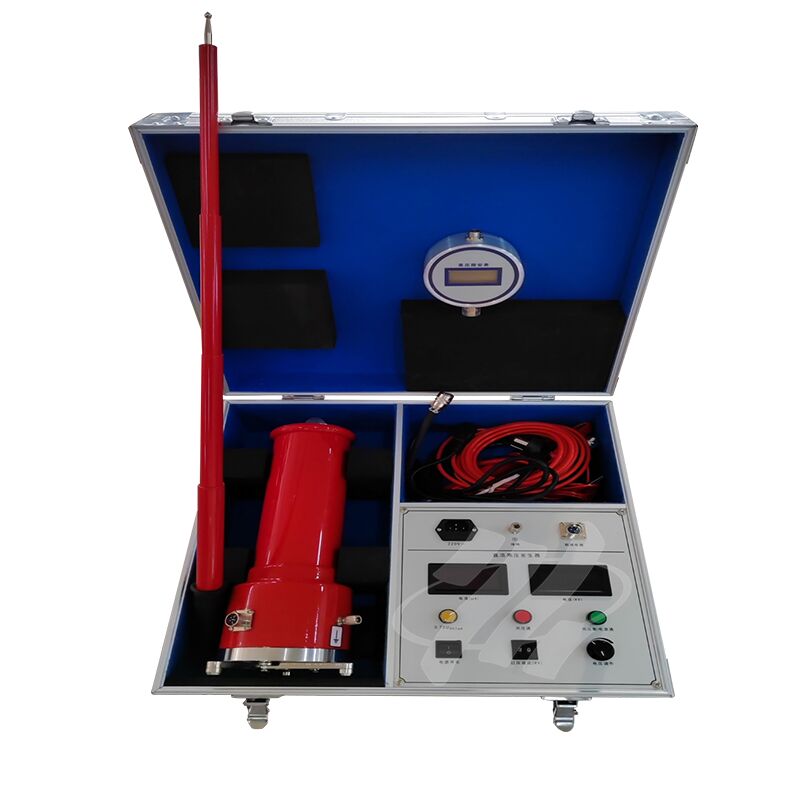

XHZG DC high voltage generator series is widely applied in power industry, which is used for DC voltage resistance and leakage current detection of high-voltage facilities such as zinc oxide lightning arresters, power cables, transformers, circuit breakers and power generators.

Key Advantages

  • It applies intermediate frequency multiplier circuit together with PWM modulation technology and high-power IGBT modules for reliable operation.
  • Optimized voltage feedback system greatly improves voltage stability, and the ripple factor is controlled below 1%.
  • Continuous and smooth voltage adjustment in the full range, featuring 0.5% maximum accuracy and 1% stability deviation.
  • Equipped with zero rising voltage function and 0.75UDC1mA dedicated key, ensuring accurate test results within 1% error.
  • Adjustable overvoltage protection by coded switch, clear and simple operation with ±1% protection error.
Output Voltage (kV) 60
Output Current (mA) 2
Output Power (W) 120
Charging Current (mA) 2
Current Measurement Error 0.2% (Full Scale) ± 1 Digit
Working Method

Intermittent Use: 30 minutes at rated load

Operation at 1.1 times rated voltage: 10 minutes
