Single Phase DC Resistance Tester | High Precision Winding Resistance Measuring Instrument

Name: Single Phase DC Resistance Tester | High Precision Winding Resistance Measuring Instrument
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZG-60/5
Price: 7,970.00 USD
Availability: InStock

Product Details:

Place of Origin:	Xi'an, Shaanxi, China
Brand Name:	XZH TEST
Certification:	ISO,CE
Model Number:	XHZG-60/5

Detail Information

Place of Origin:

Xi'an, Shaanxi, China

Brand Name:

XZH TEST

Certification:

ISO,CE

Model Number:

XHZG-60/5

Structural Characteristics:

Compatible With Capacitive Load, Unlimited Capacitance Of Tested Objects

Altitude:

Below 1500m

Relative Humidity:

≤85% At 25℃ (no Condensation)

Temperature:

-10℃ ~ +40℃

Working Mode:

Intermittent Operation; 30 Mins Under Rated Load, 10 Mins Under 1.1 Times Rated Voltage

Parameter Value Output Voltage (kV) 60 Output Current (mA) 5 Output Power (W) 120 Voltage Measuremen:

≤0.2%

Highlight:

High Light

Highlight:

Single Phase DC Resistance Tester

High Precision Winding Resistance Meter

AC DC Hipot Tester with Warranty

Trading Information

Minimum Order Quantity:

1 unit

Price:

Negotiable

Packaging Details:

wooden packaging

Delivery Time:

8-10 days

Payment Terms:

T/T

Supply Ability:

2000units/year

Product Description

Product Overview

XHZG series DC high voltage generator is professionally developed and manufactured for power industry. It is used to conduct DC withstand voltage test and DC leakage current test on various high-voltage electrical equipment including zinc oxide surge arresters, power cables, transformers, circuit breakers and generators. It serves as core special equipment for insulation detection and preventive tests of high-voltage power facilities.

Performance Features

Adopts intermediate frequency voltage doubling circuit, combined with PWM pulse width modulation technology and high-power IGBT components, ensuring high efficiency and strong performance.
Built-in wide-range voltage feedback control system delivers excellent output voltage stability with ripple factor ≤1%.
Supports full-range smooth voltage regulation. Measuring accuracy ≤0.5% and voltage stability ≤1% guarantee accurate and reliable test data.
Equipped with dedicated voltage rising potentiometer for zero-start smooth boosting. The exclusive 0.75UDC1mA test button enables easy operation with control accuracy ≤1%.
DIP switch setting for overvoltage protection features intuitive parameter configuration and precise protection response. The setting error is only ±1%, greatly ensuring equipment operation safety.

Technical Parameters

Parameter	Value
Output Voltage (kV)	60
Output Current (mA)	5
Output Power (W)	120
Voltage Measurement Error	0.2% FS ±1 digit
Current Measurement Error	0.2% FS ±1 digit
Overvoltage Setting Error	Adopts AI-based overvoltage and overcurrent protection setting, error ≤0.2%
0.75 Switching Error	High-precision one-touch 0.75UDC-1mA button with accuracy ≤1.0%, ideal for zinc oxide arrester tests
Ripple Factor	≤0.2%
Working Mode	Intermittent operation; 30 mins under rated load, 10 mins under 1.1 times rated voltage
Working Environment	Temperature: -10℃ ~ +40℃; Relative Humidity: ≤85% at 25℃ (no condensation); Altitude: below 1500m
Structural Characteristics	Compatible with capacitive load, unlimited capacitance of tested objects

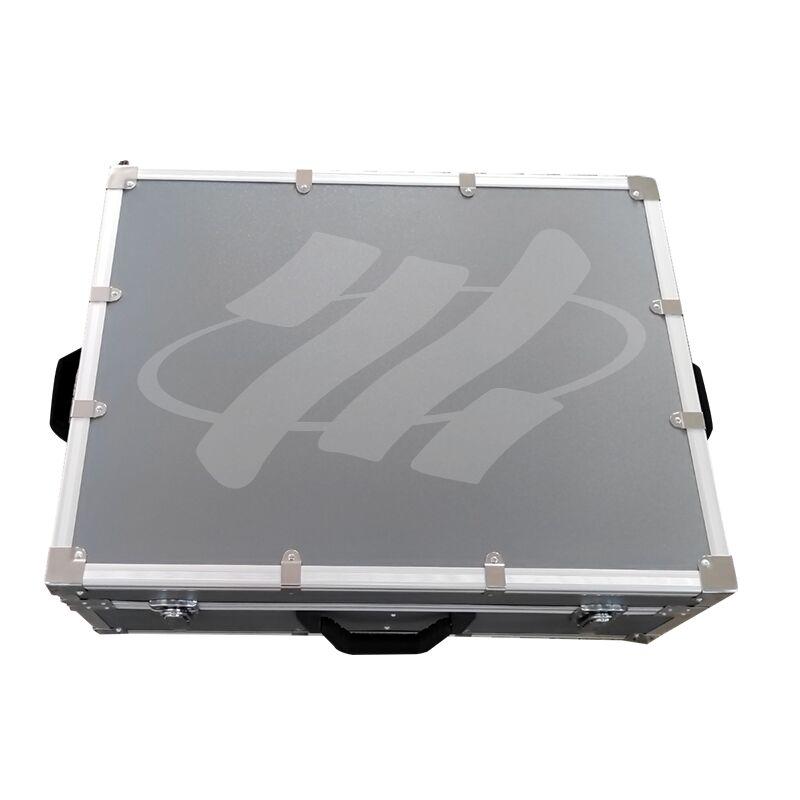

Single Phase DC Resistance Tester | High Precision Winding Resistance Measuring Instrument 0

Single Phase DC Resistance Tester | High Precision Winding Resistance Measuring Instrument 1

Single Phase DC Resistance Tester | High Precision Winding Resistance Measuring Instrument 2
