Cable Fault Pinpoint XHGX507X

Cable Fault Locator
December 29, 2025
Category Connection: Cable Fault Locator
Chat Now Contact Us
Tags:
#High Voltage Cable Fault Locator #High Voltage Pulse Generator #Portable Cable Fault Locator
Brief: From concept to demonstration, this video highlights the evolution and practical outcomes of the XHGX507X Cable Fault Pinpointer. You will see how this advanced instrument uses electromagnetic wave reflection and digital filtering to precisely locate and measure the depth of underground cable faults and metal objects in various field conditions.
Related Product Features:
  • Provides precise positioning and depth measurement for underground cable faults and breaks.
  • Accurately locates low ground resistance faults with professional-grade detection technology.
  • Features effective metal detection capabilities for underground applications.
  • Utilizes electromagnetic wave reflection and induction principles for reliable performance.
  • Incorporates digital filtering and wireless reception for enhanced signal clarity.
  • Supports multiple signal application methods: direct connection, coupling, and induction.
  • Enables path detection as one of its main functions for comprehensive cable analysis.
  • Maintains consistent operation regardless of the selected signal application method.
FAQs:
  • What is the working principle of the Cable Fault Pinpointer?
    The instrument operates based on electromagnetic wave reflection and electromagnetic induction during transmission, combined with digital filtering, wireless reception, and software control for precise detection.
  • What methods can be used to apply signals for path detection?
    Different signal application methods can be selected based on the environment, with priority given to direct connection, followed by coupling, and then induction methods.
  • Does the signal reception change with different application methods?
    No, signal reception and detection are unaffected by the signal application method; the operation remains consistent across direct connection, coupling, and induction.
  • What are the main applications of this underground cable fault locator?
    It is specifically designed for cable fault pinpointing, precise positioning of cable breaks, depth measurement of underground objects, and effective metal detection underground.
Related Videos

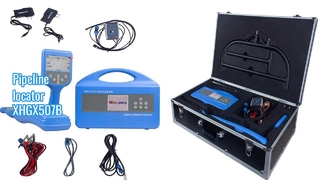

Pipeline locator XHGX507B 00:27
