Product description

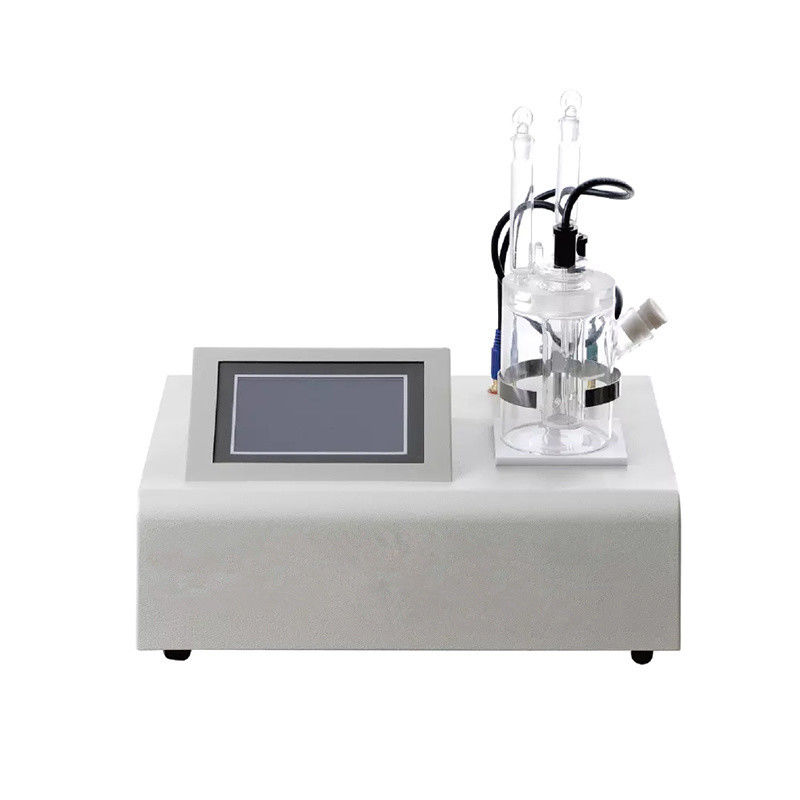

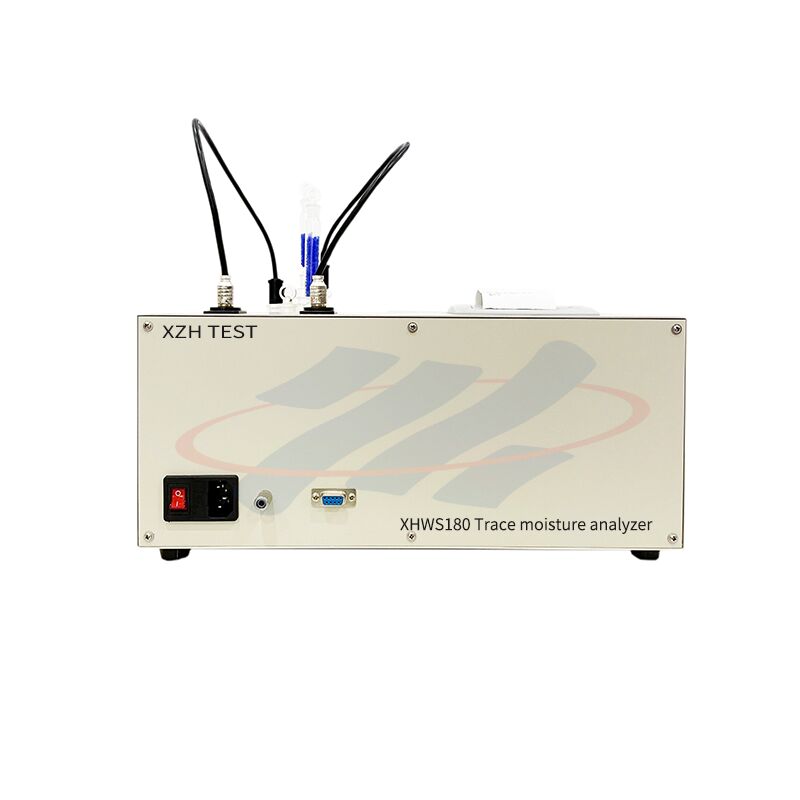

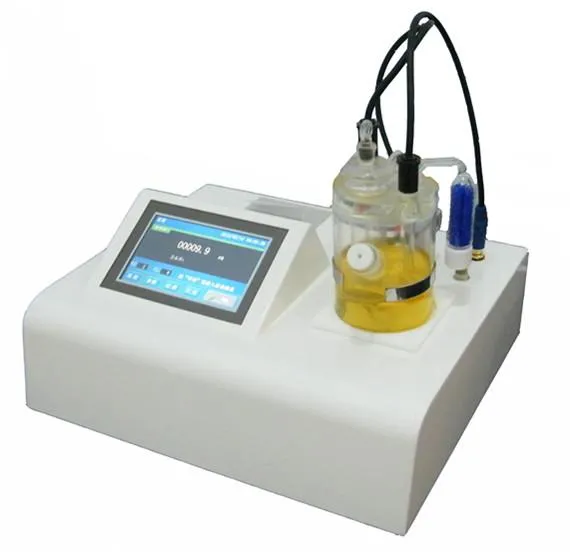

The XHWS180 trace moisture analyzer is the most reliable method for the determination of trace moisture in different substances by Karl Fischer Coulometric titration. The XHWS180 Trace Moisture Tester successfully applied this method, using the most advanced automatic control circuit, 32-bit embedded microprocessor as the main control core, embedded in the mini operating system. Therefore, the instrument works more reliably and is more convenient to use. Its analysis speed is fast, the operation is simple, the precision is high, and the automaticness is strong. Widely used in petroleum, chemical, electric power, railway, pesticide, pharmaceutical, environmental protection and other departments.
Main features
A 32-bit embedded microprocessor is used as the master core, which is embed to the mini operating system.
It adopts constant pressure detection, which is high precision, fast measurement speed, stable and reliable.
It uses colorful touch screen and full numeric keyboard, it's simpler to operate and convenient to calculate the data.
4 calculation formulas were include to meet customer needs.
Mini thermal printers have a time record for easier searching.
A new shape based on ergonomics.
Innovative and optimized operating software, which offer different touch experiences to user.
Main Technical Parameters
Titration method: electricity titration (Coulomb analysis)
Display: colorful LCD touch screen
Electrolysis speed: Maximum is 2200ug/s (0~400mA automatic control)
Test range: 3ug ~ 100mg
Sensitive valve: 0.1μg H2O
Accuracy: 10μg~1000μg±3μg, ≤0.3% (1mg)
Printer: Micro Thermal Printer
Power supply: 220V±10%, 50Hz
Power: < 40W
Working temperature: 5~40°C
Working humidity: ≤ 85%
Size: 340 *295 *155mm
Weight: about 5.5kg
