Cable Fault Locator
>

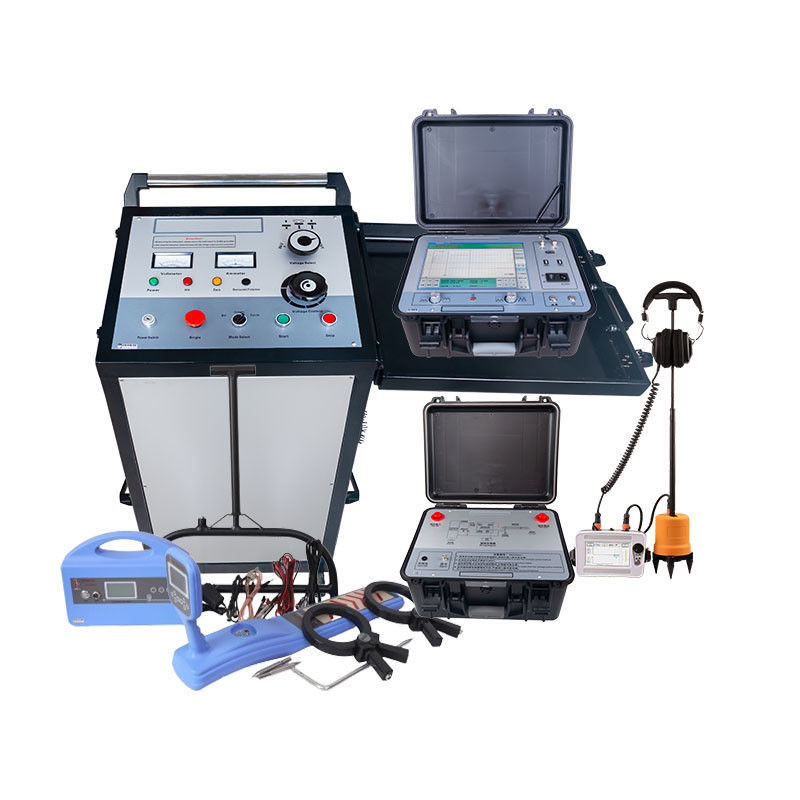

Portable Underground Cable Fault Locator Set High Voltage 8 / 16 / 32kV 2000j

Portable Underground Cable Fault Locator Set High Voltage 8 / 16 / 32kV 2000j

Product Details:
Certification: CE, ISO
Detail Information
Certification:
CE, ISO
Model NO.:
502+503C+507+535-4TS
Power:
Electricity
Customized:
Customized
Color:
Black
Transport Package:
Wooden Case Filled With Foam
Trademark:
XZH TEST
Origin:
China Xi′an
Supply Ability:
100 Pieces /Year
Customization:
Available
After-sales Service:
Warranty Certificate
Warranty:
12 Months
Highlight:

High Light

Highlight:

High Voltage Cable Fault Locator

,

Portable Cable Fault Locator

Trading Information
Payment Terms:
T/T
Product Description




Product Description


XZH TEST cable fault location system is designed for 35kV and below underground cable fault detection.
Portable Underground Cable Fault Locator Set High Voltage 8 / 16 / 32kV 2000j 0

★Cable fault pre-location: with the reflectometer XHGG502 based on the low-voltage impulse reflection method(TDR), ICE(impulse current test method), multiple impulse(ARC-multi-short)arc reflection method.

★cable path tracing, buried depth detection and live and unlive cable identification: XHGX507 multi-functional cable pipe locator is an all-digital locator with clear display and reliable positioning. Graphical operation instructions and sound indication, making it the easiest-to-use pipe locator available today. Powered by rechargeable battery, it can also display cable depth and current.
★Cable fault pinpoint location: XHDD503C uses acoustic-magnetic synchronization method, digital display waveforms of sound and magnetic, judge cable fault point by time difference and earphone, make detection more easier.
The portable cable fault location system is configured with the removable ARC cable fault locator with ultra-high brightness, large LCD screen 12.1" display with touch control, making the process of fault pre-location quick, easy and efficient.

High voltage 2048 J surge generator XHHV535-4TS is accompanied by a surge levels switch which allows to achieve the maximum surge impulse energy at 8, 16 and 32 kV.

It has features operator safety assurance systems and provides a reliable and comprehensive technical solution for low- and medium-voltage cables faults.

XHGG502 ARC cable fault pre-locator For cable fault rough distance test , test method: low voltage pulse, ICE, ARC(multi-shot), DECAY, ARC(single-shot)
XHDD503C Digital cable fault pinpointer For precise location of cable fault point
XHGX507 Comprehensive cable fault tester detect cable path, buried depth, identify cables, locate low voltage to ground cable fault
XHHV535-4TS High voltage pulse generator discharge during cable fault location/cable thumping
