Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
  • Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
  • Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
  • Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
  • Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
  • Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
  • Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator
  • Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator

Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator

Product Details:
Place of Origin: Xi'an, Shaanxi, China
Brand Name: XZH TEST
Certification: CE, ISO
Model Number: XHDD503E
Detail Information
Place of Origin:
Xi'an, Shaanxi, China
Brand Name:
XZH TEST
Certification:
CE, ISO
Model Number:
XHDD503E
Model NO.:
XHDD503E
Usage:
Network Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
Power:
Electricity
Customized:
Customized
Color:
Black
Filter:
200Hz-1600Hz Optional
Output Gain:
16 Levels (0~112dB)
Acoustic-Magnetic Positioning Accuracy:
Less Than 0.2m
Step Voltage Positioning Accuracy:
Less Than 0.5m
Path Identification Accuracy:
Less Than 0.5m
Transport Package:
Wooden Case
Trademark:
XZH TEST
Origin:
China
HS Code:
9031809090
Supply Ability:
2000PCS/Year
Customization:
Available
After-sales Service:
Warranty Certificate
Warranty:
12 Months
Highlight:

High Light

Highlight:

Electricity Cable Fault Pinpointer

,

Underground Cable Fault Pinpointer

Trading Information
Minimum Order Quantity:
1 unit
Packaging Details:
wooden case
Delivery Time:
5-8 days
Payment Terms:
T/T
Product Description

Product Description


Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator
Description
The cable fault locator uses the principles of vibration pickup and electromagnetic induction to determine the specific location of the cable fault point. A high-voltage pulse generator is used to cause flash over discharge at the fault point. Physical phenomena such as vibration waves, sound waves, and electromagnetic waves generated by the flash over discharge at the fault point are picked up by a special probe of the pointing instrument, amplified, processed, displayed, and output by the cable fault pointing instrument. The precise location of the fault point is determined by the tester's hearing and vision. That is, the task of accurately locating the cable fault point "directly above the cable and within the range of rough measurement" is completed.

This fixed-point instrument is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires made of various materials with different cross-sections and media, as well as high-resistance leakage and high-resistance flash over fault.

Product features
1. 5-inch touch-high brightness LCD ensures visibility under sunlight.
2. It has 4 test modes: standard, enhanced, noise reduction, and customized.
3. It has 4 positioning functions: acoustic-magnetic synchronization, pure acoustic, pure magnetic, and step voltage.
4. It has background noise reduction technology and can choose from a variety of filtering methods.
5. Equipped with BNR and mute functions.
4. It has path deviation indication.
5. Equipped with multi-layer physical isolation signal sensors, waterproof grade IP65.
6. Built-in large-capacity lithium battery, long standby time, equipped with fast charger.
7. Small and lightweight, easy to operate, and simple human-machine interface.

Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator



Technical specification
Filter parameters lAll-pass: 100Hz~1600Hz.
lLow pass: 100Hz~300Hz.
lQualcomm: 160Hz~1600Hz.
lBandpass: 200Hz~600Hz.
Channel gain: 8 levels adjustable.
Magnetic channel gain: 8 levels adjustable.
Step voltage gain: 8 levels adjustable.
Output gain: 16 levels (0~112db)
Output impedance: 350Ω
Acoustomagnetic positioning accuracy: ≤0.1m.
Step voltage positioning accuracy: ≤ 0.5m.
Path identification accuracy: ≤ 0.5m.
It has BNR background noise reduction and mute noise reduction functions.
Display control method: 5-inch high-brightness touch screen control.
Power supply: 4*18650 standard lithium batteries.
Standby time: more than 8 hours.
Volume: 428L×350W×230H
Overall Weight: 7kg.
Ambient temperature: -25~65ºC; Relative humidity: ≤90%.


Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator
Working principle
1. Acousto-magnetic synchronization method:
Acousto-magnetic synchronization method is a very accurate and unique method for precise fault location. Its principle is based on the traditional acoustic point determination method and adds the detection and application of electromagnetic signals.
When the high-voltage generator performs impact discharge on the faulty cable, the sound generated by the discharge at the fault point is transmitted to the ground. The sound signal is picked up by a highly sensitive probe. After amplification, a "pop" sound can be heard by listening with headphones.
The built-in probe of the probe receives the magnetic field signal in real time, and uses the principle that the propagation speed of the magnetic field is much higher than the propagation speed of sound to determine the distance of the fault point by detecting the time difference between the electromagnetic signal and the sound signal. Keep moving the sensor position to find the point with the smallest acoustic-magnetic time difference, then the exact location of the fault point will be below it.
Traditional acoustic measurement legal point instruments generally only use earphones to monitor, or are supplemented by the swing of the meter pointer to identify the discharge sound at the fault point. Since the discharge sound disappears in a blink of an eye and is not much different from the ambient noise, it often brings great difficulties to operators who are not very experienced. The acoustic-magnetic synchronization method effectively avoids the above problems of the traditional acoustic measurement method.

2. Pure sound method:
The pure sound method consists of an acoustic vibration sensor, a signal amplifier, a filter circuit, a sampling unit, a processor, a display unit, a power amplifier unit, headphones, etc.
The pure sound method is mainly used to measure high resistance and flashover faults. Its main principle is to use a high-voltage source to apply impulse voltage to the fault cable to cause discharge breakdown at the fault point, and then use the sound generated during the discharge to accurately locate the fault. The acoustic vibration sensor converts the acoustic signal into an electrical signal, which is amplified and filtered by a signal amplifier and filter circuit. Finally, it is restored to sound through headphones, or the intensity of the sound is displayed. The place with the greatest sound intensity is the fault point.

3. Pure magnetic method:
The pure magnetic method can determine the cable path and the precise location of the cable fault point. Its main principle is to use a high-voltage source to apply impulse voltage to the faulty cable, use an induction coil to pick up the pulse signal, and judge whether it deviates from the cable through the characteristics of the pulse signal. When the characteristics of the picked-up pulse signals deviate, it is determined as a fault point.

4. A-frame method:
If a ground fault occurs in a buried cable, we can use the potential difference method to find the fault point. The method is to add a test voltage between the test point of the faulty cable and the ground, then a distributed electric field concentric with the entry point will be formed around the entry point of the cable. There is no potential difference between any points with the same radius in this electric field, but there is a potential difference between any two points with different radii (points A and B in the figure), and when the distance between the two points is fixed, the distance between the two points is The closer the object is, the stronger the potential difference is.
Using this feature, we can move points A and B gradually closer to the center point. When the fault point is exactly between points A and B, the potential difference becomes zero. If it continues to move beyond the fault point, the polarity of the potential difference will be reversed, so that the grounding point can be accurately determined by moving back and forth.

Instrument layout and instructions

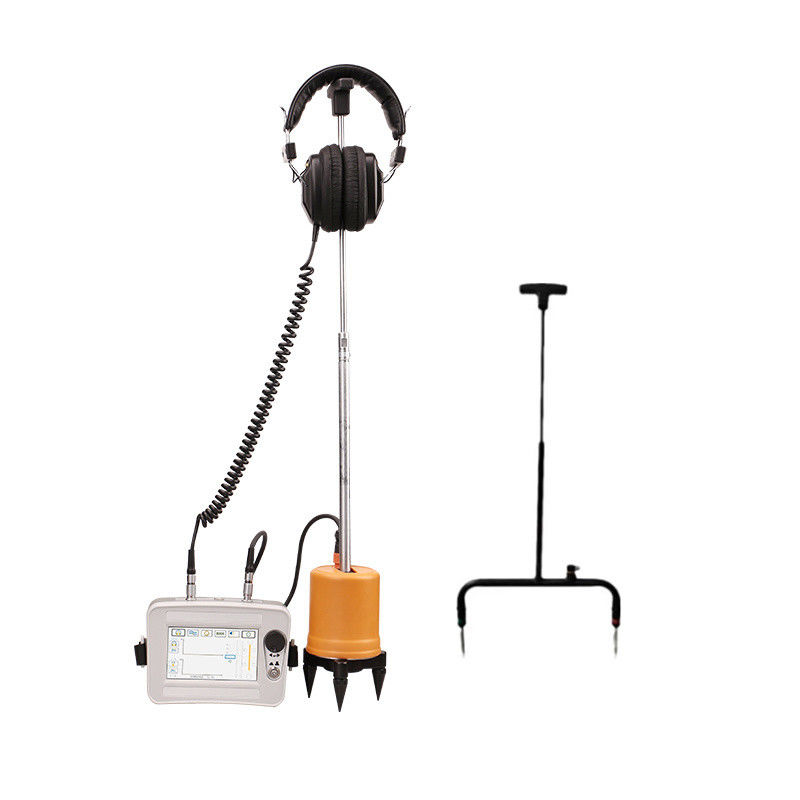

Composition of the instrument
1. Cable fault locator: accurately locate cable fault points within the rough measurement range.
2. Probe: including probe, probe, three claws, and connecting rod, connected to the input channel to receive signals.
3. Wear headphones; connect the input channel of the pointing instrument (feedback of the output signal).
4.7-core signal line: connecting cable between the pointing instrument and the probe (connecting the pointing instrument and the probe).
5. Charger: Connect to the charging socket of the instrument for charging.
6.A frame: used when testing using the step voltage method.
7. A-frame connection cable: cable fault locator and A-frame connection cable.
8. Ground pin: A matching accessory for the A-frame.


Packing list

Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator

Once the A-frame is connected, it will automatically enter the test interface as shown on the right.


Notice that at the bottom of frame A there are arrows, red and green, with red at the front and green at the back. This means that red indicates the end of the cable and green indicates the beginning of the cable.

Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator
Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator


Slowly move the A-frame along the cable burial path towards the end of the cable and observe the changes in the red and green bar graphs on the test screen. This reflects a change in the direction of the current.

At a great distance from the point of damage, the red and green bars on the screen appear slightly irregular and small.
When you get close to the fault point, for example about 5 meters from the fault point, you will notice that the red bar graph becomes very large, as shown in the image above on the left.
When you are directly above the fault point or approximately 1-2 meters in front of and behind the fault point, you will notice that the red and green bar graphs become very small and appear on the screen as shown in the image on the right above.
Once you pass the fault point, for example about 5 meters from the fault point, you will notice that the green bar graph becomes very large.

This way, by searching patiently, you can find the location of the fault.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Onsite testing

Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator
Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator





Welcome you contact us for more information and service.
Manufacturer of underground cable fault detection equipment
Since its inception in 2013, our company has grown to become one of the largest manufacturer of underground cable fault detection equipment in China. An ISO 9001 and CE certified company, we produces a broad range of:
TDR cable fault pre-locators
cable fault pin point locators
cable and pipe locators
high voltage pulse generators
cable identifiers
cable spikers
DC high voltage power supply
cable hi-pot testers
cable fault test vehicles


What we can do
We have the ability to innovate new products and technologies.
We can provide complete system solutions for your project.
We provide online and offline practical and theoretical training.
We provide instrument repair and calibration.


Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator


Company Profile



Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator



Electricity Cable Fault Pinpointer A Frame Power Underground Cable Fault Locator 10

Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator
Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator


Xhdd503e Xzh New High Quality Digiphone a Frame Power Underground Cable Fault Locator



FAQ



1. Are you a trading company or a manufacturer?

We are a professional manufacturer with more than 10 years of experience. We can strictly control the quality of parts and finished products.



2. What is the delivery time and inventory?

If our best-selling products are in stock, it will be 5-8 working days for shipment. But for mass production and customized production, the time will take 2-4 weeks.



3. What are your payment terms?

Payment ≤ USD 2000, 100% T/T prepayment. Orders over USD 2000 can be negotiated.



4. How long is your product warranty?

We provide 1 year warranty for the equipment.



5. How do you ensure quality?

The product links include R&D, manufacturing, commissioning and technical support, following strict and scientific management principles. Therefore, we can support strong production and R&D capabilities, and can produce high-quality products at competitive prices to meet customers' high requirements.



6. What support can I get?

We will provide training support, marketing support, technical support and supply chain support. You can contact us for more information.



7. Where is your factory? Can I visit your factory?

We are located in Xi'an, Shaanxi, China. We are close to Xi'an Xianyang International Airport, which is about 2 and half hours by plane from Shanghai and Guangzhou. All customers from all over the world are welcome to visit us.



8. How to become your dealer?

Every company interested in power system instruments can contact us without hesitation, including website letters, emails, telephones, etc. We will contact you quickly according to your company information and cooperation intentions.
