| Place of Origin: | Xi'an, Shaanxi, China |
| Brand Name: | XZH TEST |
| Certification: | CE, ISO |
| Model Number: | XHJB634 |

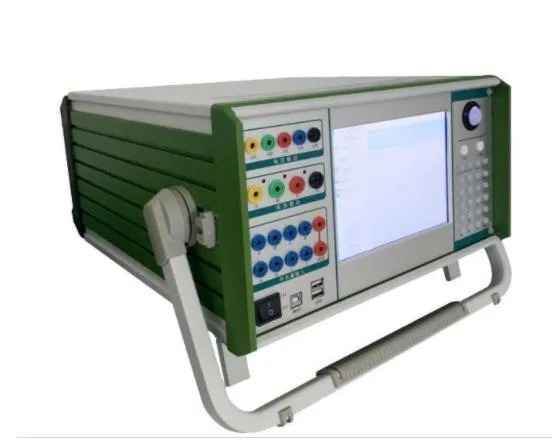

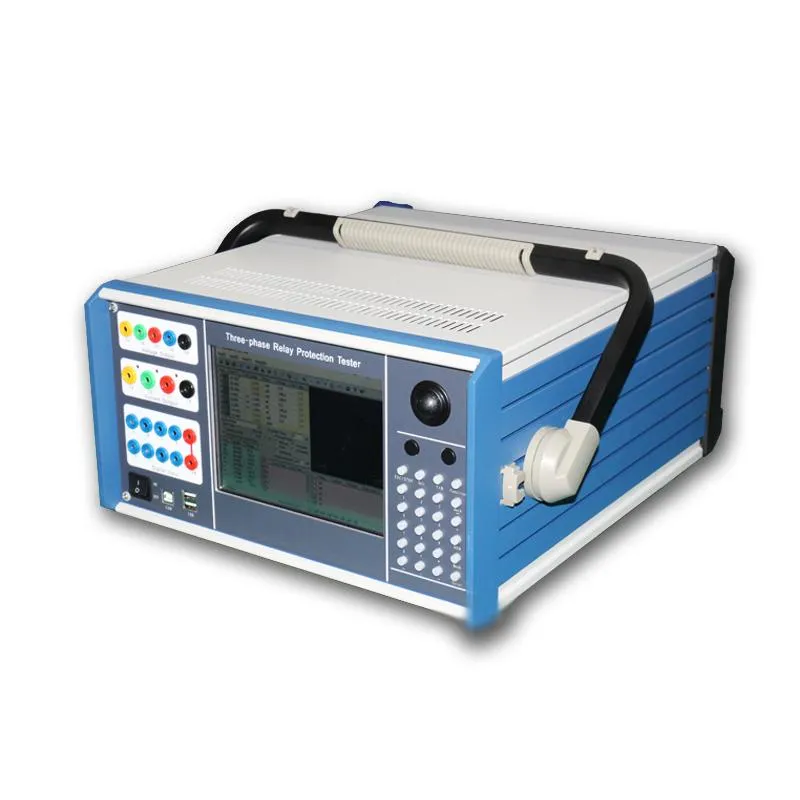

3*40A 4*120V PC Relay Protection Tester with Customization and AC 220V±10% Power Supply
XHJB634 microcomputer relay protection calibrator is a new type of miniaturized microcomputer relay protection tester fully realized by modern advanced microelectronic technology.
Your logo can be put on the panel of the equipment.Each equipment got a series number.
Output up to 4-phase voltage 3-phase current
1.AC/DC Test
2.The state series
3.Harmonic Superposition Test
4.High-Low Frequency Test
5.Power Direction & Impedance Test
6.Synchronization Test
7.Full Group Test:the static simulation test of relay protection tester
8.Distance & Zero Sequence Protection
9.Characteristic of Impedance
10.Differential Protection
11.Differential Harmonic
12.Comprehensive Test of Line Protection of 6-35 KV Microcomputer
Main technical parameters of the tester:
| Phase current output (effective value) | 0~40A, |
| Output Precision | 0.2 degree |
| 3 phase parallel current output (effective value) | 0~120A |
| A Long-time Phase current | 10A |
| Maximum output power of Phase current | 450VA |
| Maximum output power of 3 parallel current | 900VA |
| Maximum Permitted work time of 3 parallel curren | 10S |
| Frequency range ( fundamental) | 20~1000Hz |
| Harmonic time | 2~20 |
DC current output
| Current output | 0~±10A / phase, 0~±30A / 3 parallel |
| Output Precision | 0.5 degree |
AC voltage output
| Phase voltage output (effective value) | 0~120V |
| Output Precision | 0.2 degree |
| Line voltage output (effective value) | 0~240V |
| Phase voltage / Line phase output power | 80VA / 100VA |
| Frequency range (fundamental) | 20~1000Hz |
| Harmonic time | 1~20 |
DC voltage output
| Phase voltage output range | 0~±160V |
| Output Precision | 0.5 degree |
| Line voltage output range | 0~±320V |
| Phase voltage / Line phase output power | 70VA / 140VA |
10 path digital input and 8 path digital output
| Time measuring range | 0.1ms ~ 9999s |
| accuracy of measurement | <0.1ms |
| Volume & weight | 400×360×160mm³ ,15kg |
Company profile
XZH TEST is a professional cable fault detection equipment manufacturer. We are a young team. Our development philosophy is humanized management, intelligent cloud-based products, and internationalized operations. Our development mission is to make electrical equipment free from undetectable failures.
Since its inception in 2013, our company has grown to become one of the largest manufacturer of underground cable fault detection equipment in China. An ISO 9001 and CE certified company, we produces a broad range of testing equipment.
What we can do
We have the ability to innovate new products and technologies.
We can provide complete system solutions for your project.
We provide online and offline practical and theoretical training.
We provide instrument repair and calibration.
